Description
Contains
817275A2 Application
817275A1 Application
-30%

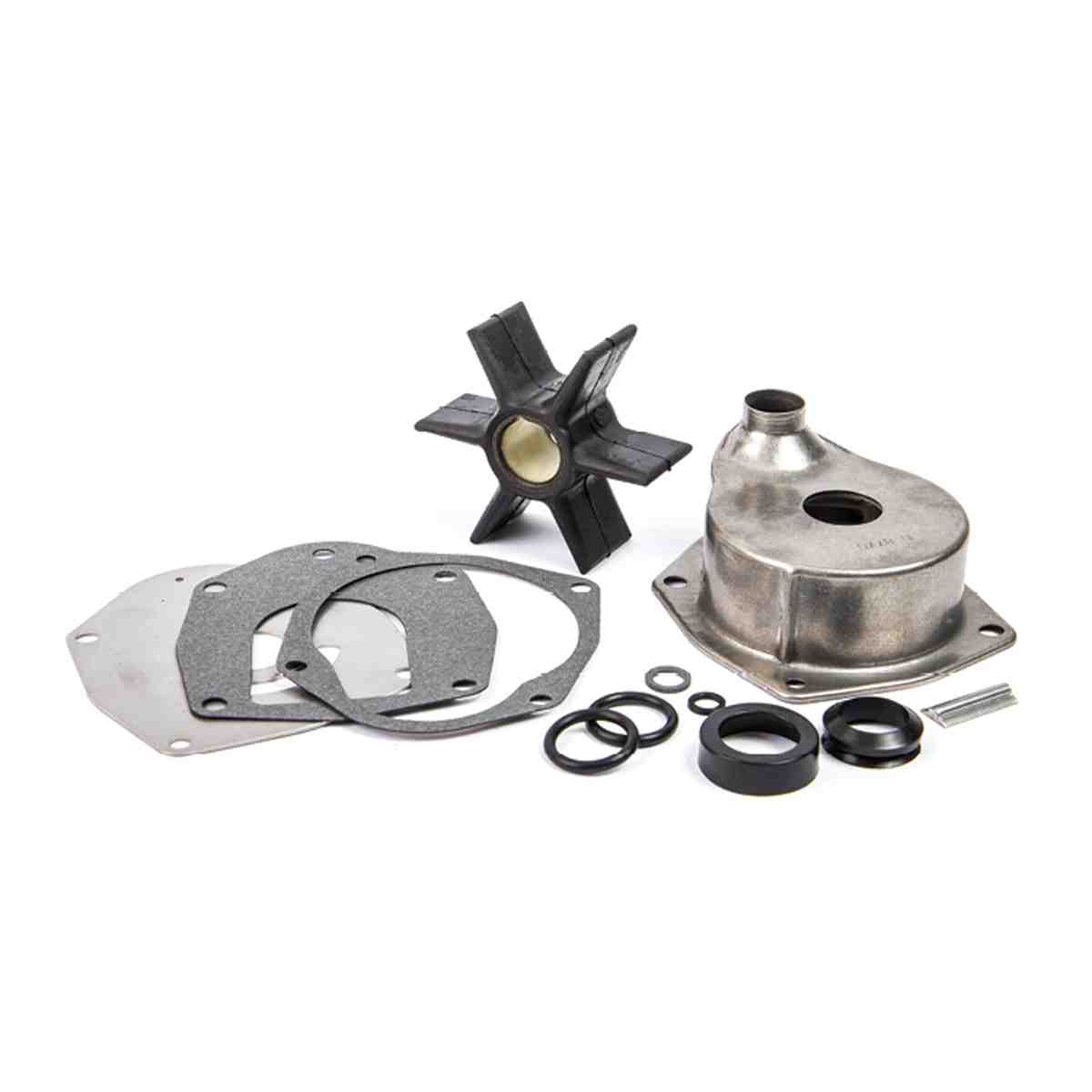

Sierra® Water Pump Kit- Mercury®/Mariner®
Original price was: $199.90.$140.91Current price is: $140.91.
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Description | O.E # | Qty |
|---|---|---|---|
| NSS | Water Pump Housing | — | 1 |
| S18-3056 | Impeller | 47-430262 | 1 |
| S18-2599 | Face Seal & Tool | 26-816575A2 | 1 |
| S18-3122 | Impeller Plate | 817276 | 1 |
| HP | Beg. S/N | End S/N |
|---|---|---|
| 40 (4 stroke) (4 cyl.) Bigfoot | OT228405 | & UP |
| 50 (4 stroke) 935cc Big Foot | OG231123 | OT178499 |
| 50 (4 stroke) 996cc Big Foot | OT178500 | & UP |
| 60 (3 cyl.) Bigfoot | OD000750 | & UP |
| 60 (4 stroke) Bigfoot | OT178500 | & UP |
| 65 Jet | OC283222 | & UP |
| 70 (3 cyl.) | OA996142 | & UP |
| 75 (3 cyl.) | OC222000 | & UP |
| 75 (4 stroke) | OG960500 | & UP |
| 80 (3 cyl.) | OA996142 | & UP |
| 80 Jet | OD283222 | & UP |
| 90 (3 cyl.) | OA996142 | & UP |
| 90 (4 stroke) | OG960500 | & UP |
| 100 (4 cyl.) | OB209468 | & UP |
| 115 (4 cyl.) | OC100000 | & UP |
| 125 (4 cyl.) | OD283222 | & UP |
| HP | Beg. S/N | End S/N |
|---|---|---|
| 45 (4 stroke) Bigfoot Bodensee | OG231123 | & UP |
| V-200 DFI (3.0L) | OG386496 | OG589999 |
| V-200 DFI (3.0L) | OG590000 | & UP |
| V-225 (3.0L) Carb & EFI | OD280813 | & UP |
| V-225 DFI | OG590000 | & UP |
| V-250 (3.0L) EFI | OG129222 | & UP |
| Model | Years | Seal Kit |
|---|---|---|
| 5.5 8 | 1955-67 | S18-2679 |
| 6 8 | 1955-67 | S18-2679 |
| 6 9 | 1967-68 | S18-2680 |
| 6 10 | 1968-79 | S18-2681 |
| 7.5 8 | 1955-67 | S18-2679 |
| 9.5 (M Suffix) | 1964-67 | S18-2682 |
| 9.5 (B Suffix) | 1967-73 | S18-2683 |
| 9.9/15 | 1974-Up | S18-2656 |
| 9.9/15 (4 Stroke) | 1974-Up | S18-2656 |
| 10 | 1958-67 | S18-2682 |
| 18 | 1958-73 | S18-2684 |
| 20 | 1966-73 | S18-2684 |
| 20 | 1979-82 | S18-2684 |
| 20 | 1985-Up | S18-2658 |
| 25 | 1955-59 | S18-2686 |
| 25 | 1968-78 | S18-2684 |
| 25 | 1979-82 | S18-2685 |
| 25 | 1984 | S18-2657 |
| 25 | 1985-Up | S18-2658 |
| 25 1 | 1990-95 | S18-2694 |
| 25 (Comm) | 1985-Up | S18-2657 |
| 28 | 1962-70 | S18-2686 |
| 28 | 1985-98 | S18-2657 |
| 30 | 1955-59 | S18-2686 |
| 30 | 1976-95 | S18-2658 |
| 33 | 1962-70 | S18-2686 |
| 35 | 1955-59 | S18-2686 |
| 35 | 1977-92 | S18-2658 |
| 40 (Manual Shift) | 1960-73 | S18-2686 |
| 40 (Elect. Shift) | 1962-70 | S18-2687 |
| 40 | 1976-88 | S18-2659 |
| 40 | 1989-Up | S18-2694 |
| 48 | 1976-88 | S18-2659 |
| 48 | 1989-96 | S18-2694 |
| 50 | 1971-74 | S18-2688 |
| 50 | 1976-88 | S18-2659 |
| 50 | 1989-Up | S18-2694 |
| 50 (3 cyl.) | 1995-Up | S18-2660 |
| 55 | 1968-69 | S18-2690 |
| 55 | 1976-88 | S18-2659 |
| 60 (Manual/Elect.) | 1960-68 | S18-2689 |
| 60 | 1970-71 | S18-2690 |
| 60 (2 cyl.) | 1976-88 | S18-2659 |
| 60 (3 cyl.) | 1978-Up | S18-2660 |
| 65 (Manual/Elect.) | 1960-68 | S18-2689 |
| 65 | 1978-Up | S18-2660 |
| 70 | 1978-Up | S18-2660 |
| 75 (Manual/Elect.) | 1960-68 | S18-2689 |
| 75 | 1978-91 | S18-2660 |
| 75 (Small Gearcase) | 1976-88 | S18-2659 |
| V-4 | 1978-84 | S18-2623 |
| 85 (Manual/Elect.) | 1968 | S18-2689 |
| 85 (Small Prop Shaft) | 1969-71 | S18-2690 |
| 85 (Large Prop Shaft) | 1971-72 | S18-2691 |
| 85 (V-4) | 1973-83 | S18-2692 |
| 85 | 1991-95 | S18-2623 |
| 88 | 1985-Up | S18-2623 |
| 90 (Elect.) | 1964-65 | S18-2689 |
| 90 (V-4) | 1973-83 | S18-2692 |
| 90 | 1985-Up | S18-2623 |
| 100 (Large Prop Shaft) | 1971-72 | S18-2691 |
| 100 (V-4) | 1973-83 | S18-2692 |
| 100 (Comm) | 1984-90 | S18-2623 |
| 100 (Comm) | 1991-95 | S18-2623 |
| 100 3 | 1991-92 | S18-2623 |
| 110 (V-4) | 1973-83 | S18-2692 |
| 110 | 1985-89 | S18-2623 |
| 115 (Small Prop Shaft) | 1969-71 | S18-2690 |
| 115 (V-4) | 1973-83 | S18-2692 |
| 115 | 1985-Up | S18-2623 |
| 120 | 1985 | S18-2623 |
| 120 | 1986-92 | S18-2623 |
| 120 | 1993 | S18-2623 |
| 125 (Large Prop Shaft) | 1971-72 | S18-2691 |
| 125 4 | 1991-92 | S18-2623 |
| 125 | 1993 | S18-2623 |
| 125 (Comm) | 1991-93 | S18-2623 |
| 135 (V-4) | 1973-83 | S18-2692 |
| 140 (V-4) | 1973-83 | S18-2692 |
| 140 | 1985 | S18-2623 |
| 140 5 | 1986-92 | S18-2623 |
| 140 6 | 1992-93 | S18-2623 |
| 140 1 | 1992-95 | S18-2623 |
| 150 (V-6) | 1978-86 | S18-2623 |
| 150 7 | 1991 | S18-2623 |
| 150 | 1991-95 | S18-2623 |
| 155 (Comm) | 1984-90 | S18-2623 |
| 155 (Comm) | 1991-93 | S18-2623 |
| 175 (V-6) | 1977-86 | S18-2623 |
| 175 2 | 1991 | S18-2623 |
| 175 7 | 1992 | S18-2623 |
| 175 | 1991-95 | S18-2623 |
| 185 | 1991-93 | S18-2623 |
| 200 (V-6) | 1976-86 | S18-2623 |
| 200 | 1991-95 | S18-2623 |
| 225 | 1991-95 | S18-2623 |
| 235 (V-6) | 1977-86 | S18-2623 |
| V-8 7 | 1985-91 | S18-2623 |
| 250 (V-8) | 1991-95 | S18-2623 |
| 300 (V-8) | 1991-95 | S18-2623 |
| OMC SEA DRIVE | ||
| 1.6L | 1985-90 | S18-2623 |
| 1.8L | 1987 | S18-2623 |
| 2.0L | 1988-90 | S18-2623 |
| 2.5L | 1984-85 | S18-2623 |
| 2.6L | 1984-86 | S18-2623 |
| 2.7L | 1987 | S18-2623 |
| 3.0L | 1988-90 | S18-2623 |
| 3.6L | 1987 | S18-2623 |
| 4.0L | 1989-90 | S18-2623 |
