Description
Cast 316 grade stainless steel fork and fork swivels. Welded nut pivot bolt. Drilled jaw pins for security tie wire. Not SWL rated for lifting purposes.
-31%

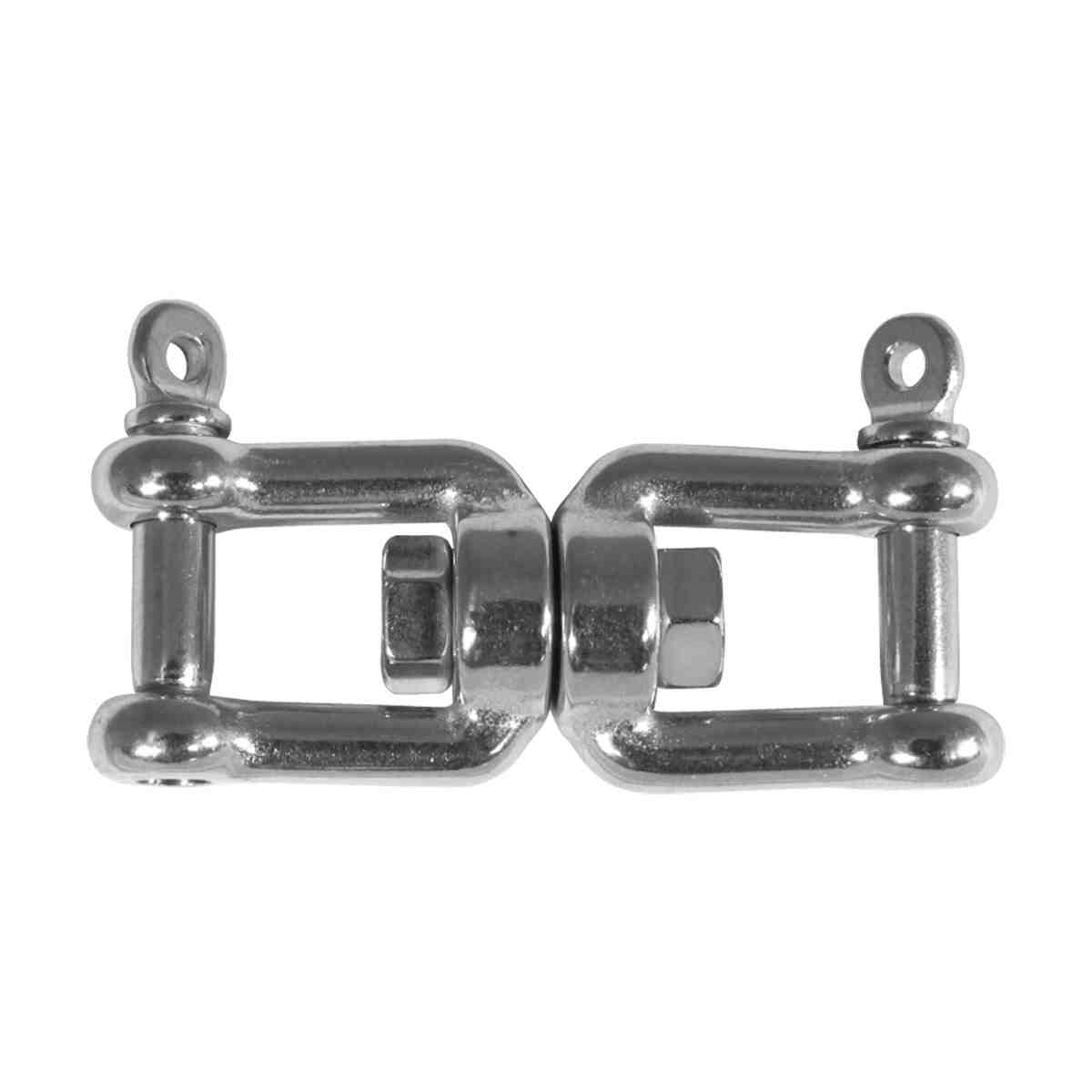

BLA Fork and Fork Swivels – Stainless Steel
Price range: $8.19 through $40.46
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | A mm | B mm | C mm | Pin Dia. mm | Break Load kg |
|---|---|---|---|---|---|
| 165494 | 64 | 12 | 11 | 6 | 1200 |
| 165496 | 87 | 16 | 16 | 8 | 1900 |
| 165498 | 112 | 20 | 21 | 10 | 3500 |
| 165500 | 152 | 26 | 26 | 12 | 5000 |
