Description
Swage threaded ends used extensively in balustrading, industrial applications and membrane structures. 316 grade stainless steel construction. Supplied with nut.
-32%

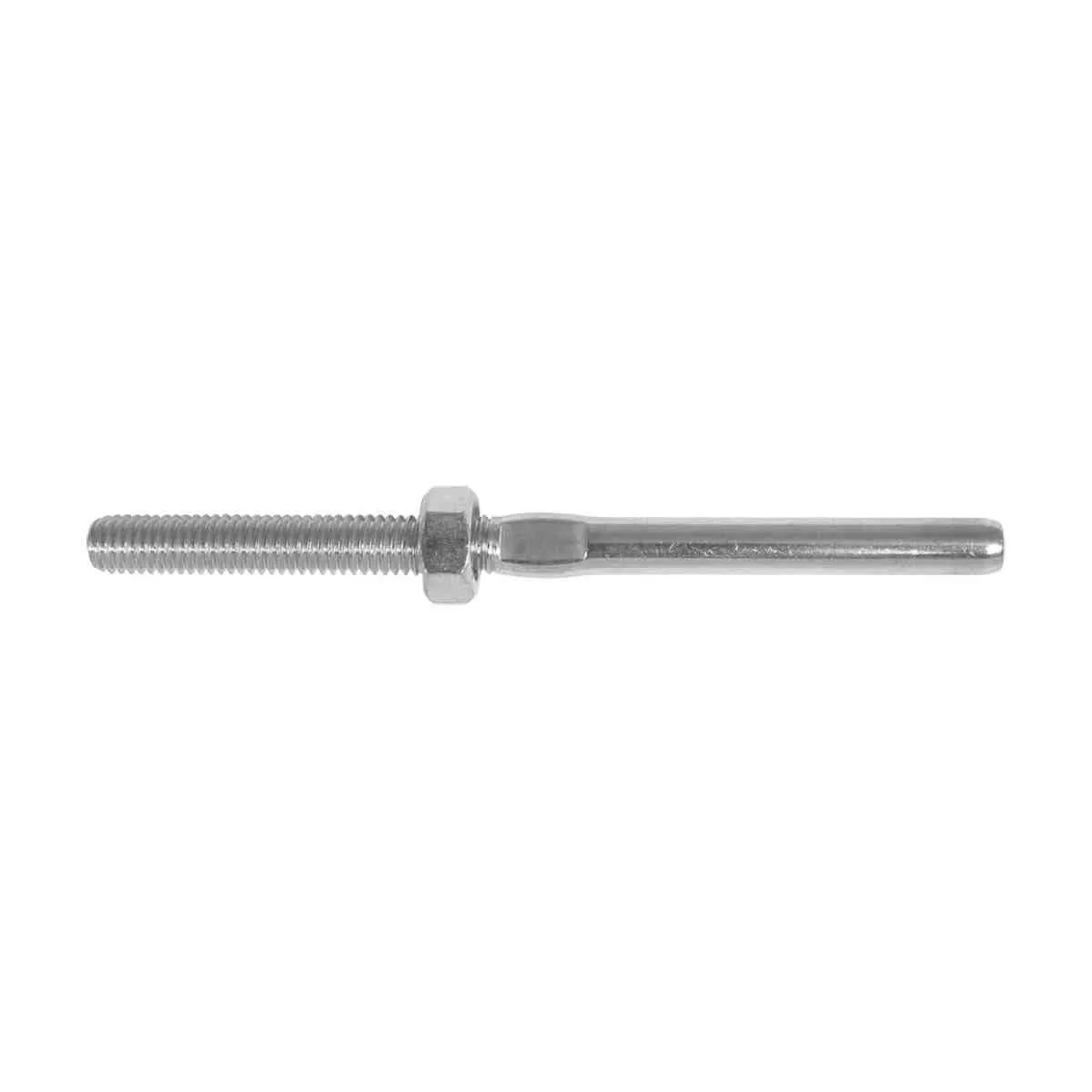

BLA Swage Threaded Terminals – Stainless Steel
Price range: $4.04 through $7.53
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Wire Dia. mm | Wire Dia. in | Thread | A mm | B mm |
|---|---|---|---|---|---|
| 162327 | 3 | – | M5 | 90 | 40 |
| 162328 | 3 | – | M6 | 98 | 48 |
| 162303 | – | 1/8 | M5 | 90 | 40 |
| 162304 | – | 1/8 | M6 | 98 | 48 |
| 162305 | 4 | 5/32 | M6 | 121 | 56 |
| 162309 | 4 | 5/32 | M8 | 116 | 54 |
| 162311 | 5 | 3/16 | M8 | 127 | 57 |
