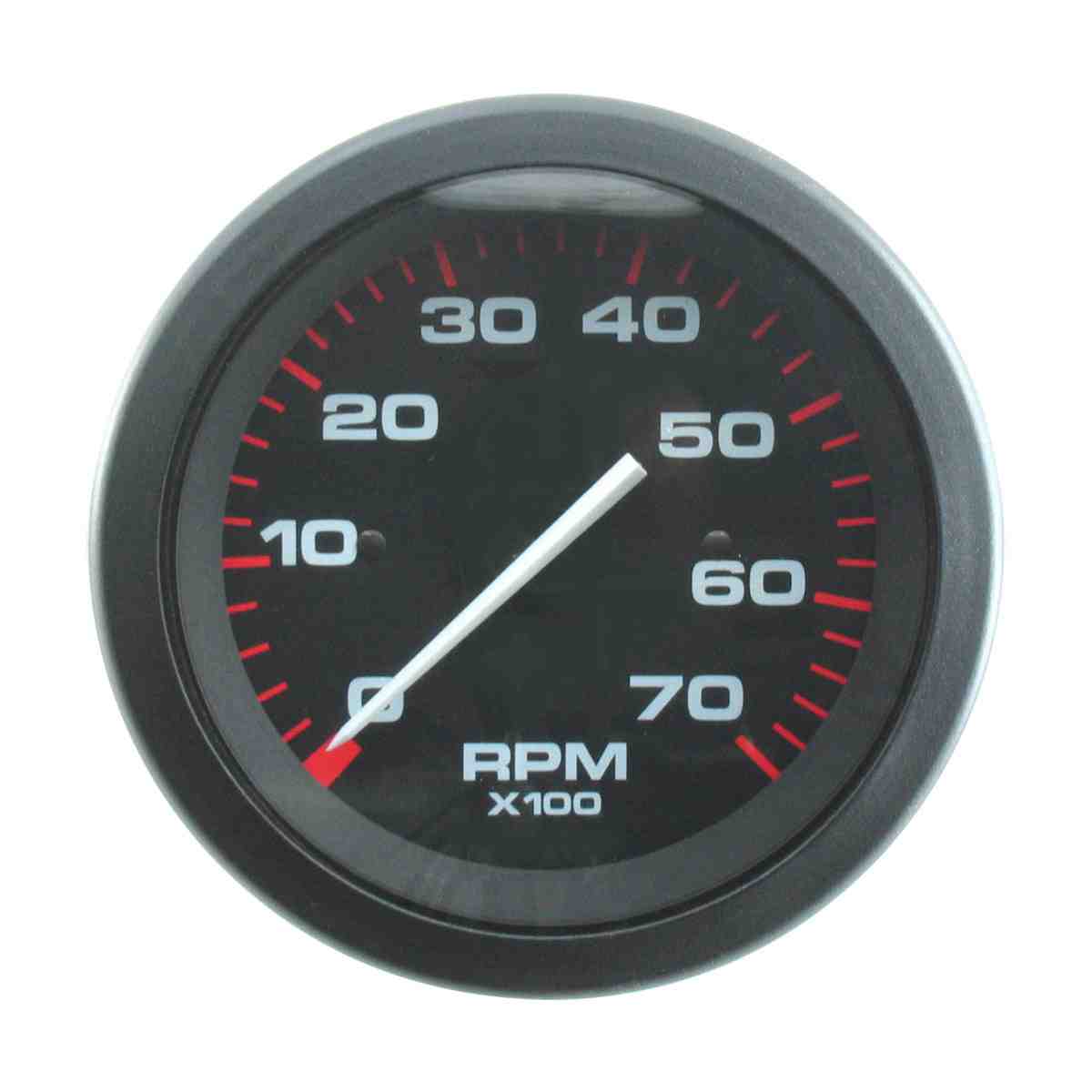

Veethree Electronics Black Amega Domed Gauges

Veethree Electronics Black Amega Domed Gauges

Price range: $70.58 through $200.78
SKU: G112278

Description

Features
• Very low profile black bezel follows the curve of the lens to eliminate any water ‘trapping’
• Red and white graphics on a black dial background
• Through dial and perimeter lighting is provided for night visibility
• Domed convex glass is scratch resistant
• Pointers are white with a black hub
• Shielded to prevent magnetic interference
• Silicone dampened
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396

Accessories
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb

Additional information

Variation:

112278 – TACHOMETER 7000RPM PETROL, 112282 – TACHOMETER 4000RPM DIESEL, 112284 – SPEEDOMETER KIT 35MPH, 112286 – SPEEDOMETER KIT 50MPH, 112288 – SPEEDOMETER KIT 65MPH, 112294 – WATER TEMPERATURE 120°-240°F, 112296 – WATER PRESSURE 0-40PSI, 112298 – OIL PRESSURE 0-80PSI, 112300 – OIL PRESSURE 0-100PSI, 112306 – HOURMETER, 112314 – VOLTMETER, 112318 – AMMETER -60-60AMP, 112322 – FUEL, 112326 – TRIM BRP, 112328 – TRIM MERC/MARINER/YAMAHA 2001

Dimensions
Weight0.29 kg
Dimensions15 × 19.9 × 10.9 cm
DimensionsA mmB mmC mmD mm
75mm Tacho96867013
75mm Speedometer96868213
50mm Electrical61536311
BLA CodeDescriptionFace Dia.mm*Sender Style
Tachometers:
112278Tacho 7000 RPM inboard & outboard75Coil & O/B alt
112282Tacho 4000 RPM diesel alternator75Motor alternator
Speedometer:
112284Speedo kit 35 MPH75G included
112286Speedo kit 50 MPH75G included
112288Speedo kit 65 MPH75G included
Kits include 20′ of pitot hose
Water:
112294Water temperature 120ºF – 240ºF50D
112296Water Pressure Kit 0 – 40 psi50
Oil pressure:
112298Oil pressure 0 – 80 PSI50C
112300Oil pressure 0 – 100 PSI50C
Hourmeter:
112306Hourmeter, 10,000 Hrs 10-32 volt50Not required
Voltmeter:
112314Voltmeter, 8 – 18 volt50Not required
Ammeter:
112318Ammeter 60 – 0 – 6050Not required
Fuel:
112322Fuel50F
Trim:
112326Evinrude®/Johnson® outboards50Engine manufacturer
112328Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on50Engine manufacturer
