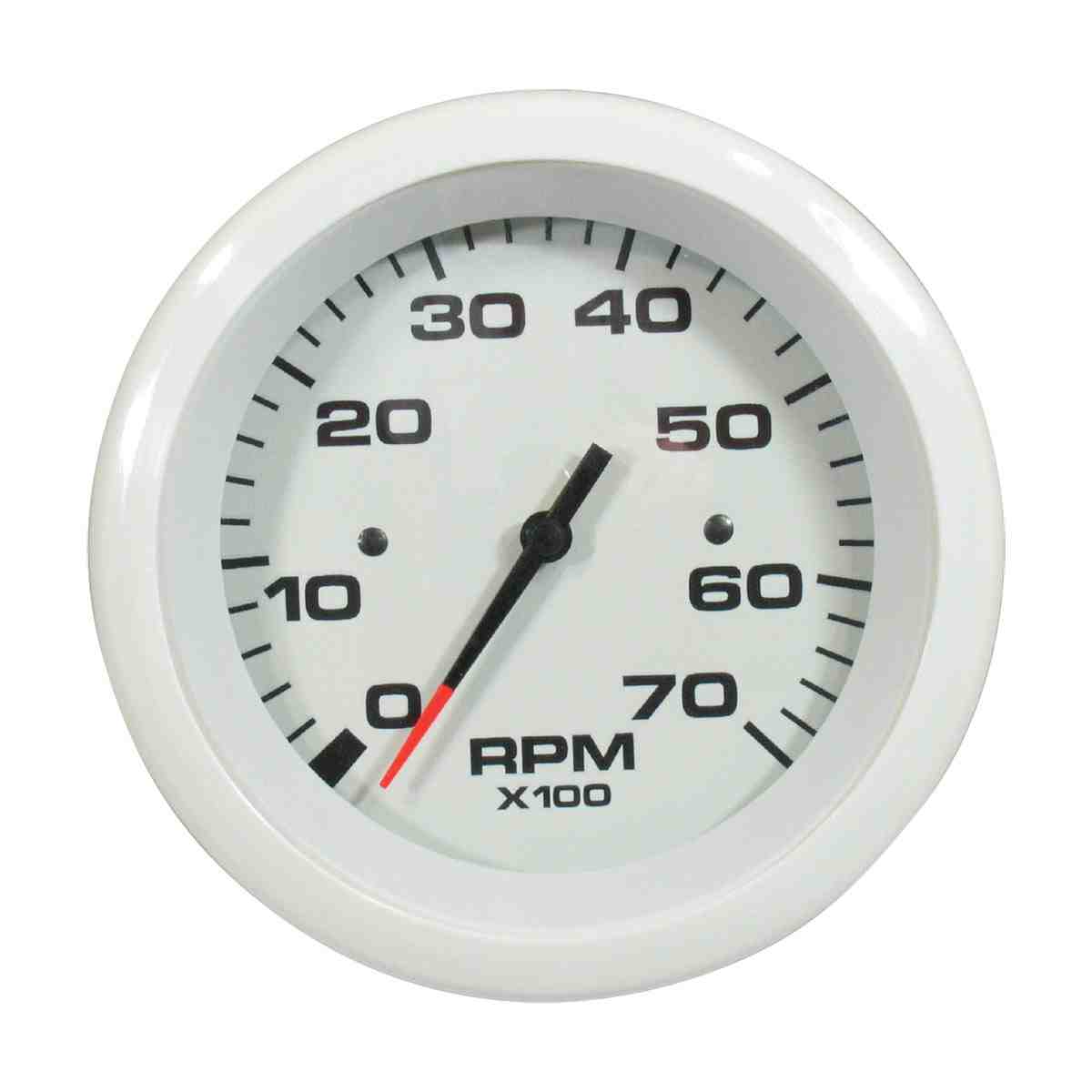

Veethree Electronics Arctic Gauges

Veethree Electronics Arctic Gauges

Price range: $71.55 through $223.45
SKU: G112096

Description

Veethree introduces the new range of Arctic instruments. Stylish white bezel design, black on white graphics, accurate and reliable, these tough instruments look good on a wide range of boats.

Features
• Arctic instruments are available for most outboards, stern drives and petrol powered inboards
• Domed glass design sheds water and resists scratching for long lasting appeal
• Enhanced illumination featuring through-dial and perimeter lighting for excellent readability at night
• Imperial and metric scales with ISO symbols where appropriate
• Easy to read flame tipped pointer
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
• Replaces former White Domed range
• Hourmeter 10 – 32 volt

Accessories
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb

Additional information

Variation:

112096 – TACHOMETER 7000RPM PETROL, 112098 – TACHOMETER 4000RPM DIESEL, 112106 – SPEEDOMETER KIT 65MPH, 112108 – SPEEDOMETER KIT 85MPH, 112112 – WATER TEMPERATURE 120°-240°F, 112120 – OIL PRESSURE 0-80PSI, 112122 – OIL PRESSURE 0-100PSI, 112126 – HOURMETER, 112130 – VOLTMETER, 112134 – AMMETER -60-60AMP, 112138 – FUEL, 112146 – TRIM MERC/MARINER/YAMAHA 2001

Dimensions
Weight0.29 kg
Dimensions15 × 20 × 11.3 cm
DimensionsA mmB mmC mmD mm
75mm Tacho96867013
75mm Speedometer96868213
50mm Electrical61536311
BLA CodeDescriptionFace Dia. mm*Sender Style
Tachometers:
112096Tacho 7000 RPM inboard & outboard75Coil and O/board alt
112098Tacho 4000 RPM diesel alternator75Motor Alternator
Speedometer:
112104Speedo kit 35 MPH75G included
112106Speedo kit 65 MPH75G included
112108Speedo kit 80 MPH75G included
Water temperature gauge:
112112Water temperature 120ºF – 240ºF50D
112116Water pressure gauge kit 0 – 40 psi50WP Included
Oil pressure:
112120Oil pressure 0 – 80 PSI50C
112122Oil pressure 0 – 100 PSI50C
Hourmeter:
112126Hourmeter, 10,000 Hrs 10 – 32 volt50Not required
Voltmeter:
112130Voltmeter, 8 – 18 volt50Not required
Ammeter:
112134Ammeter 60 – 0 – 6050Not required
Fuel:
112138Fuel50F
Trim:
112142Evinrude®/Johnson® outboards50Engine manufacturer
112146Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on50Engine manufacturer
