Description
Replaces 27-85653A87, 27-85653A79, 27-85653A32, 27-60476A75, 27-60476A74, 27-60476A73, 27-60476A72
Contains
-24%

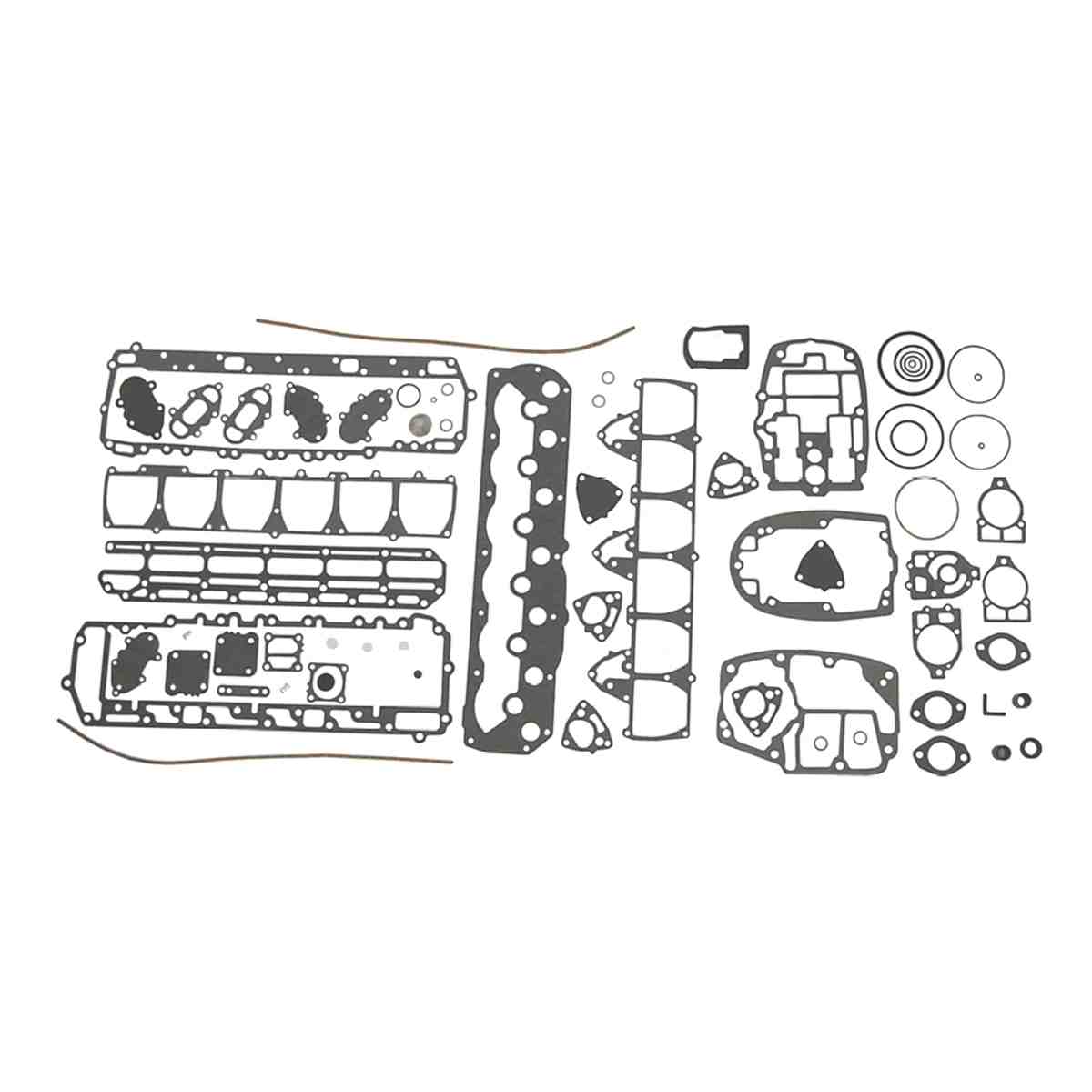

Sierra® Powerhead Gasket Set – Mercury®/Mariner®
Original price was: $269.90.$206.09Current price is: $206.09.
Back-order
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Description | O.E # | Qty |
|---|---|---|---|
| S18-7153 | O-Ring | 25-25439 | 1 |
| S18-7120 | O-Ring | 25-38933 | 1 |
| S18-3110 | Bushing | 26-38970 | 2 |
| S18-7164 | O-Ring | 25-33466 | 1 |
| S18-7167 | O-Ring | 25-47254 | 1 |
| S18-2802 | Carb. Flange Gasket | 27-48164-1 | 3 |
| S18-7413 | O-Ring | 25-62702 | 2 |
| S18-7161 | O-Ring | 25-32546 | 2 |
| S18-7173 | O-Ring | 25-30224 | 1 |
| S18-3110 | Grommet | 26-38970 | 1 |
| S18-7421 | O-Ring | 25-20415 | 1 |
| S18-7162 | O-Ring | 25-33145 | 1 |
| S18-7157 | O-Ring | 25-29976 | 1 |
| S18-2914 | Water Pump Gasket | 27-85608-1 | 1 |
| S18-2915 | Water Pump Gasket | 27-85609-1 | 1 |
| S18-2801 | Water Pump Gasket | 27-32438 | 1 |
| S18-2826 | Water Pump Base to Gear Housing Gasket | 27-85610-1 | 1 |
| S18-0912 | Drive Shaft Hsg. Gasket | 27-66102-1 | 1 |
| S18-2573 | Water Jacket Cover Gasket | 27-72142-1 | 1 |
| S18-2574 | Exhaust Cover Gasket | 27-85495-2 | 1 |
| S18-0946 | Transfer Port Gasket | 27-85653-1 | 1 |
| S18-2513 | Crankcase to Cyl. Block Gasket | 27-53862 | 2 |
| S18-2807 | Block Cover Gasket | 27-98185 | 1 |
| S18-2835 | Powerhead Gasket | 27-69238-1 | 1 |
| S18-2839 | Exhaust Cover | 27-85497-2 | 1 |
| S18-7807 | Fuel Pump Kit | 55278A1 | 2 |
| S18-7813 | Fuel Pump Kit | 89031A3 | 1 |
| S18-7426 | O-Ring | 25-30271 | 1 |
| Model | Cyl. | Beg. S/N | End S/N | Gasket Set | Head O-Rings | Head Gasket | Head Seals |
|---|---|---|---|---|---|---|---|
| 4/5/6 (4 stroke) | 1 CYL | R000001 | & UP | — | — | S18-3844 | — |
| 8 FOUR STROKE (232cc) | H000058 | H017349 | — | — | S18-3827 | — | |
| 8 FOUR STROKE (232cc) | G760300 | T178499 | — | — | S18-3827 | — | |
| 9.9 FOUR STROKE (232cc) | H000058 | H017349 | — | — | S18-3827 | — | |
| 18 (18XD) | 2 | 6416713 | 6443972 | S18-4334 | — | — | — |
| 20 (20,20XD, 200) | 2 | 6443973 | OT800999 | S18-4334 | — | — | — |
| 20 JET | 2 | G044027 | & UP | S18-4334 | — | — | — |
| 30 JET (40 HP) | 4 CYL | C159200 | & UP | S18-4325 | — | — | — |
| 35 | 2 CYL | 6445653 | B110788 | S18-4355 | — | — | — |
| 40402 | 2 CYL | 3336258 | G053313 | S18-4355 | — | — | — |
| 40 | 4 CYL | C159200 | & UP | S18-4325 | — | — | — |
| 40 FOUR STROKE (232cc) | 3 CYL | G231123 | T178499 | — | — | S18-3845 | — |
| 45 | 4 CYL | 5531630 | 0B110788 | S18-4353 | — | — | — |
| 45 | 4 CYL | B110789 | & UP | S18-4325 | — | — | — |
| 45 Jet | 3 CYL | D000750 | & UP | S18-4337 | — | — | — |
| 45 FOUR STROKE (BODENSEE) | G231123 | T178499 | — | — | S18-3845 | — | |
| 50500 | 4 CYL | 2116318 | & UP | S18-4353 | — | — | — |
| 50, 60 | 4 CYL | 6428681 | B122929 | S18-4357 | — | — | — |
| 50 | 3 CYL | D000750 | OG589999 | S18-4337 | — | — | — |
| 50 | 3 CYL | B122930 | D000749 | S18-4326 | — | — | — |
| 50 FOUR STROKE | G231123 | T178499 | — | — | S18-3845 | — | |
| 55 | 3 CYL | 6428681 | B122929 | S18-4357 | — | — | — |
| 55 | 3 CYL | D000750 | & UP | S18-4337 | — | — | — |
| 65 (650) | 3 CYL | 3293184 | 4382056 | — | — | — | — |
| 65 (650) | 3 CYL | 4382057 | 4571651 | S18-4357 | — | — | — |
| 70 | 3 CYL | 4571652 | A996141 | S18-4357 | — | — | — |
| 70 | 3 CYL | A996142 | & UP | S18-4336 | — | — | — |
| 75 | 4 CYL | 6432901 | & UP | S18-4354 | — | — | — |
| 80 | 3 CYL | A996142 | & UP | S18-4336 | — | — | — |
| 80 Jet | 4 CYL | D283222 | & UP | S18-4340 | — | — | — |
| 80800 | 4 CYL | 2559001 | 3493912 | S18-4350 | — | — | — |
| 80800 | 4 CYL | 4831999 | 6432900 | S18-4354 | — | — | — |
| 85850 | 4 CYL | 3493913 | 4366801 | S18-4351 | — | — | — |
| 85850 | 4 CYL | 4366802 | 4831998 | S18-4354 | — | — | — |
| 90900 | 6 CYL | 4845301 | & UP | S18-4356 | — | — | — |
| 90 | 3 CYL | A996142 | & UP | S18-4336 | — | — | — |
| 100 | 4 CYL | B209468 | & UP | S18-4340 | — | — | — |
| 105 JET | 6 CYL | D082000 | & UP | S18-4359 | — | S18-3864 2 | — 6 |
| 115 | 4 CYL | C100000 | & UP | S18-4340 | — | — | — |
| 125 | 4 CYL | D283222 | & UP | S18-4340 | — | — | — |
| 140 (140, 1400) | 6 CYL | 3293234 | 3502805 | S18-4356 | — | — | — |
| 140 (140, 1450) | 6 CYL | 4865678 | & UP | S18-4356 | — | — | — |
| 140 (140, 1400) | 6 CYL | 4865678 | & UP | S18-4356 | — | — | — |
| 150 (1500) | 6 CYL | 3502806 | 5327622 | S18-4356 | — | — | — |
| V-135 | V-6 | A904646 | C239552 | S18-4317 | — | S18-3863 | — |
| V-135 | V-6 | C239553 | G960499 | S18-4359 | — | S18-3861 | — 6 |
| V-135 DFI | V-6 | G590000 | G960499 | S18-4338 | — | — | — 6 |
| 140 JET | V-6 | D082000 | G960499 | S18-4359 | — | S18-3864 | — 6 |
| V-150 (150, 1500) | V-6 | 4868998 | 6042945 | S18-4315 | — | — | — |
| V-150 | V-6 | 6042946 | C239552 | S18-4317 | — | S18-3863 | — |
| V-150 | V-6 | C239553 | G960499 | S18-4359 | — | S18-3861 | — 6 |
| V-150 | V-6 | G960500 | & UP | S18-4338 | — | — | — 9 |
| V-150 (XR/MAGNUM II) | V-6 | B242885 | C239552 | S18-4319 | — | — | — |
| V-150 XR4 | V-6 | C239553 | D081999 | S18-4359 | — | S18-3871 | — 6 |
| V-150 (XR6/MAGNUM III) | V-6 | D082000 | G960499 | S18-4359 | — | S18-3864 2 4 | — 6 |
| V-150 (EFI) | D082000 | G960499 | S18-4359 | <td>N/A— | — 6 | ||
| 150 MAR | V-6 | 5600162 | 6038680 | S18-4315 | — | — | — |
| 150 MAR | V-6 | 6038681 | C239553 | S18-4317 1 | — | S18-3863 2 | — |
| 150 MAR | V-6 | C239554 | & UP | S18-4359 | — | S18-3861 2 | — |
| V-175 (175, 1750) | V-6 | 4301235 | 6618750 | S18-4315 | — | — | — |
| V-175 | V-6 | 6618751 | C239552 | S18-4319 1 | — | S18-3862 | — |
| V-175 | V-6 | C239553 | D081999 | S18-4359 | — | S18-3871 2 3 | — 6 |
| V-175 | V-6 | D082000 | G960499 | S18-4359 | — | S18-3864 3 4 | — |
| V-175 (EFI) | V-6 | D000750 | D081999 | S18-4359 | — | S18-3871 2 3 | — 6 |
| V-175 XRI EFI | V-6 | D000750 | D081999 | S18-4359 | — | S18-3864 2 4 | — |
| V-175 (EFI) | V-6 | D082000 | G303045 | S18-4359 | — | S18-3864 2 4 | — 6 |
| V-200 (200,2000) | V-6 | 4839034 | 6073191 | — | — | S18-3872 2 | — |
| V-200 | V-6 | 6073192 | 6203990 | — | — | S18-3872 2 | — |
| V-200 | V-6 | 6203991 | C291519 | S18-4319 1 | — | S18-3862 2 3 | — |
| V-200 | V-6 | C291520 | D081999 | S18-4359 | — | S18-3864 2 4 | — 6 |
| V-200 | V-6 | D082000 | G960499 | S18-4359 | — | — | — 6 |
| V-200 (EFI) | V-6 | C100861 | OC291519 | S18-4339 | — | S18-3862 | — |
| V-200 (EFI) | V-6 | C291520 | G960499 | S18-4359 | — | S18-3864 | — 6 |
| V-200 (DFI) 3.0L | V-6 | G386496 | G589999 | — | S18-7400 | — | — |
| V-200 (DFI) 3.0L | V-6 | G590000 | G960499 | S18-4335 | S18-7400 | — | — 7 |
| V-200 (DFI) 3.0L | V-6 | G960500 | T178499 | — | S18-7400 | — | — 8 |
| V-200 XRI EFI | V-6 | C100861 | C291519 | — | — | S18-3862 2 | — |
| V-200 XRI EFI | V-6 | C291520 | & UP | S18-4359 | — | S18-3864 2 4 | — |
| V-220 | V-6 | B117316 | & UP | S18-4339 | — | S18-3862 2 | — |
| V-225 SEA PRO | V-6 | G245605 | OT408999 | — | S18-7400 5 | — | — |
| V-225 (EFI) 3.0L | V-6 | G129222 | T408999 | — | S18-7400 5 | — | — |
| V-225 DFI (3.0L) | V-6 | G590000 | OG960499 | S18-4335 | S18-7400 5 | — | — 8 |
| V-225 DFI (3.0L) | V-6 | G960500 | T178499 | — | S18-7400 5 | — | — 8 |
| V-250 (EFI) 3.0L | V-6 | G129222 | T408999 | — | S18-7400 5 | — | — |
