Description
Replaces 6F3-W0001-21-00, 6F3-W0001-C1-00, 6E5-W0001-51-00, 6E5-W0001-F1-00, 6G5-W0001-21-00, 6G5-W0001-C1-00
Contains
-19%

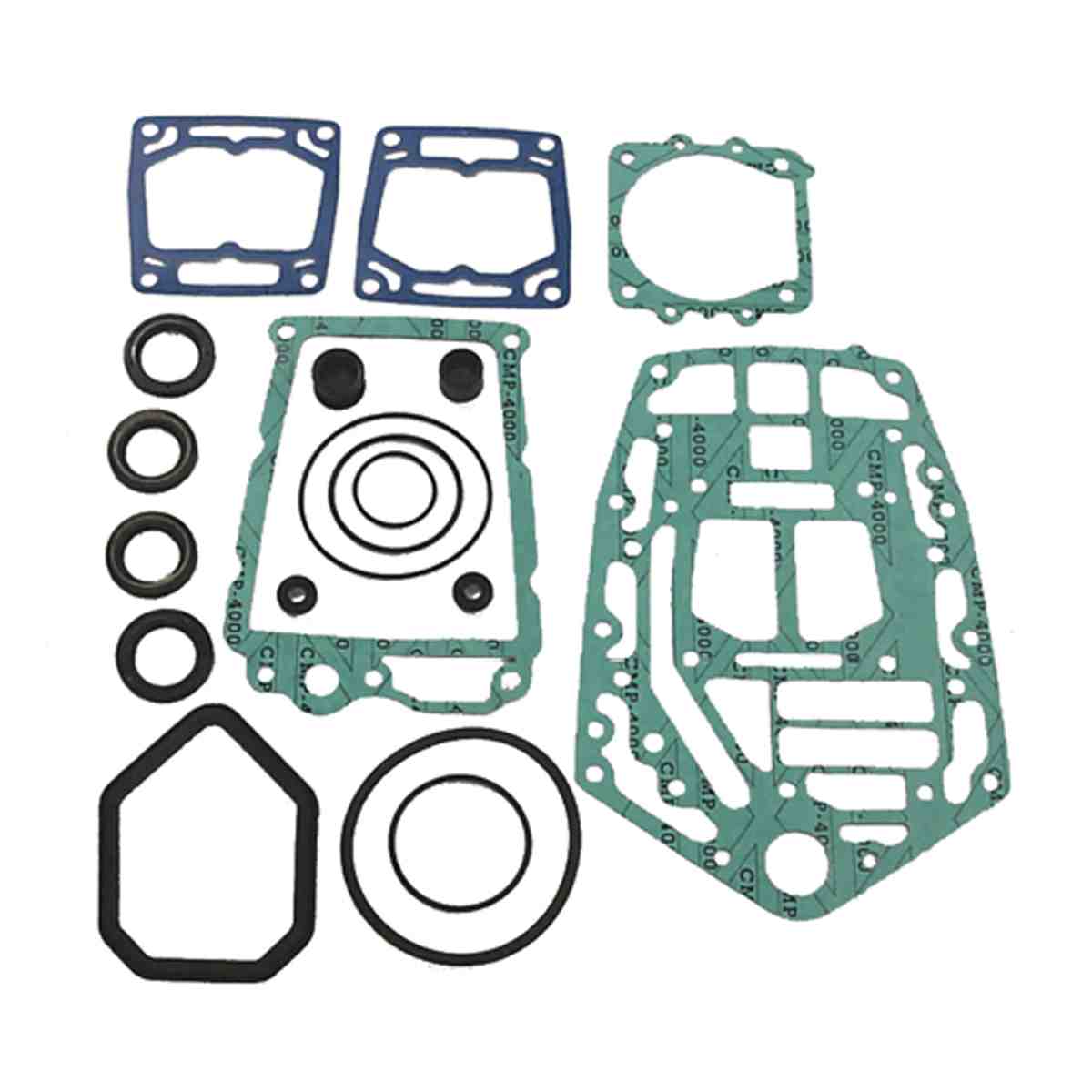

Sierra® Lower Unit Seal Kit – Yamaha®
Original price was: $319.90.$259.26Current price is: $259.26.
Back-order
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Description | O.E # | Qty. |
|---|---|---|---|
| S18-0244 | Water Pump Gasket | 6E5-44315-A0-00 | 1 |
| S18-4698 | Drain or Fill Washer Gasket | YSG-14090-90-8G | 2 |
| S18-0265 | Oil Seal | 93101-28M16-00 | 2 |
| S18-0266 | Oil Seal | 93101-30M17-00 | 2 |
| S18-0267 | Oil Seal | 93106-09014-00 | 1 |
| S18-7483 | O-Ring | 93210-37M67-00 | 1 |
| S18-7485 | O-Ring | 93210-86M38-00 | 1 |
| S18-0275 | O-Ring | 93210-97M55-00 | 1 |
| Model | Year | Sierra® Lower Unit Gasket Kit BLA Code |
|---|---|---|
| 2 | 1989-02 | SS18-0027 |
| 4 | 1984-99 | S18-0028 |
| F4 | 1999-08 | S18-0028 |
| 5 | 1984-02 | S18-0028 |
| 6 | 1988-96 | S18-0029 |
| 6 | 1997-00 | S18-0031 |
| 8 | 1984-96 | S18-0029 |
| 8 | 1997-09 | S18-0031 |
| T8 | 2001-10 | S18-0025 |
| 20 | 1996-97 | S18-0030 |
| 25 | 1984-85 | S18-2785 |
| 25 1 | 1986-87 | S18-0023 |
| 25 1 | 1988-09 | S18-0030 |
| 25 2 | 1997-02 | S18-2789 |
| C25 | 1991 | S18-0023 |
| C25 1 | 1992-97 | S18-0022 |
| CV25 | 1990 | S18-0023 |
| T25 1 | 2002 | S18-0020 |
| 30 | 1984-85 | S18-2785 |
| 30 | 1986 | S18-0023 |
| 30 | 1987-02 | S18-2789 |
| C30 | 1991 | S18-0023 |
| C30 | 1992 | S18-0022 |
| F30 2 | 2002 | S18-0020 |
| 40 | 1984-94 | S18-2792 |
| C40 | 1992-94 | S18-99104 |
| F40 2 | 2002 | S18-0020 |
| 50 | 1986-94 | S18-2792 |
| PRO 50 | 1987-90 | S18-2792 |
| P50 | 1992-94 | S18-2792 |
| C55 | 1991 | S18-2787 |
| C55 | 1992-95 | S18-0024 |
| CV55 | 1989-90 | S18-2787 |
| P60 | 1991 | S18-2788 |
| 70 | 1984-85, 1988-91 | S18-2788 |
| C75 | 1994-99 | S18-0021 |
| E75 | 1995-00 | S18-0021 |
| P75 | 1996-99 | S18-0021 |
| C80 | 1997 | S18-0021 |
| C85 | 1991 | S18-2798 |
| C85 | 1992-96 | S18-0021 |
| CV85 | 1989-90 | S18-2798 |
| 90 | 1984-91 | S18-2798 |
| 90 | 1992-09 | S18-0021 |
| B90 | 1997-99 | S18-0021 |
| C90 | 1997- | S18-0021 |
| 115 | 1986-09 | S18-2794-1 |
| C115 | 1992-00 | S18-2794-1 |
| P115 | 1993-96 | S18-2794-1 |
| S115 | 1996-99 | S18-2794-1 |
| 130 | 1988-04 | S18-2794-1 |
| L130 | 1989-01 | S18-2794-1 |
| S130 | 1996-99 | S18-2794-1 |
| 150 | 1984-09 | S18-2794-1 |
| C150 | 1996-99 | S18-2794-1 |
| L150 | 1986-99 | S18-2794-1 |
| LX150 | 1999-01 | S18-2794-1 |
| LZ150 | 2000-05 | S18-2794-1 |
| Z150 | 2000-05 | S18-2794-1 |
| P150 | 1991-99 | S18-2794-1 |
| PX150 | 1999 | S18-2794-1 |
| PRO V150 | 1987-90 | S18-2794-1 |
| S150 | 1996-99 | S18-2794-1 |
| SX150 | 1999-04 | S18-2794-1 |
| V150 | 2000-08 | S18-2794-1 |
| VX150 | 2000-04 | S18-2794-1 |
| VZ150 | 2000-11 | S18-2794-1 |
| 175 | 1984-00 | S18-2794-1 |
| P175 | 1994-99 | S18-2794-1 |
| S175 | 1996-99 | S18-2794-1 |
| V175 | 2000 | S18-2794-1 |
| VZ175 | 2001-11 | S18-2794-1 |
| Z175 | 2001-05 | S18-2794-1 |
| 200 | 1984-98 | S18-2794-1 |
| L200 | 1986-99 | S18-2794-1 |
| LX200 | 1999-01 | S18-2794-1 |
| LZ200 | 2000-11 | S18-2794-1 |
| P200 | 1991-99 | S18-2794-1 |
| S200 | 1996-99 | S18-2794-1 |
| SX200 | 1999-05 | S18-2794-1 |
| VZ200 | 2001-04 | S18-2794-1 |
| Z200 | 2000-11 | S18-2794-1 |
| V6 Special | 1984-86 | S18-2794-1 |
| V6 Excel | 1987-89 | S18-2794-1 |
| 225 3 | 1990-97 | S18-2794-1 |
| 225 4 | 1994-96 | S18-2799 |
| L225 4 | 1994-96 | S18-2799 |
| S225 | 1996 | S18-2799 |
| 250 | 1990-95 | S18-2799 |
| L250 | 1990-96 | S18-2799 |
| S250 | 1996 | S18-2799 |
