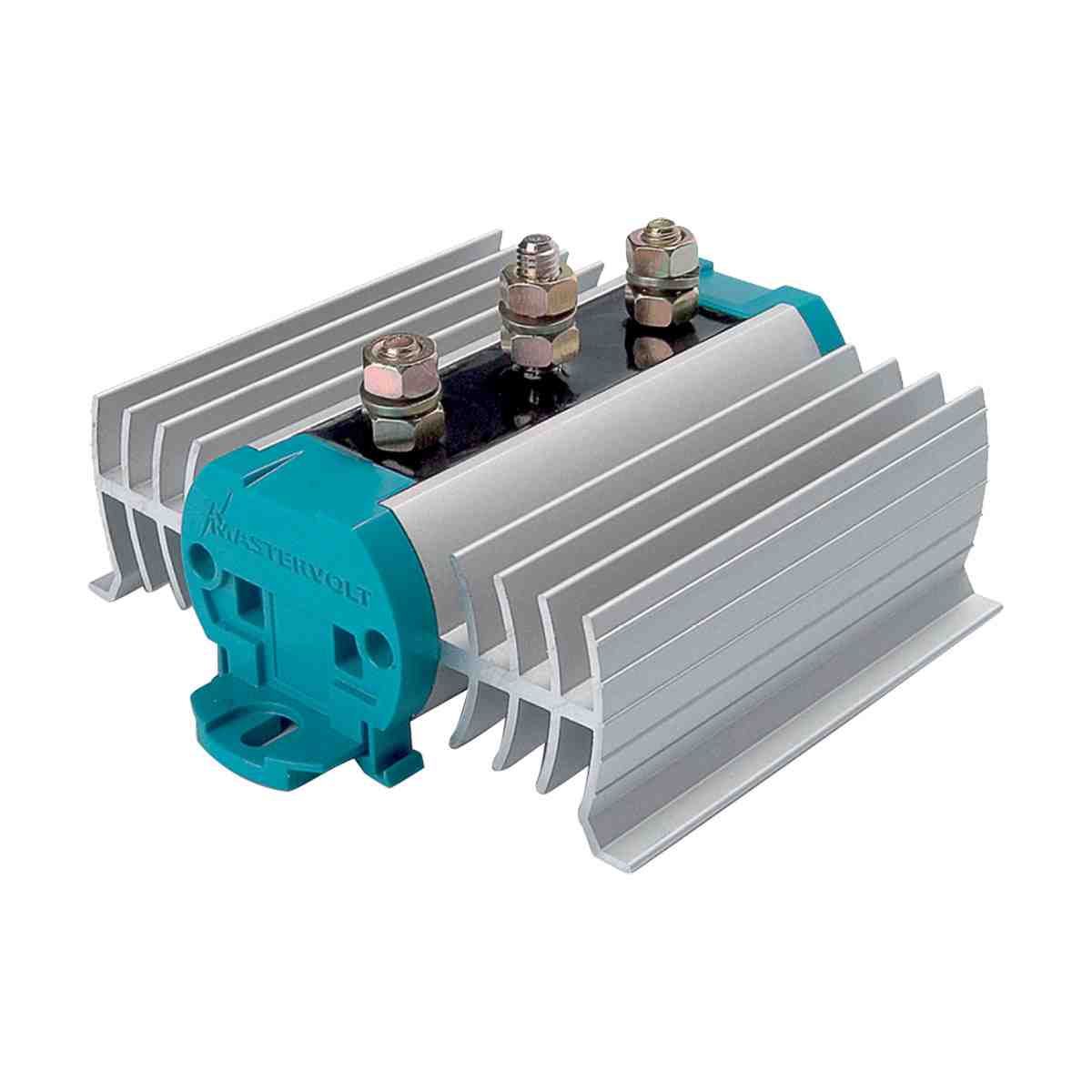

Mastervolt BI Battery Isolators

Price range: $103.08 through $175.55
SKU: G110792

Description

Mastervolt’s BI battery isolators are based on conventional diode technology. The diode voltage drop (ca. 0.6V) can be compensated for by adapting the output voltage of the connected charger. Mastervolt battery chargers and Alpha Pro alternator regulators come as standard with automatic compensation for voltage drops.

Additional information

Variation:

110792 – 702-S, 110796 – 1202-S

Dimensions
Weight0.95 kg
Dimensions24 × 15 × 9 cm
BLA Code110792110796
DescriptionBI 702-SBI 1202-S
General Specifications
Max. Output Charger50A80A
Max. Output Alternator70A120A
Compensation diodeyesyes
Dimensions, H x W x D mm157 x 140 x 80mm207 x 140 x 80mm
Weight kg0.581.2
# of battery banks22
