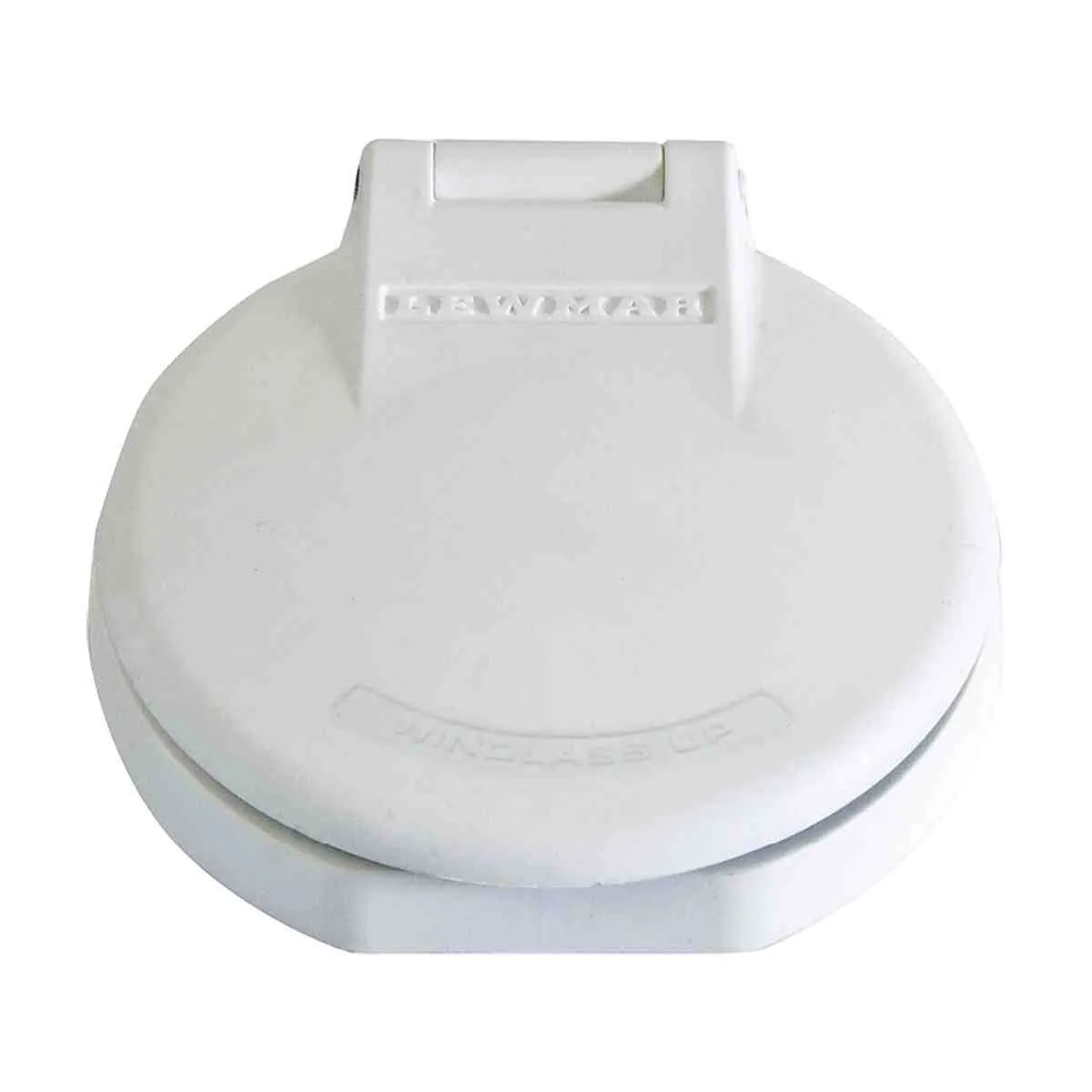

Lewmar® Foot Switches
Price range: $61.07 through $325.24
Description
A range of foot switches providing direct control for all Lewmar® 12 or 24 volt DC electric windlasses. Each switch Features a solid hinged cover for protection and to guard against accidental foot operation with optional centre hole open models which allow for finger operation when required. Suitable for 5A open contact 12 or 24 volt, must be used with solenoid or control box. For additional protection consider the CHSX range. Rated to IP67/5 for water resistance and feature a twin sealed switch compartment and composite plastic body. Available with either a composite plastic or polished stainless steel hinged lid.
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Model | Colour | Direction | Lid Material | Centre Opening | Volts |
|---|---|---|---|---|---|---|
| 154459 | Std | White | – | Plastic | No | 12/24 |
| 154460 | Std | Grey | – | Plastic | No | 12/24 |
| 154461 | Std | White | – | Plastic | Yes | 12/24 |
| 154462 | Std | Grey | – | Plastic | Yes | 12/24 |
| 154465 | Std | White | Down | Plastic | No | 12/24 |
| 154466 | Std | Grey | Down | Plastic | No | 12/24 |
| 154467 | Std | White | Up | Plastic | No | 12/24 |
| 154468 | Std | Grey | Up | Plastic | No | 12/24 |
| 154469 | Std | S/S | – | S/S | No | 12/24 |
| 154470 | Std | S/S | Down | S/S | No | 12/24 |
| 154472 | Std | S/S | Up | S/S | No | 12/24 |
| 154488 | CHSX | S/S | – | S/S | Yes | 12/24 |
| 154490 | CHSX | Black | – | Black | Yes | 12/24 |
| 154492 | CHSX | S/S | – | S/S | No | 12/24 |
