Description

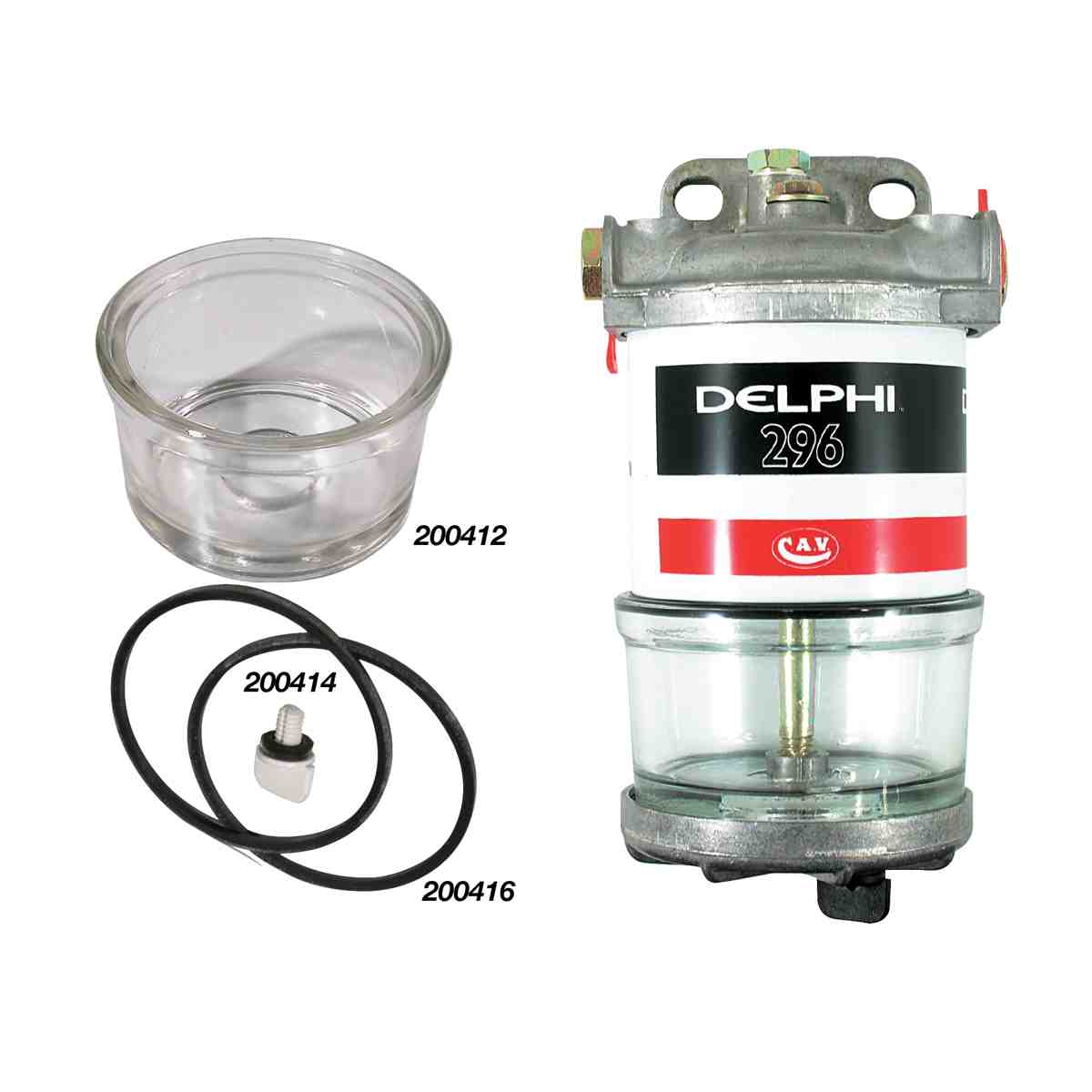

An agglomerator filter which offers efficient fuel filtration via a paper filter element. Water is collected in a clear glass base and drained via a screw in plug, without having to dismantle the unit. Base and head are cast aluminium. Suitable for diesel fuel only with standard element. Use 200419 Ryco element for 2 & 4 stroke fuel.

Complete filter assembly.

Features
• 10mm fastening holes
• 197mm overall height
• 107mm maximum width
• 45L/hr flow rate
• Inlet/outlet 1⁄2″ x 20 UNF

Accessories
200412 Replacement glass bowl
200414 Replacement drain plug
200416 Replacement ‘O’ ring
200418 Replacement element diesel only
200419 Ryco element 2 & 4 stroke fuel
