CZone Touch 7

Original price was: $2,179.00.Current price is: $1,938.73.
SKU: 112792

Description

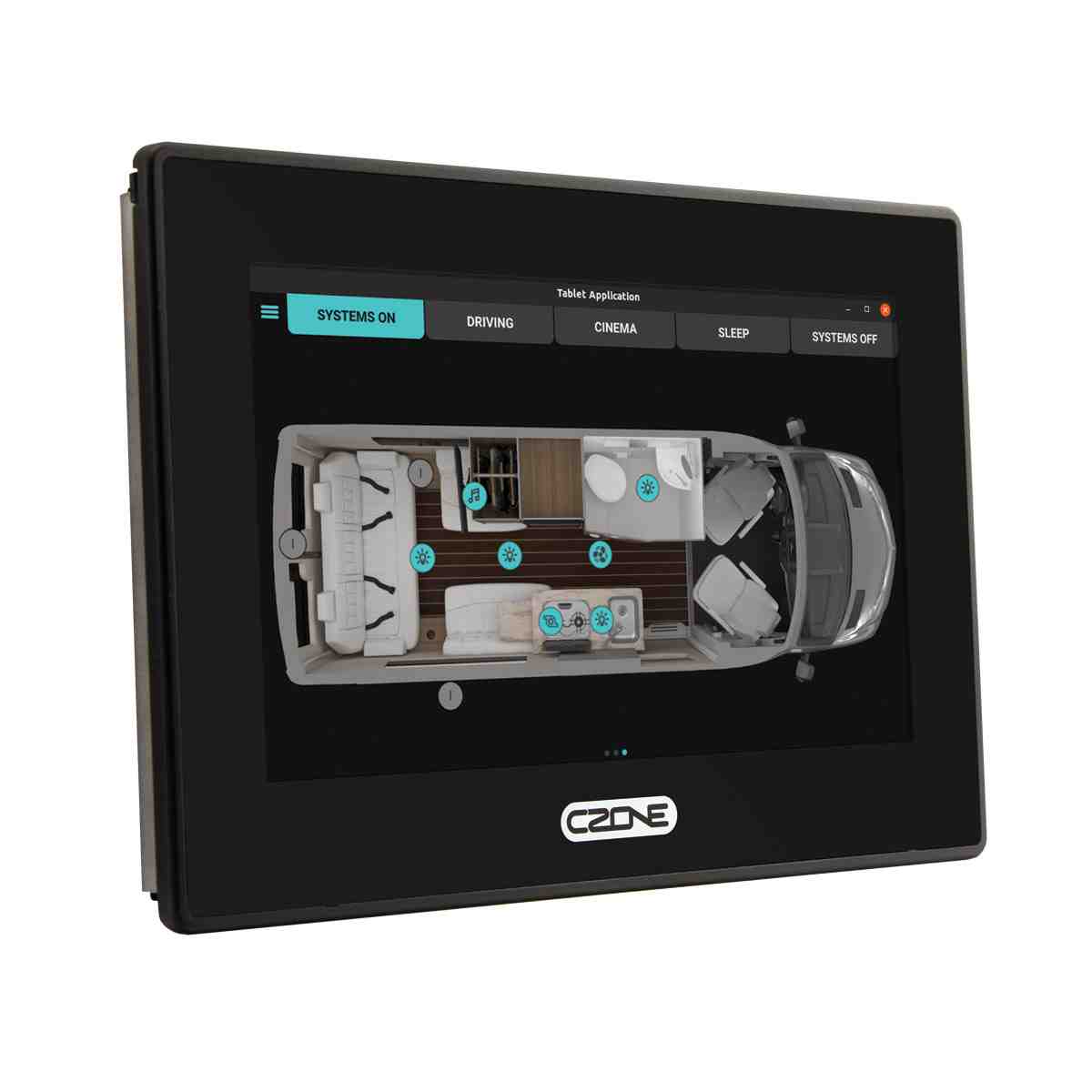

Introducing the newest member of the CZone display family the Touch 7. With an excellent 7” IPS LCD panel it can be viewed from any angle. The Touch 7 Features all new electronics with the fastest processor ever in a CZone Touch display and built in connectivity for tablet pairing. Installation is easy with front mount installation, shallow mounting depths and a wide voltage range. The Touch 7 also uses the highly customizable and easy to use CZone 2.0 User Interface.

Features
• New 7” display with modern, low profile glass design
• Optically bonded IPS LCD provides excellent viewing angles
• 24 bit colour for better colour accuracy and contrast
• High resolution 1024 x 600 pixel for sharp and clear images
• 500 nit brightness dimmable for night time viewing
• New dual core processor provides lightning fast performance
• Easy front mount installation and screwless rear access
• Shallow 35mm mounting depth including cables
• Built in Wi-Fi and ethernet for tablet connectivity
• Wide 8-32V DC voltage range
• Consistent and familiar CZone 2.0 User Interface, customizable for any OEM

*CZone Touch 7 has been designed primarily for RV applications, any marine application should be reserved for parts of the vessel that remain dry.

Additional information

Brand

CZone

Dimensions
Weight0.95169 kg
Dimensions23.11 × 17.78 × 7.87 cm
Display Size7.0 Inch
Display TypeIPS LCD Display (Optically Bonded)
Resolution1024 x 600
Brightness550 cd/m2
Colours24-bit RGB
Touch ScreenProjected Capacitive
CPUNXP/Freescale i.MX6DL Dual-Cortex A9
Operating Voltage8-32V DC
Current Draw430mA @ 12V (operating – backlight 100%)n130mA @ 12V (standby – backlight of
Storage Temp-30°C to 80°C
Operating Temp-20°C to 70°C
Ingress ProtectionNone, IPX0*
InterfacesUSB 2.0, Ethernet, NMEA 2000, WiFi
Dimensions (H x W x D)195 x 130 x 41 mm
Weight695 grams
DC Power Connector Part #Phoenix 1777992 MSTB 2,5/ 3-STF-5,08
CertificationCE, FCC, RCM
