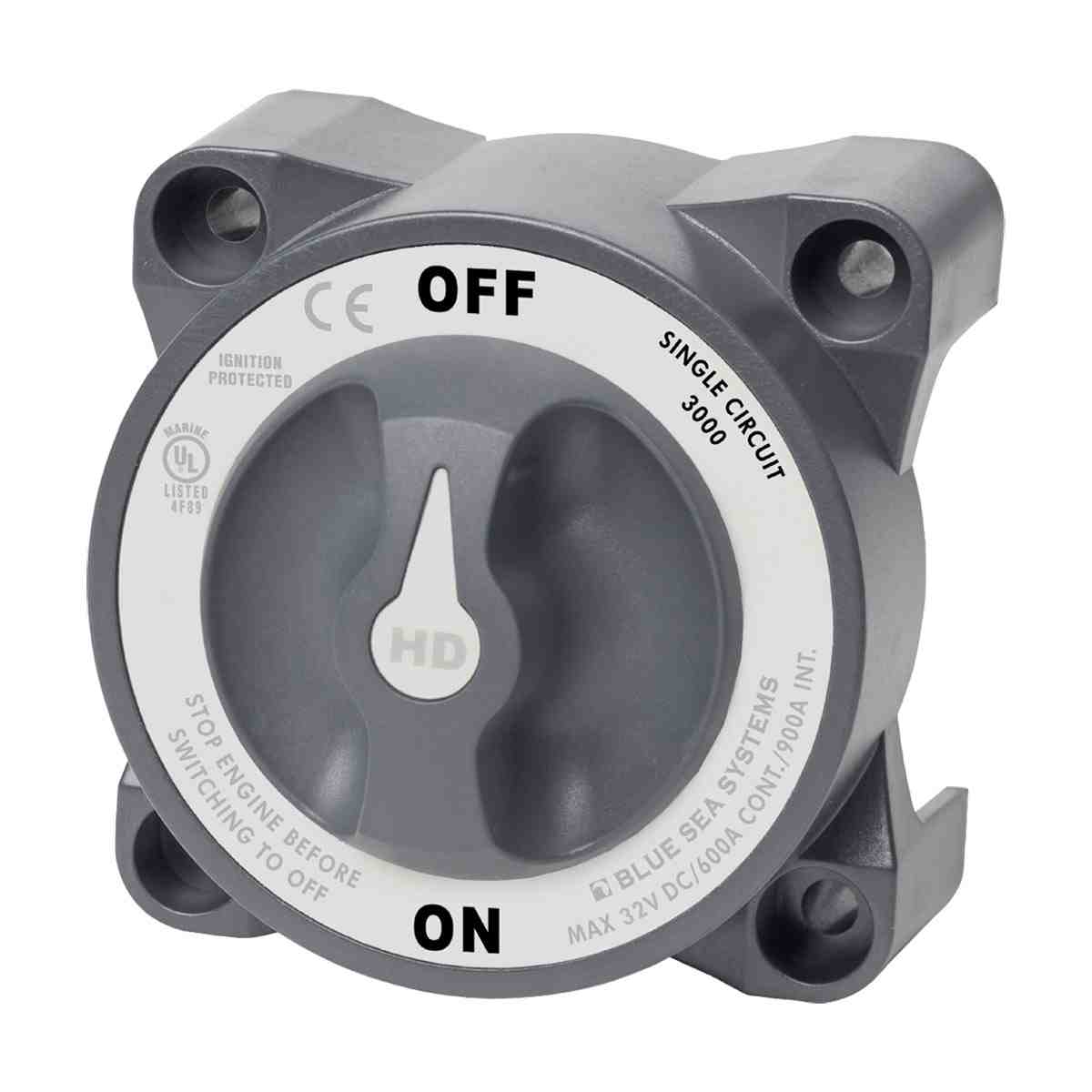

Blue Sea Systems HD-Series Battery Switches

Blue Sea Systems HD-Series Battery Switches

Price range: $211.24 through $253.24
SKU: GBS-3000

Description

Up to 600 Amps continuous rating for large diesel engines. BS-3000 and BS-3001 HD-Series ON-OFF battery switches have three studs; one stud for the battery connections and two studs for the common load terminations.

Features
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG (120 mm²) battery cables
• Studs accept 1/2″ (M12) ring terminals
• 7/8″ (22 mm) stud length accepts multiple cable terminals
• Fits most Perko and Guest low amperage battery switch hole patterns

Additional information

Variation:

BS-3000 – HD SERIES ON-OFF, BS-3002 – HD SERIES 4 POSITION, BS-3003 – HD SERIES 4 POSITION W/ AFD

Dimensions
Weight0.59 kg
Dimensions8.5 × 16.2 × 21.8 cm
BLA CodeBS-3000BS-3002BS-3003
DescriptionSingle Circuit ON-OFFSelector 4 PositionSelector 4 Position
Cranking Rating: 30 sec.1,750A1,600A1,600A
Cranking Rating: 1 min.1,325A1,150A1,150A
Intermittent Rating: 5 min.900A700A700A
Continuous Rating600A500A500A
Voltage Max. Operating32V DC32V DC32V DC
AFD––Yes
