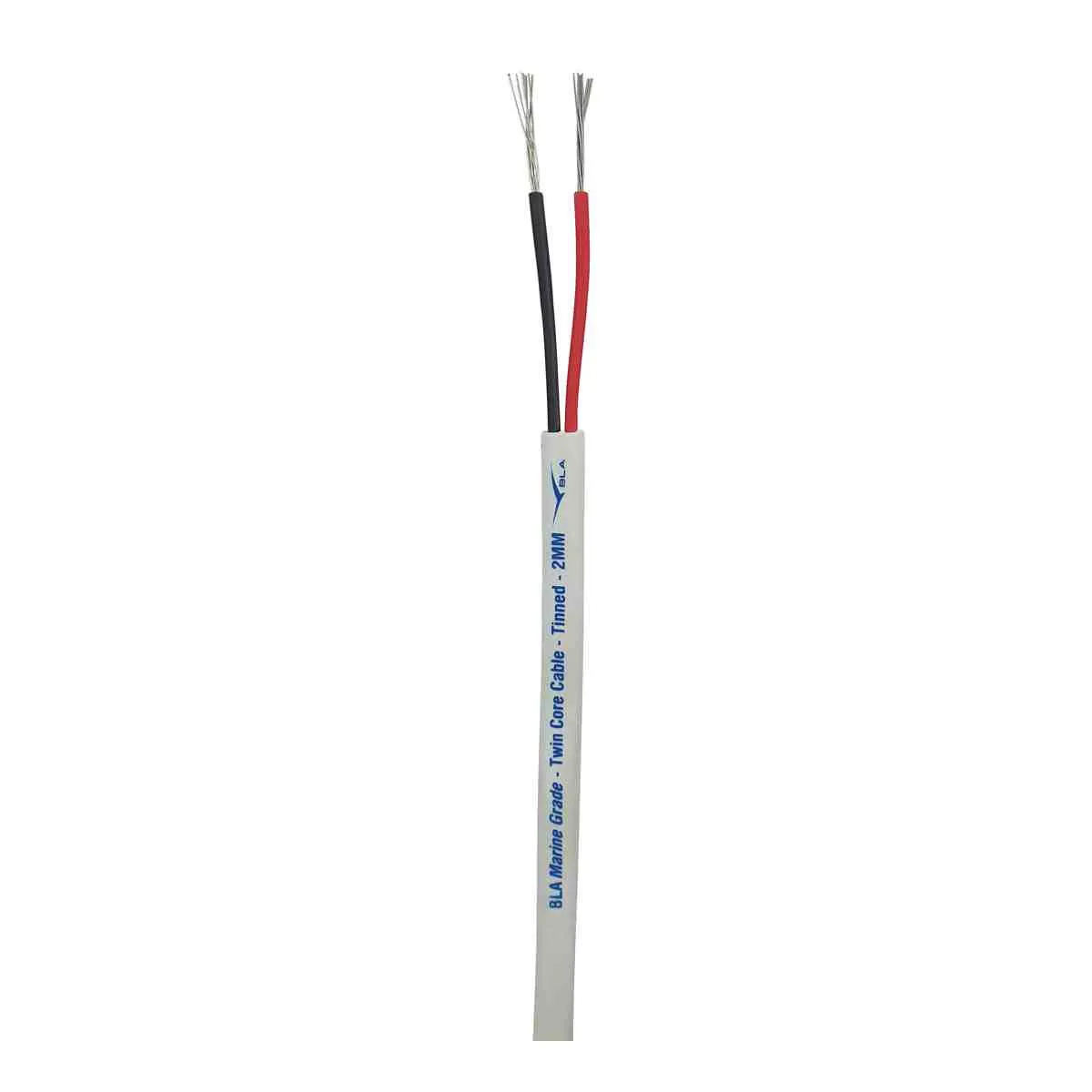

BLA Twin Core Twin Sheath Tinned Cable

BLA Twin Core Twin Sheath Tinned Cable

Price range: $39.59 through $450.03
SKU: G116350

Description

Marine quality, twin core low voltage wiring with external sheath for extra protection in vulnerable applications. V90 PVC insulation and sheath to AS/NZS 3808, tin coated copper wire conductor to AS/NZS 1125. Supplied in 50 and 100 metre metal centred coils. Red/black core with white outer sheath, printed with sizing and metre marks.

Product Details:

Additional information

Variation:

116350 – 2MM X 50M, 116351 – 2MM X 100M, 116352 – 3MM X 50M, 116353 – 3MM X 100M, 116354 – 4MM X 50M, 116355 – 4MM X 100M, 116356 – 6MM X 50M, 116357 – 6MM X 100M

Dimensions
Weight2 kg
Dimensions21 × 21 × 7 cm
BLA Code 50mmBLA Code 100mAuto Size mmNominal Area mm²Strand O.D. #/mmRating @ 30° C ampInsulation Thickness mmO.D. mm
11635011635122×0.5TBC50.5 / 0.63.5×5.5
11635211635332×1.1316/0.30100.5 / 0.63.7×6.0
11635411635542×1.8526/0.30150.5 / 0.64.0×6.7
11635611635762×4.5865/0.30500.6 / 0.85.7×9.6
