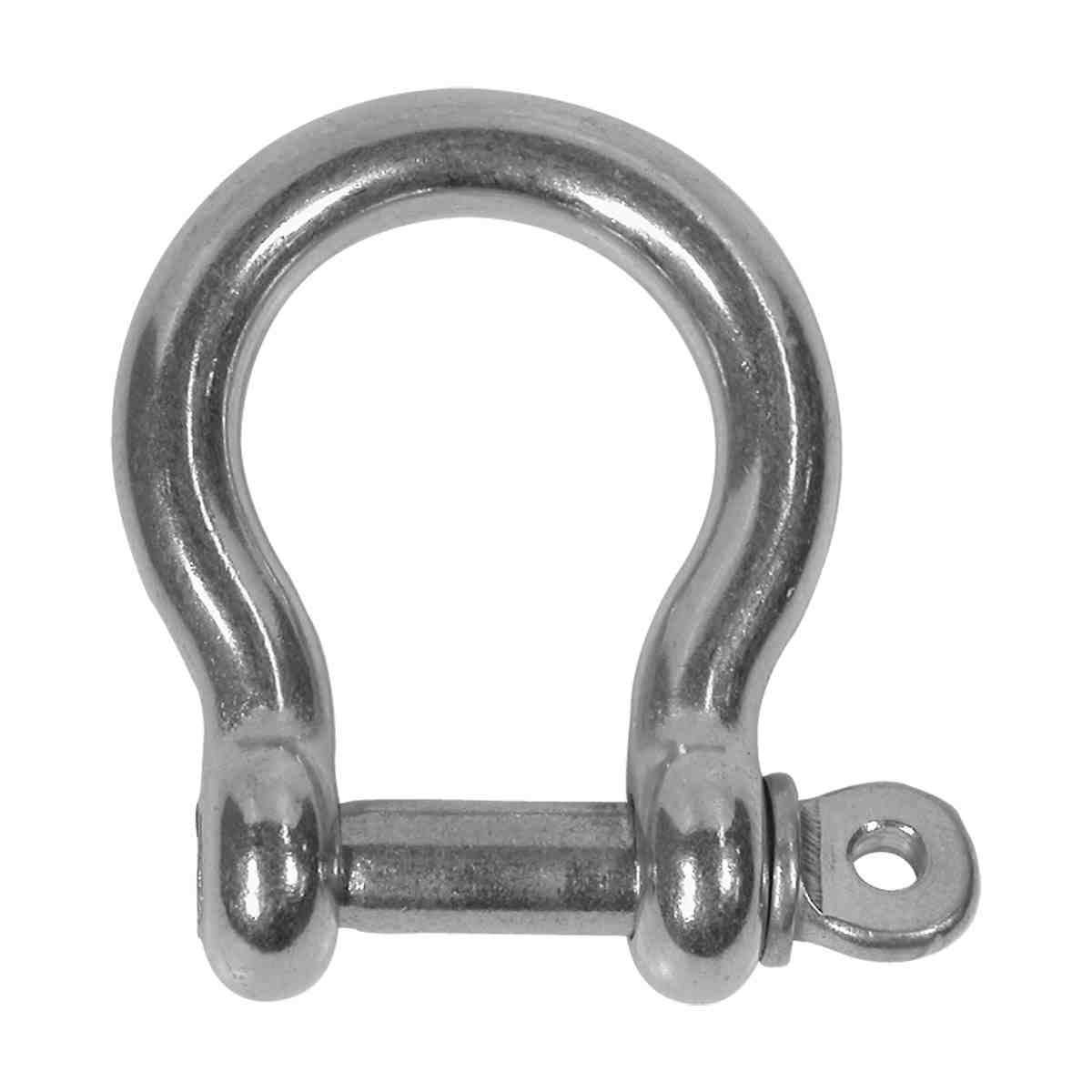

BLA Bow Shackles – Stainless Steel
$4.30 – $31.23
Description
316 grade stainless steel bow shackles. Screw in pin drilled for security tie wire.
‘B’ – Denotes bulk packed item
‘P’ – Denotes packaged item
Additional information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 4 × 3.6 × 1.1 cm |
| Variation: | 161130 – G316 6MM, 161130B10 – G316 6MM BULK 10, 161130P – G316 6MM PACK 1, 161132 – G316 8MM, 161132P – G316 8MM PACK 1, 161134 – G316 10MM, 161136 – G316 12MM |
| BLA Code | Pack Qty | Pin. Dia mm | A mm | B mm | C mm | Breaking Load kg |
|---|---|---|---|---|---|---|
| 161130 | 1 | 6 | 27 | 12 | 21 | 1700 |
| 161130P | 1 | 6 | 27 | 12 | 21 | 1700 |
| 161130B10 | 10 | 6 | 27 | 12 | 21 | 1700 |
| 161132 | 1 | 8 | 37 | 17 | 28 | 2500 |
| 161132P | 1 | 8 | 37 | 17 | 28 | 2500 |
| 161132B10 | 10 | 8 | 37 | 17 | 28 | 2500 |
| 161134 | 1 | 10 | 45 | 21 | 34 | 4300 |
| 161136 | 1 | 12 | 53 | 26 | 40 | 6200 |
| 161139 | 1 | 16 | 73 | 32 | 54 | 7000 |
