BEP Busbars

BEP Busbars

Price range: $24.45 through $47.43
SKU: G113504

Description

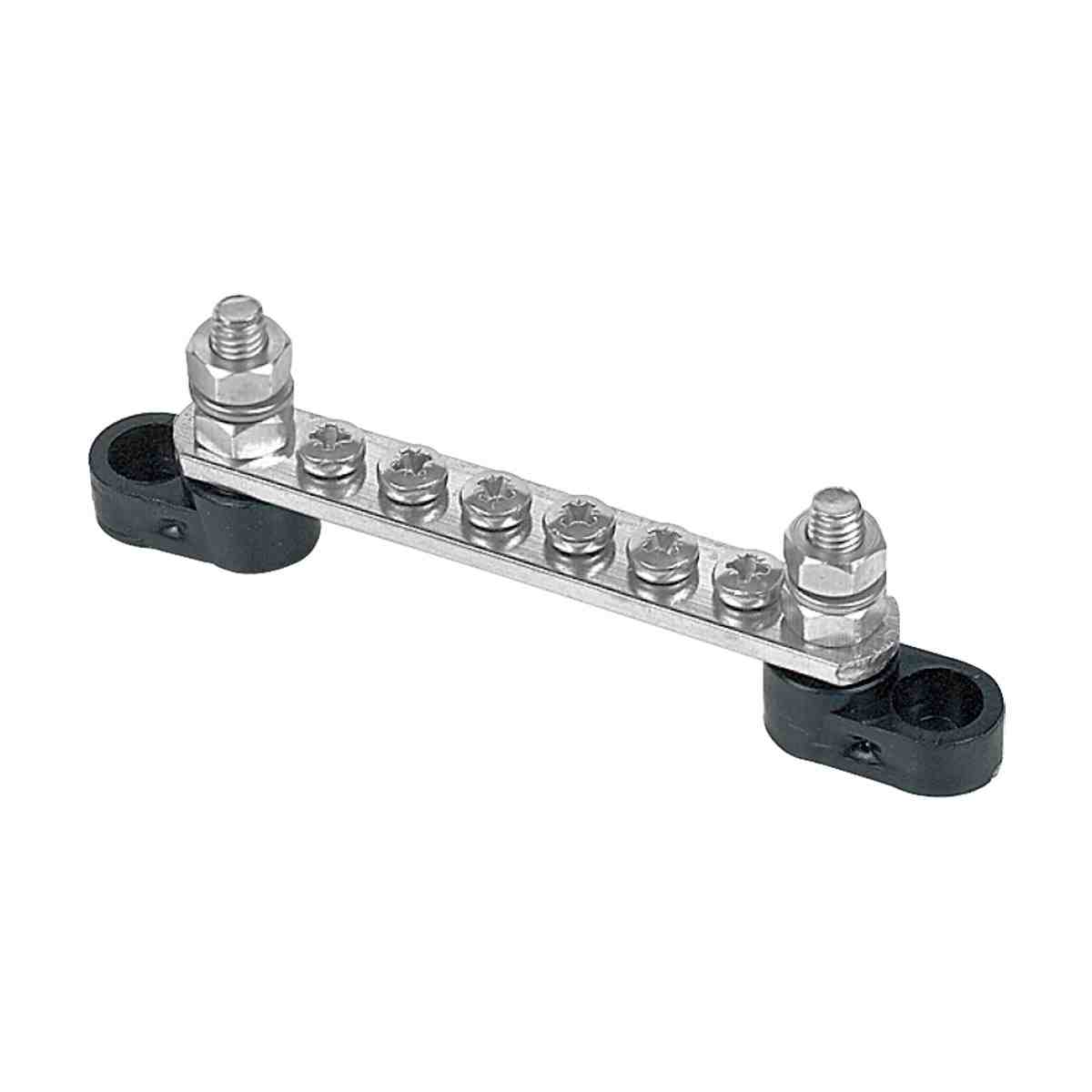

Tin plated brass busbars with insulated mounting bases. Mounting holes are recessed to avoid accidental shorts. Polarity colour coded covers are available to meet ABYC standards.

Additional information

Variation:

113504 – BUS BAR 6 WAY 2 STUD, 113506 – BUS BAR 12 WAY 2 STUD, 113509 – BUS BAR 24 WAY 2 STUD

Dimensions
Weight0.07 kg
Dimensions8 × 11.8 × 2 cm
BLA CodeTake OffsBase mmHeight mmCurrent RatingOutput Screws mmInput Studs mm
11350461171510046
113506121771510046
113509241773515046
