Ball Joints
Price range: $24.03 through $40.77
Description
Connect 33, 43 and 63 series control Cables to throttle, gear or actuator linkage. Available in stainless steel or gold passivated steel. A spring loaded ball receptor provides quick release.
Additional information
| ||||

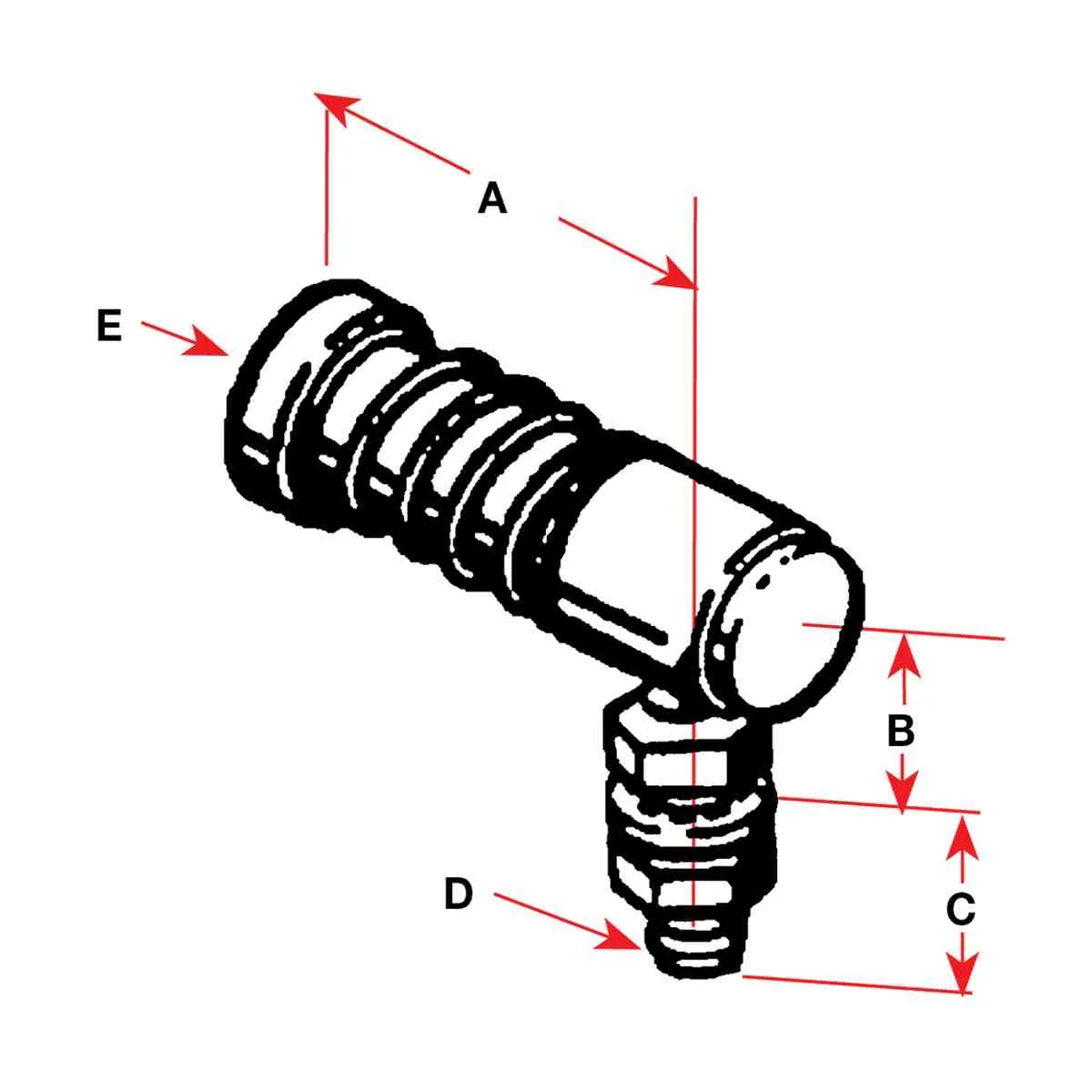

| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Material | Cable Series | A mm | B mm | C mm | D Thread | E UNF |
|---|---|---|---|---|---|---|---|
| 305006 | Steel | 30 | 23 | 12 | 14 | 1⁄4″ UNF | 10-32 |
| 309702 | Steel | 30 | 23 | 12 | 11 | 10-32 UNF | 10-32 |
| 309706 | S/S | 30 | 32 | 12 | 14 | M6 | 10-32 |
| 309714 | Steel | 30 | 32 | 15 | 22 | 5⁄16″ UNF | 10-32 |
| 309718 | Steel | 40 | 25 | 12 | 14 | 1⁄4″ UNF | 1⁄4″ |
| 309720 | S/S | 40 | 25 | 12 | 16 | M6 | 1⁄4″ |
| 309728 | Steel | 60 | 32 | 15 | 22 | 5⁄16″ UNF | 5⁄16″ |
| 309730 | S/S | 60 | 25 | 13 | 22 | M8 | 5⁄16″ |
