Veethree Electronics Premier Pro Domed Gauges

Veethree Electronics Premier Pro Domed Gauges

Price range: $82.37 through $230.49
SKU: G112224

Description

Features
• Very low profile black bezel follows the curve of the lens to eliminate any water ‘trapping’
• White graphics and pointer on a black dial background
• Where applicable, metric information is shown in blue
• Light piping directs red light behind the translucent dial and white light to the pointer for optimal night vision
• Fog free domed glass lens is scratch resistant
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
• Shielded to prevent magnetic interference
• Silicone dampened

FOG FREE

Accessories
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb

Additional information

Variation:

112224 – TACHOMETER 7000RPM PETROL, 112226 – TACHOMETER 4000RPM DIESEL, 112230 – SPEEDOMETER KIT 35MPH, 112232 – SPEEDOMETER KIT 50MPH, 112234 – SPEEDOMETER KIT 65MPH, 112242 – WATER TEMPERATURE 100°-240°F, 112246 – WATER PRESSURE 0-40PSI, 112252 – OIL PRESSURE 0-80PSI, 112254 – OIL PRESSURE 0-100PSI, 112258 – HOURMETER, 112262 – VOLTMETER, 112268 – FUEL, 112272 – TRIM BRP, 112273 – TRIM HONDA, 112274 – TRIM MERC/MARINER/YAMAHA 2001

Dimensions
Weight0.32 kg
Dimensions14.9 × 19.6 × 10.9 cm
DimensionsA mmB mmC mmD mm
75mm Tacho96867013
75mm Speedometer96868213
50mm Electrical61536311
BLA CodeDescriptionFace Dia. mm*Sender Style
Tachometers:

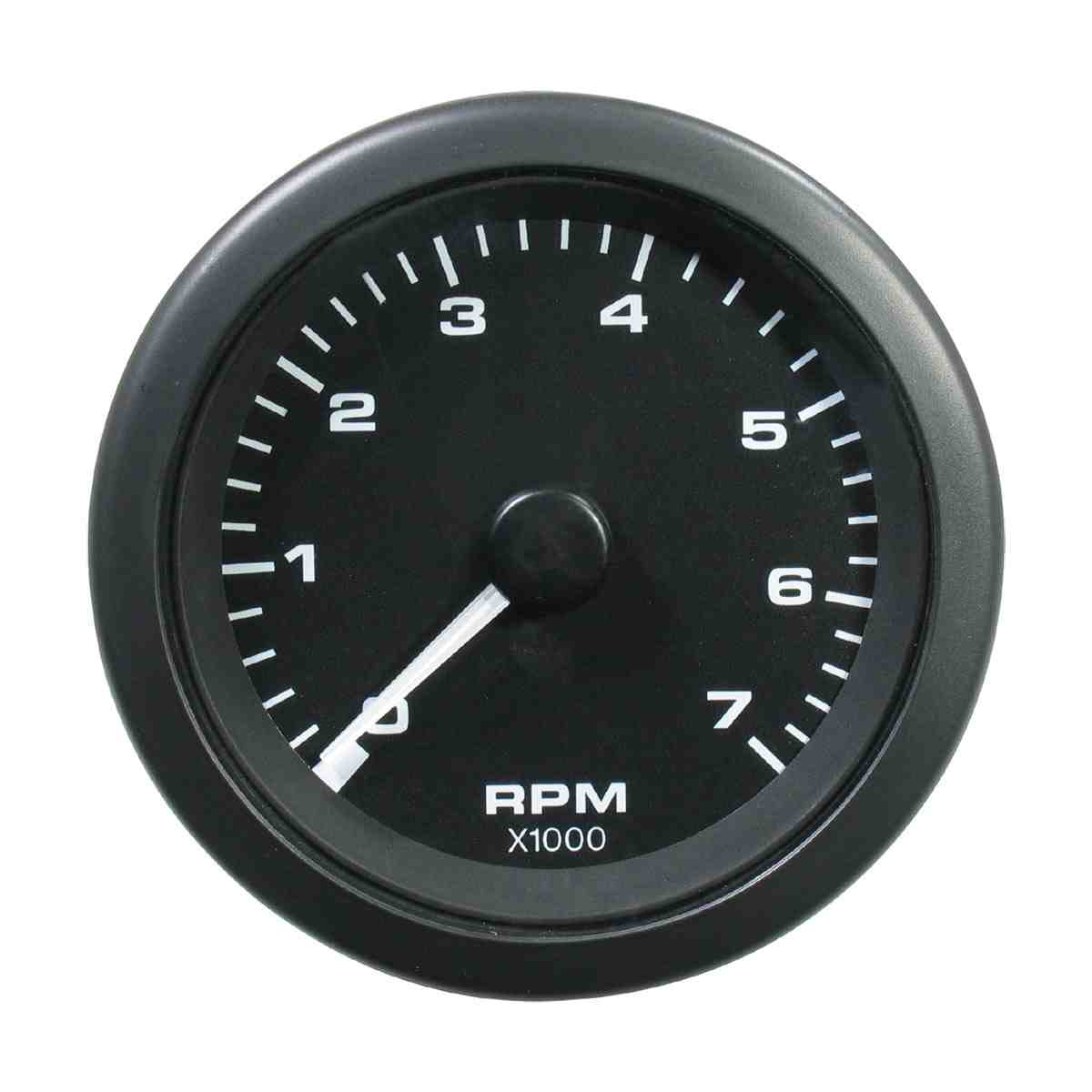

112224Tacho 7000 RPM inboard & outboard75Coil and O/board alt
112226Tacho 4000 RPM diesel alternator75Motor Alternator
Speedometer:
112230Speedo kit 35 MPH75G included
112232Speedo kit 50 MPH75G included
112234Speedo kit 65 MPH75G included
Kits include 20′ of pitot hose
Water temperature gauge:
112242Water temperature 100ºF – 240ºF50D
112246Water pressure gauge kit 0 – 40 psi50WP Included
Oil pressure:
112252Oil pressure 0 – 80 PSI50C
112254Oil pressure 0 – 100 PSI50C
Hourmeter:
112258Hourmeter, 10,000 Hrs50Not required
Voltmeter:
112262Voltmeter, 10 – 16 volt50Not required
Fuel:
112268Fuel50F
Trim:
112272Evinrude®/Johnson® outboards50Engine manufacturer
112273Honda® outboards50Engine manufacturer
112274Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on50Engine manufacturer
