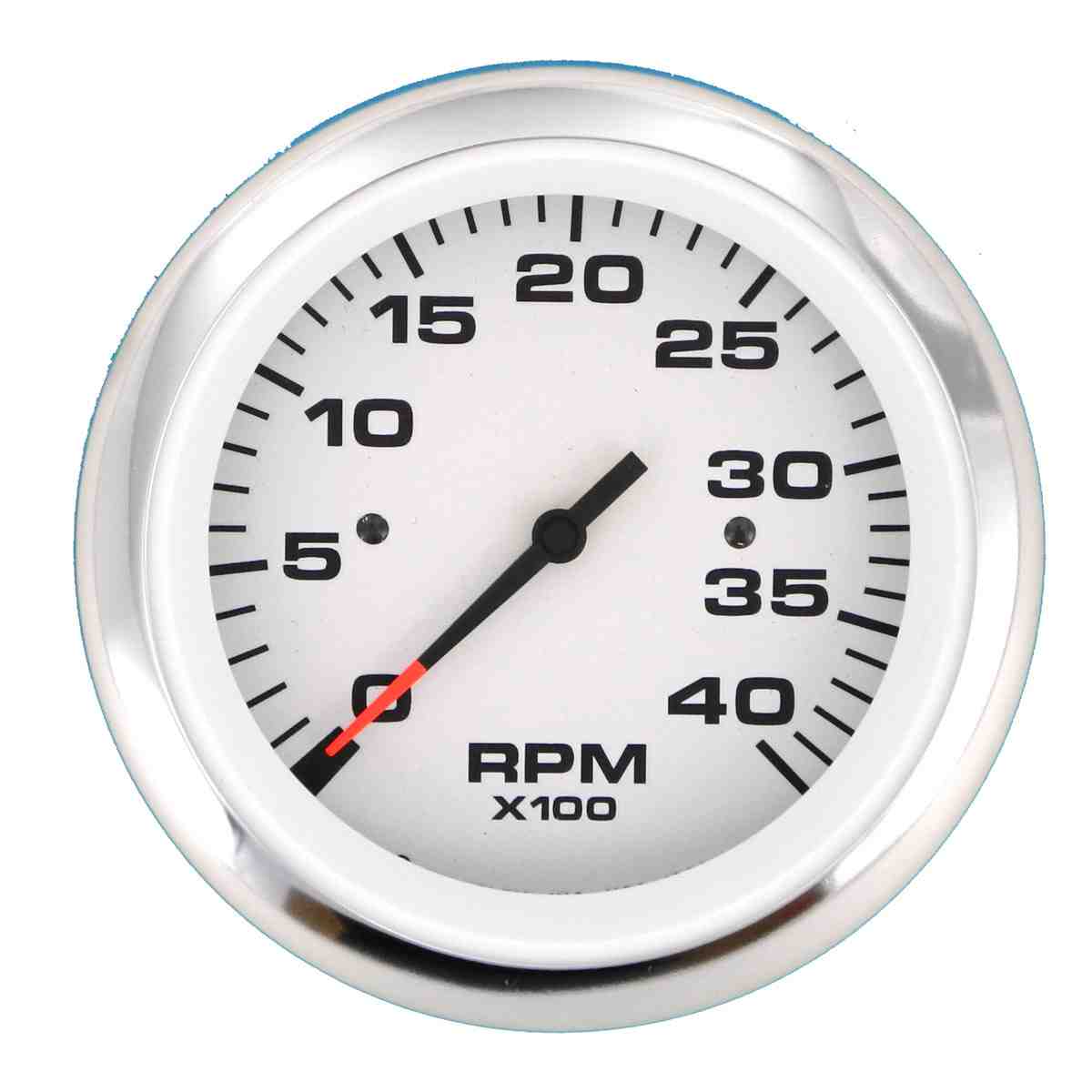

Veethree Electronics Lido Pro Domed Gauges

Veethree Electronics Lido Pro Domed Gauges

Price range: $96.43 through $245.38
SKU: G112332

Description

Features
• Highly polished, curved stainless steel bezel that eliminates water trapping
• Black graphics on a white dial background
• Pointers are black with a fire orange tip
• White perimeter and red through dial lighting
• Fog free, scratch resistant curved glass lenses
• Shielded to prevent magnetic interference
• Silicon dampening to eliminate pointer bounce
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
• Kits include 20′ of pitot hose

Accessories
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb

Additional information

Variation:

112332 – TACHOMETER 7000RPM PETROL, 112340 – SPEEDOMETER KIT 50MPH, 112342 – SPEEDOMETER KIT 65MPH, 112352 – WATER TEMPERATURE 120°-240°F, 112356 – OIL PRESSURE 0-80PSI, 112358 – OIL PRESSURE 0-100PSI, 112360 – HOURMETER, 112364 – VOLTMETER, 112368 – FUEL, 112370 – TRIM BRP, 112372 – TRIM MERC/MARINER/YAMAHA 2001, 112376 – WATER

Dimensions
Weight0.3 kg
Dimensions14.9 × 19.9 × 11.4 cm
DimensionsA mmB mmC mmD mm
75mm Tacho96867013
75mm Speedometer96868213
50mm Electrical61536311
BLA CodeDescriptionFace Dia. mm*Sender Style
Tachometers:
112332Tacho 7000 RPM inboard & outboard75Coil and O/board alt
112334Tacho 7000 RPM c/w hourmeter75Motor Alternator
Speedometer:
112338Speedo kit 35 MPH75G included
112340Speedo kit 50 MPH75G included
112342Speedo kit 65 MPH75G included
Water temperature gauge:
112352Water temperature 120ºF – 240ºF50D
Oil pressure:
112356Oil pressure 0 – 80 PSI50C
112358Oil pressure 0 – 100 PSI50C
Hourmeter:
112360Hourmeter, 10,000 Hrs, 10 – 32 volt50Not required
Ammeter:
112365Ammeter 60 – 0 – 6050Not required
Voltmeter:
112364Voltmeter, 8 – 18 volt50Not required
Fuel:
112368Fuel50F
Water Tank:Refer page 238
112376Water5010-180Ohm
Trim:
112370Evinrude®/Johnson® outboards50Engine manufacturer
112372Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on50Engine manufacturer
