100Knots

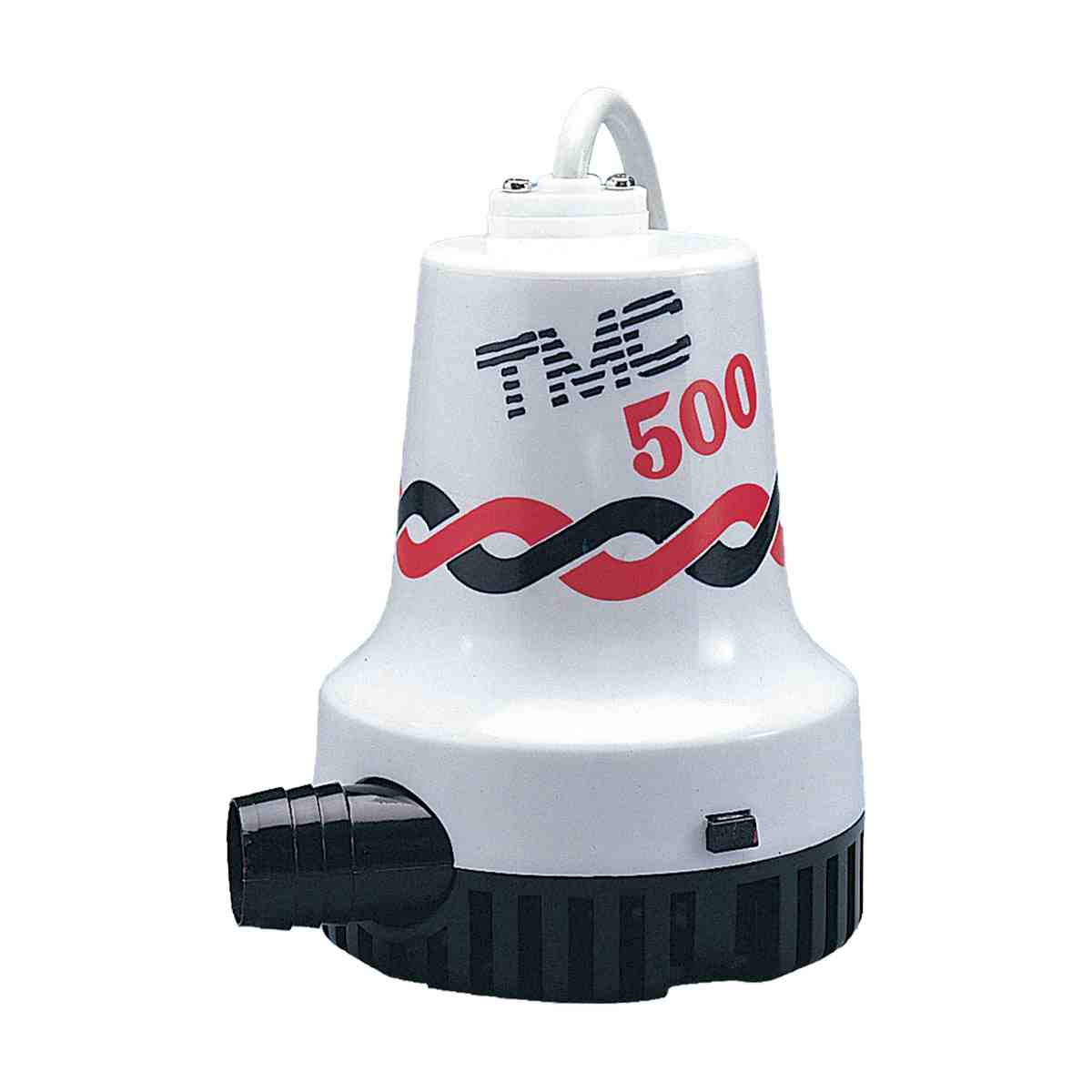

TMC Heavy Duty Electric Submersible Bilge Pumps

This product is currently out of stock and unavailable.

SKU: G131600

Description

The highest quality submersible bilge pumps available from TMC. Aluminium motor enclosure base dissipates motor heat while the electrodeposition coating resists corrosion.

Features
• Permanent magnet motor
• Snap-on mount base strainer
• Two year limited warranty
• Every pump is water tested to ensure delivery head, voltage and amp draw are within Specifications

Spare Parts
131540 Repair kit to suit 500 and 1000 models
131542 Repair kit to suit 1500 and 2000 models
131544 Repair kit to suit 2500 and 3000 models

N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level. Specified output is US gph open flow.

Additional information

Variation:

131600 – 500GPH 12V, 131602 – 1000GPH 12V, 131603 – 1500GPH 12V, 131604 – 2000GPH 12V, 131606 – 2500GPH 12V, 131608 – 3000GPH 12V, 131613 – 1500GPH 24V, 131614 – 2000GPH 24V, 131616 – 2500GPH 24V, 131618 – 3000GPH 24V

Dimensions
Weight0.68 kg
Dimensions13.8 × 16.5 × 20 cm
BLA CodeCapacity Open Flow L/mCapacity Open Flow gphCapacity @1 Head L/mCapacity @1 Head gphPower vPower ampMax Head mBase Dia mmHeight mmOutlet Dia mm
13160031.550025400123.548814019
13160263100047750125.548814028
13160394.51500661050128312017028
13161394.51500941500244312017028
131604126200013922001212412017028
13161412620001702700245412017028
131606158250066105012184.613219732
1316161582500941500247.54.613219732
1316081903000139220012184.613219732
131618190300017027002494.613219732
