Titan Tested Bow Shackle - Galvanised

Titan Tested Bow Shackle – Galvanised

$6.25 – $67.42
SKU: G143072

Description

Quality heavy duty tested bow shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.

Additional information

Weight0.05 kg
Dimensions3.6 × 4.8 × 1.7 cm
Variation:

143072 – 6MM, 143074 – 8MM, 143076 – 10MM, 143078 – 13MM, 143080 – 16MM, 143082 – 19MM, 143084 – 22MM, 143086 – 25MM

User Reviews

0.0 out of 5
★★★★★
0
★★★★★
0
★★★★★
0
★★★★★
0
★★★★★
0

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

BLA CodeBail Size mmPin Dia. mmWorking Load kgBreaking Load kgD1 mmE Thread mmW mmB mmL mm
1430726850030004.85/16 – 18UNC11.919.828.7
14307481075045005.63/8 – 16UNC13.521.331
1430761011100060006.47/16 – 14UNC16.826.236.3
14307813162000120009.75/8 – 11UNC20.633.347.8
143080161932501950011.23/4 – 10UNC26.942.960.5
143082192247502850012.77/8 – 9UNC31.850.871.4
143084222565003900012.71 – 8UNC36.657.984.1
143086252985005100014.21 1/8 – 7UNC42.968.395.3

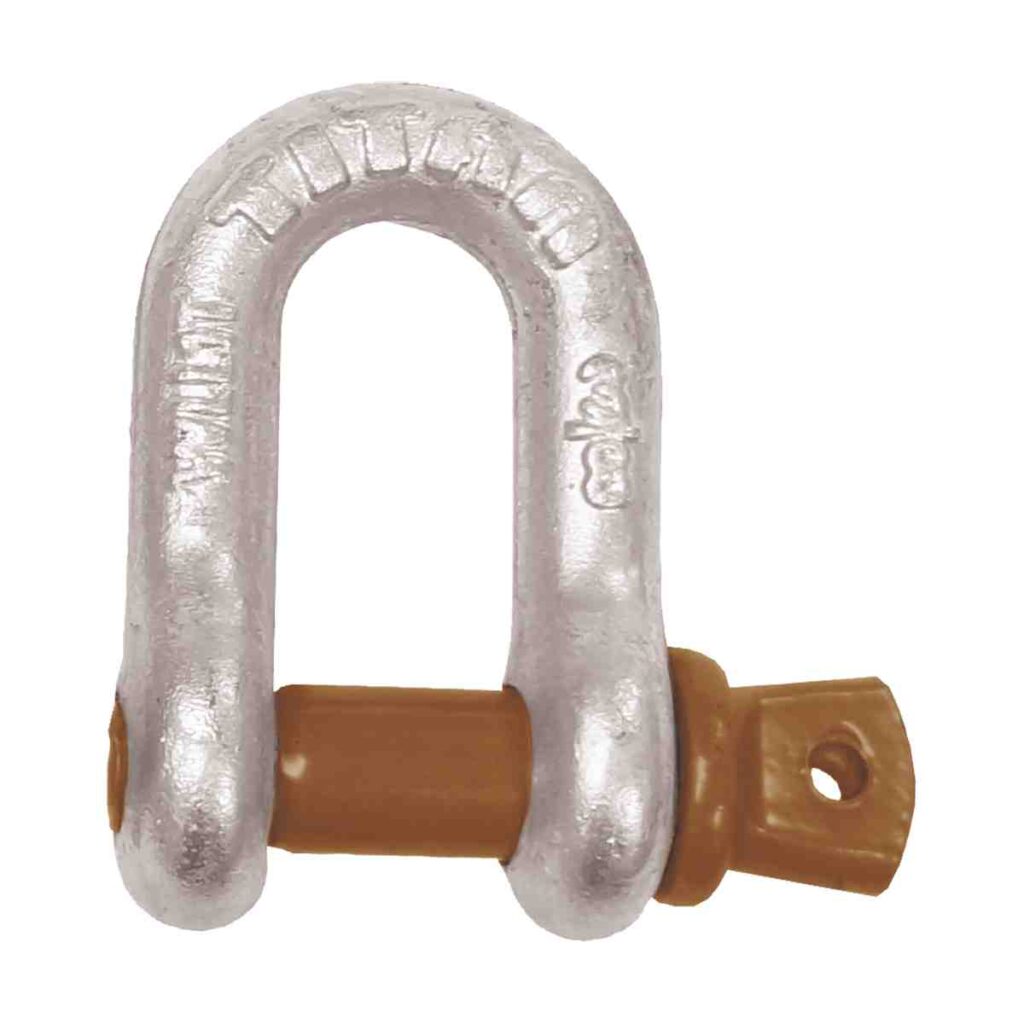

  • Titan Tested ‘D’ Shackle – Galvanised
