SPX Bilge Blowers - AirV Extra Heavy Duty

SPX Bilge Blowers – AirV Extra Heavy Duty

Price range: $167.45 through $417.81
SKU: G176060

Description

Marine radial blowers designed for engine compartment ventilation prior to start up. AirV heavy duty blowers are designed for air intake or extraction in bilges, galleys, accommodation and other compartments. Flange Mount and Flex Mount design with double ball bearing motor. High-impact anti-shock ABS body for AirV 3 and Nylon, glass-fibre reinforced body for AirV 4. Shaft and screws in stainless steel, consistently rated.

Additional information

Variation:

176060 – JOHNSON PUMP 3 FLANGE MOUNT 3-280 12V, 176062 – JOHNSON PUMP 3 FLANGE MOUNT 3-280 24V, 176064 – JOHNSON PUMP 4 FLANGE MOUNT 4-550 12V, 176066 – JOHNSON PUMP 4 FLANGE MOUNT 4-550 24V, 176068 – JOHNSON PUMP 4 FLANGE MOUNT 4-750 12V, 176070 – JOHNSON PUMP 4 FLANGE MOUNT 4-750 24V, 176072 – JOHNSON PUMP 4 FLANGE MOUNT 4-1000 24V, 176074 – JOHNSON PUMP 4 FLEX MOUNT 4-550 12V, 176076 – JOHNSON PUMP 4 FLEX MOUNT 4-550 24V, 176078 – JOHNSON PUMP 4 FLEX MOUNT 4-750 12V, 176080 – JOHNSON PUMP 4 FLEX MOUNT 4-750 24V, 176082 – JOHNSON PUMP 4 FLEX MOUNT 4-1000 24V

Dimensions
Weight0.95 kg
Dimensions21 × 22 × 21 cm
BLA CodeDescriptionPower v / ampMountCapacity m3/h | cfmDimensions HxWxL mmPort Connections Inlet Dia. mm / Oulet Dia. mm
176060AirV 3-28012 / 3.9Flange280 / 163198 x 171 x 19575 / 92 x 80
176062AirV 3-28024 / 2.5Flange280 / 163197 x 173 x 19575 / 92 x 80
176064AirV 4-55012 / 12.5Flange550 / 324277 x 259 x 160100 / 146 x 118
176066AirV 4-55024 / 7Flange550 / 324277 x 259 x 160100 / 146 x 118
176068AirV 4-75012 / 14.5Flange750 / 441277 x 257 x 181150 / 146 x 118
176070AirV 4-75024 / 8.5Flange750 / 441277 x 257 x 181150 / 146 x 118
176072AirV 4-100024 / 15.5Flange1000 / 589278 x 258 x 203150 / 146 x 118
176074AirV 4-55012 / 12.5Flex550 / 324296 x 257 x 161100 / 110
176076AirV 4-55024 / 7Flex550 / 324296 x 257 x 161100 / 110
176078AirV 4-75012 / 14.5Flex750 / 441297 x 257 x 182150 / 110
176080AirV 4-75024 / 8.5Flex750 / 441297 x 257 x 182150 / 110
176082AirV 4-100024 / 15Flex1000 / 589296 x 257 x 201150 / 110

  • Lewmar® Spare Parts – Insect Screens – To Suit Standard Portlight

    Price range: $96.48 through $123.31

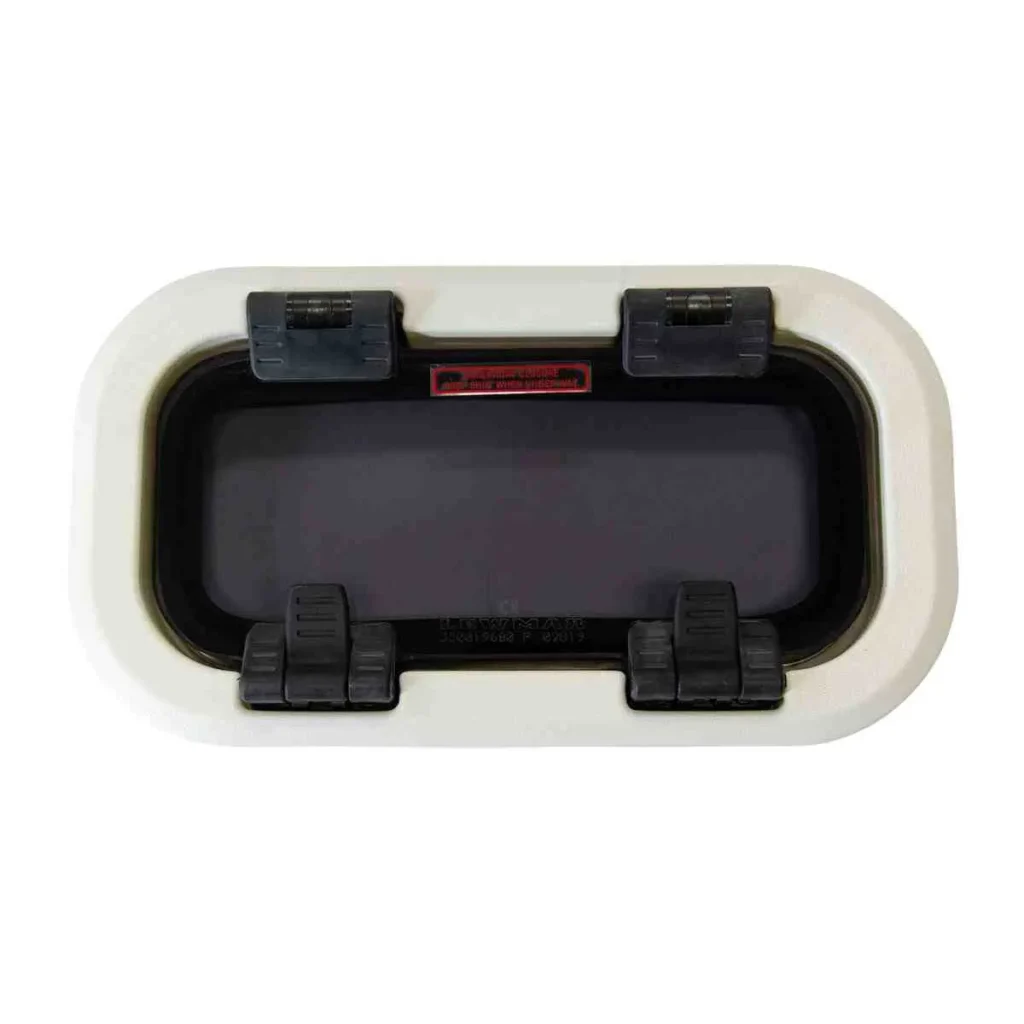

  • Lewmar® Portlight – Standard
