Description
304 grade stainless steel cheeks with single, brass bushed nylon sheave. Swivelling bale head. Heavy duty construction for commercial applications.
MWL – Maximum Working Load
-28%

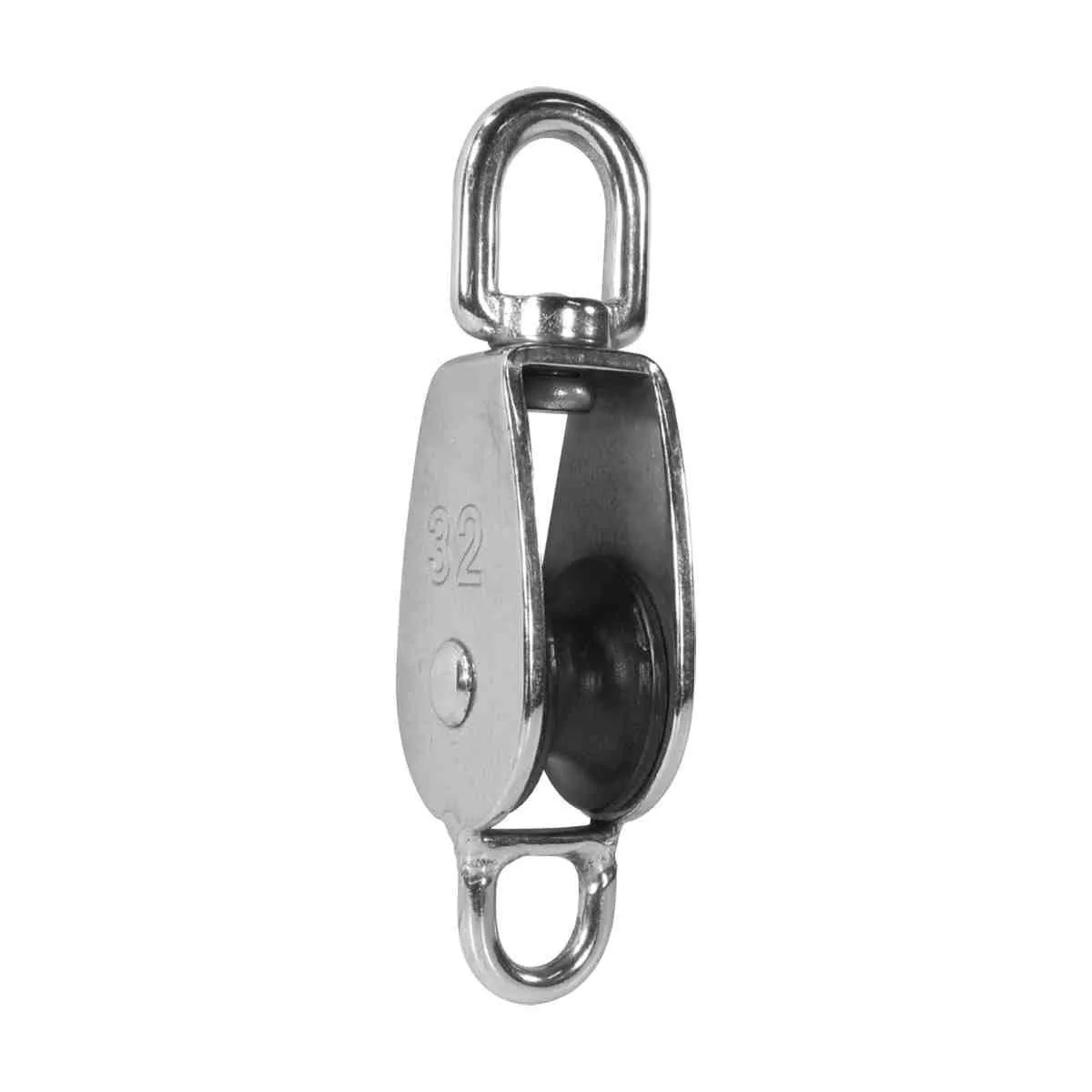

Single Block And Beckets – Stainless Steel
Price range: $20.27 through $32.34
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Sheave Dia. mm | Max. Rope Dia. mm | A mm | B mm | C mm | D mm | MWL kg |
|---|---|---|---|---|---|---|---|
| 166532 | 25 | 10 | 82 | 30 | 23 | 13 | 375 |
| 166534 | 32 | 12 | 114 | 36 | 27 | 14 | 425 |
| 166536 | 50 | 14 | 148 | 54 | 39 | 19 | 700 |
