Description
For MR/Alpha I Units S/N 6854393-OD469858
Contains
-28%

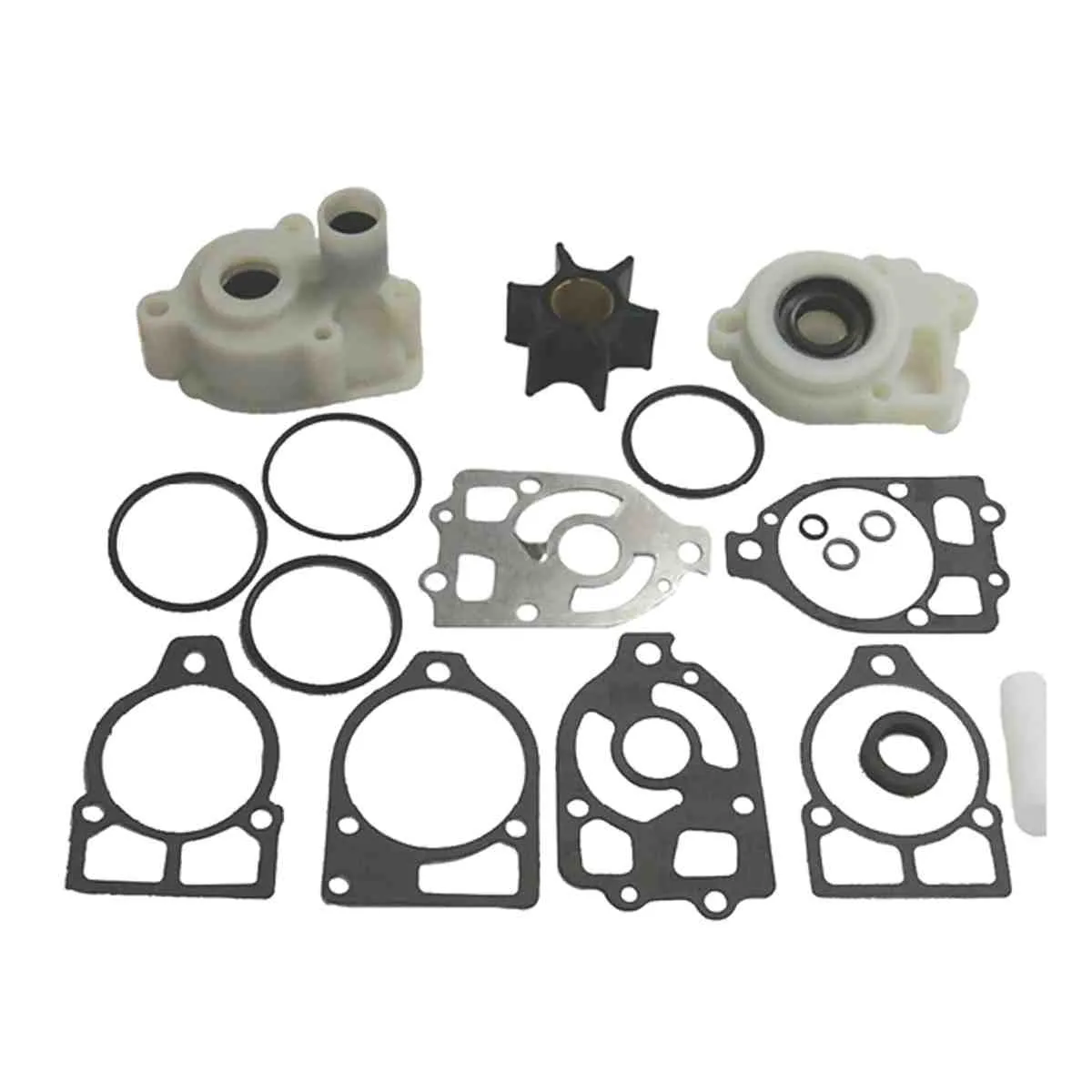

Sierra® Water Pump Kit – Mercruiser
Original price was: $149.90.$108.02Current price is: $108.02.
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Description | O.E # | Qty |
|---|---|---|---|
| S18-3109 | Water Tube | 23-29804 | 1 |
| S18-3017 | Impeller | 47-89984 | 1 |
| S18-3116 | Housing | 46-96148A1 | 1 |
| S18-3420 | Water Pump Base | 46-44292A3 | 1 |
| S18-2919 | Water Pump Base to Gear Housing Gasket | 27-42631-1 | 1 |
| S18-3110 | Grommet | 26-38970 | 1 |
| S18-2945 | Gear Housing Drain Screw Gasket | 26-20260, 12-19183 | 2 |
| S18-2826 | Water Pump Base to Gear Housing Gasket | 27-85610-1 | 1 |
| S18-2914 | Lower Water Pump to Wear Plate Gasket | 27-85608-1 | 1 |
| S18-2915 | Upper Water Pump to Wear Plate Gasket | 27-85609-1 | 1 |
| S18-2944 | Seal Ring | 26-45577 | 1 |
| S18-3117 | Plate | 32435 | 1 |
| S18-7158 | O-Ring | 25-30613 | 1 |
| S18-7162 | O-Ring | 25-33145 | 1 |
| S18-7173 | O-Ring | 25-30224 | 1 |
| S18-7176 | O-Ring | 25-90011 | 1 |
| S18-2801 | Water Pump Gasket | 27-32438 | 1 |
| S18-7196 | O-Ring | 25-38099 | 1 |
| S18-7426 | O-Ring | 35-30271 | 1 |
| Model | Serial No. | Complete Water Pump Kit | Upper Pump Housing | Upper Pump Kit | Water Pump Base | Impeller Repair Kit (no housing) | Impeller |
|---|---|---|---|---|---|---|---|
| #1 Units with plastic flush screw in gear housing | 2495186 – 2763441 | S18-3321 | S18-3116 | S18-3517 | S18-3421 | S18-3217 | S18-3017 |
| #1 Units w/o flush screw in gear housing | 2763442 – 6854392 | S18-3317 1 | S18-3116 | S18-3517 | S18-3417 1 | S18-3217 | S18-3017 |
| MR/ALPHA I | 6854393 – 0D594568 | S18-3320 | S18-3116 | S18-3517 | S18-3420 | S18-3217 | S18-3017 |
| ALPHA I – Generation II & Vazer | 0D494569 & ABOVE | S18-3147 | — | S18-3570 | — | S18-3214 | S18-3056 |
| BRAVO/Inboards w/ Plastic pump body | 3040411 & ABOVE | — | — | S18-3150 | — | S18-3318 | S18-3087 |
| BRAVO/Inboards w/ Brass pump body | 0M100001 & ABOVE | — | — | S18-3160-1 | — | S18-3016-1 | — |
