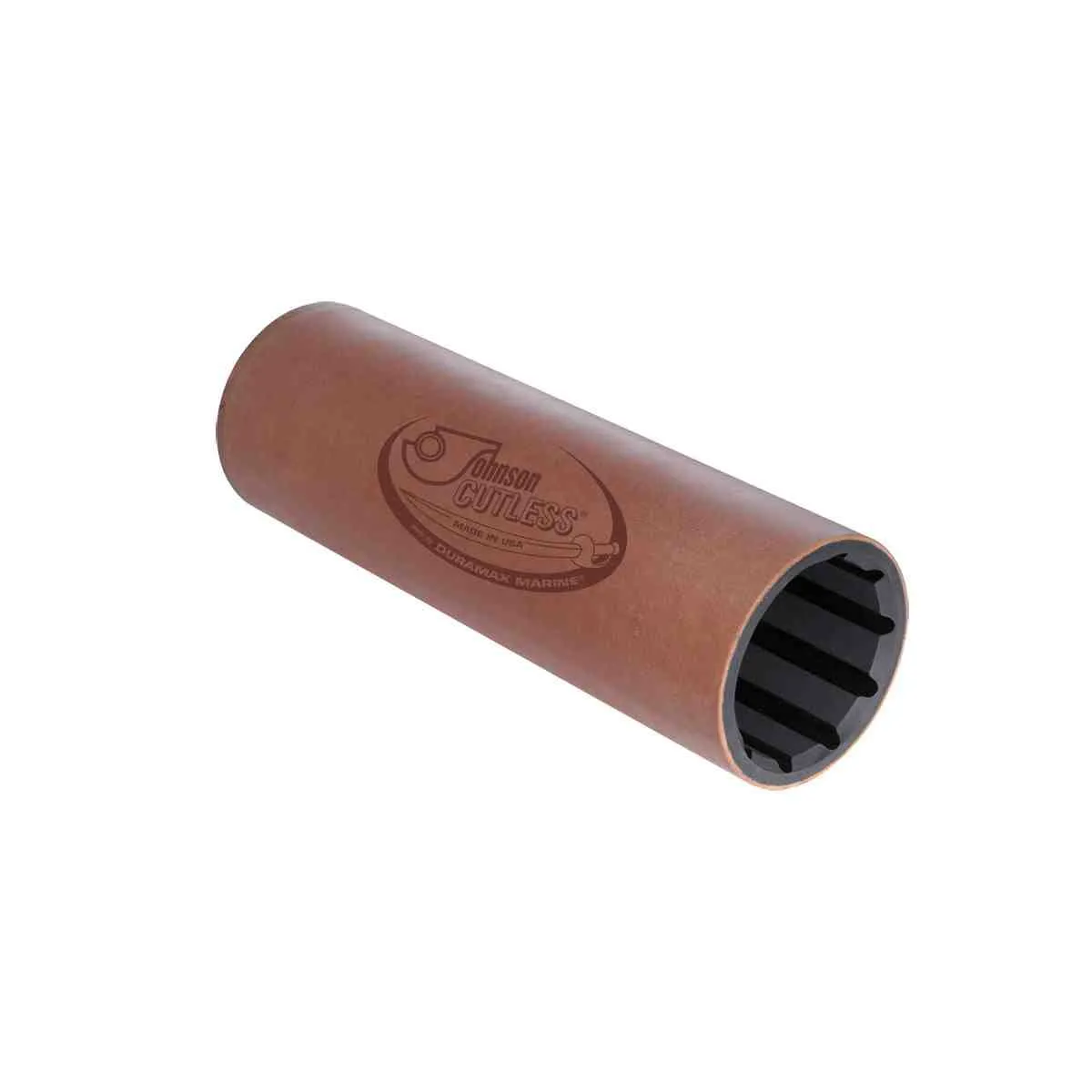

Non-Metallic Sleeve Cutless® Bearing – Imperial
$199.90 – $1,964.90
Description
Manufactured with a non-metallic outer sleeve designed for applications where corrosion or electrolysis may be of some concern. The bearing features a dense outer case structure of engineered reinforced thermo plastic for rigidity and fit. The specially compounded nitrile rubber is securely bonded to the shell with all tolerances maintained to ensure proper lubrication integrity. Johnson employs the highest quality materials that are inherently resistant to all known chemicals, oil and grease to ensure a non-corrosive anti-electrolytic bearing. Johnson non-metallic Cutless® brand propeller shaft bearings have full type approval from the American Bureau of Shipping and are available in imperial and metric sizes for shaft diameter from 3/4″ to 6-1/2″ (19.05mm to 165.10mm).
Additional information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 13 × 6 × 6 cm |
| Variation: | 190150 – CUTLESS NON METALIC IMP ALDA 3/4 '' X 1 '' 1 1/4 '' X 3 '', 190152 – CUTLESS NON METALIC IMP ALICE 7/8 '' X1 1/4 '' X3 1/2 '', 190154 – CUTLESS NON METALIC IMP ANNE 7/8 '' X1 3/8 '' X3 1/2 '', 190156 – CUTLESS NON METALIC IMP ARDELE 7/8 '' X1 1/2 '' X3 1/2 '', 190160 – CUTLESS NON METALIC IMP CARLA 1 '' X2 '' X4 '', 190162 – CUTLESS NON METALIC IMP CINDY 1 1/8 '' X1 5/8 '' X4 1/2 '', 190164 – CUTLESS NON METALIC IMP CONNIE 1 1/8 '' X1 3/4 '' X4 1/2 '', 190166 – CUTLESS NON METALIC IMP CORA 1 1/8 '' X2 '' X4 1/2 '', 190204 – CUTLESS NON METALIC IMP BABE 1 '' X1 1/4 '' X4 '', 190217 – CUTLESS NON METALIC IMP BEAM 1 1/8 '' X1 1/2 '' X4 1/2 '', 190218 – CUTLESS NON METALIC IMP BECKY 1 '' X1 3/8 X4 '', 190222 – CUTLESS NON METALIC IMP BETTY 1 '' X1 1/2 X4 '', 190243 – CUTLESS NON METALIC IMP BRUT 1 3/4 '' X2 1/2 '' X7 '', 190254 – CUTLESS NON METALIC IMP CANDY NM 1 '' X1-5/8 '' X4 '', 190262 – CUTLESS NON METALIC IMP CEIL 1 18 '' X1 12 '' X4 12 '', 190286 – CUTLESS NON METALIC IMP DEENA 1 1/4 '' X1 1/2 '' X5, 190288 – CUTLESS NON METALIC IMP DELLA 1 1/4 '' X1 3/4 '' X5 '', 190298 – CUTLESS NON METALIC IMP DORIS 1 1/4 '' X2 '' X5 '', 190302 – CUTLESS NON METALIC IMP EDNA 1 3/8 '' X1 7/8 '' X5 1/2 '', 190304 – CUTLESS NON METALIC IMP ELLEN 1 3/8 '' X2 '' X5 1/2 '', 190307 – CUTLESS NON METALIC IMP ERMA 1 3/8 '' X2 3/8 '' X5 1/2 '', 190310 – CUTLESS NON METALIC IMP EVA 1 1/2 '' X2 '' X6 '', 190314 – CUTLESS NON METALIC IMP FANNY 1 1/2 '' X2 3/8 '' X6 '', 190315 – CUTLESS NON METALIC IMP FLO 1 5/8 '' X2 1/8 '' X6 1/2 '', 190316 – CUTLESS NON METALIC IMP GLENDA 1 3/4 '' X2 3/8 '' X7 '', 190317 – CUTLESS NON METALIC IMP GLENNIS 1 3/4 '' X2 1/2 '' X7 '', 190318 – CUTLESS NON METALIC IMP GLORIA 1 3/4 '' X2 5/8 '' X7 '', 190320 – CUTLESS NON METALIC IMP GWEN 1 7/8 '' X2 5/8 '' X7 1/2 '', 190322 – CUTLESS NON METALIC IMP HAZEL 2 '' X2 5/8 '' X8 '', 190326 – CUTLESS NON METALIC IMP INEZ 2 1/4 '' X2 15/16 '' X9 '', 190328 – CUTLESS NON METALIC IMP INGRID 2 1/4 '' X3 1/8 X9 '', 190330 – CUTLESS NON METALIC IMP IRENE 2 1/4 '' X3 3/8 '' X9 '', 190332 – CUTLESS NON METALIC IMP IRIS 2 1/4 '' X3 '' X9 '', 190334 – CUTLESS NON METALIC IMP JENNY 2 3/8 '' X3 3/8 '' X9 1/2 '', 190336 – CUTLESS NON METALIC IMP JOAN 2 1/2 '' X3 1/8 '' X10 '', 190338 – CUTLESS NON METALIC IMP JOSIE 2 1/2 '' X3 3/8 '' X10 '', 190340 – CUTLESS NON METALIC IMP JOYCE2 5/8 '' X3 3/8 '' X10 1/2, 190342 – CUTLESS NON METALIC IMP JUNE 2 3/4 '' X3 3/8 '' X11 '', 190344 – CUTLESS NON METALIC IMP KATE 2 3/4 '' X3 1/2 '' X11 '', 190346 – CUTLESS NON METALIC IMP KATHY 2 3/4 '' X3 3/4 '' X11 '', 190348 – CUTLESS NON METALIC IMP KIM 3 '' X3 3/4 '' X12 '', 190349 – CUTLESS NON METALIC IMP LISA 3 1/4 '' X4 1/4 '' X13, 190350 – CUTLESS NON METALIC IMP LAURA 3 '' X4 '' X12 '', 190351 – CUTLESS NON METALIC IMP LINDA 3 1/4 '' X4 '' X13 '', 190353 – CUTLESS NON METALIC IMP LOIS 3 3/8 '' X4 1/2 '' X13 1/2 '', 190354 – CUTLESS NON METALIC IMP MARIE 3 1/2 X4 1/2 '' X14 '', 190356 – CUTLESS NON METALIC IMP NANCY 3 3/4 '' X5 '' X15 '', 190360 – CUTLESS NON METALIC IMP OLGA 4 '' X5 '' X16 '' |
| BLA Code | Description | Supplier Code | Shaft Dia in | Outside Dia in | Length in | Shell Thickness in | Weight kg |
|---|---|---|---|---|---|---|---|
| 190150 | Cutless Bearing Alda ¾” x ¼” x 3 | ALDA | ¾ | ¼ | 3 | 1/8 | 0.01 |
| 190152 | Cutless Bearing Alice 7/8″ x 1¼” x 3½” | ALICE | 7/8 | 1¼ | 3½ | 3/64 | 0.01 |
| 190154 | Cutless Bearing Anne 7/8″ x 13/8″ x 3½” | ANNE | 7/8 | 1 3/8 | 3½ | 1/8 | 0.01 |
| 190156 | Cutless Bearng Ardele 7/8″ x 1½” x 3½” | ARDELE | 7/8 | 1½ | 3½ | 1/8 | 0.01 |
| 190160 | Cutless Bearing Carla Nm 1″ x 2″ x 4″ | CARLA | 1 | 2 | 4 | 1/8 | 0.02 |
| 190162 | Cutless Bearing Cindy 11/8″ x 15/8″ x 4½” | CINDY | 1 1/8 | 1 5/8 | 4½ | 1/8 | 0.01 |
| 190164 | Cutless Bearing Connie 11/8″ x 13/4″ x 4½” | CONNIE | 1 1/8 | 1 3/4 | 4½ | 1/8 | 0.02 |
| 190166 | Cutless Bearing Cora 11/8″ x 2″ x 4½” | CORA | 1 1/8 | 2 | 4½ | 1/10 | 0.02 |
| 190204 | Cutless Bearing Babe 1″ x 1¼” x 4″ | BABE | 1 | 1¼ | 4 | ¼ | 0.068 |
| 190217 | Cutless Bearing Beam 11/8″ x 1½” x 4½”Bs | BEAM | 1 1/8 | 1½ | 4½ | 1/10 | 0.3 |
| 190218 | Cutless Bearing Becky 1″ x 13/8 x 4″ | BECKY | 1 | 1 3/8 | 6 | 3/64 | 0.09 |
| 190222 | Cutless Bearing Betty 1″ x 1½ x 4″ | BETTY | 1 | 1 1/2 | 4 | 1/8 | 0.09 |
| 190243 | Cutless Bearing Brut 13/4″ x 2½” x 7″ Bs | BRUT | 1 3/4 | 2½ | 7 | 3/32 | 1.13 |
| 190254 | Cutless Bearing Candy Nm 1″ x 15/8″ x 4″ | CANDY | 1 | 1 5/8 | 4 | 1/8 | 0.114 |
| 190262 | Cutless Bearng Ceil 11/8″ x 1½” x 4½” | CEIL | 1 1/8 | 1 1/2 | 4½ | 3/64 | 0.114 |
| 190286 | Cutless Bearing Deena 1¼” x 1½” x 5 | DEENA | 1¼ | 1 1/2 | 5 | 3/64 | 0.136 |
| 190288 | Cutless Bearing Della 1¼” x 1¾” x 5″ | DELLA | 1¼ | 1 3/4 | 5 | 1/8 | 0.159 |
| 190298 | Cutless Bearing Doris 1¼” x 2″ x 5″ | DORIS | 1¼ | 2 | 5 | 1/8 | 0.227 |
| 190299 | Cutless Bearing Dotty 1¼” x 21/8″ x 5″ | DOTTY | 1¼ | 2 1/8 | 5 | 1/8 | 0.3 |
| 190302 | Cutless Bearng Edna 13/8″ x 17/8″ x 5½” | EDNA | 1 3/8 | 1 7/8 | 51/2 | 1/8 | 0.205 |
| 190304 | Cutless Bearing Ellen 13/8″ x 2″ x 5½” | ELLEN | 1 3/8 | 2 | 51/2 | 1/8 | 0.227 |
| 190306 | Cutless Bearng Elsa 13/8″ x 21/8″ x 5½” | ELSA | 1 3/8 | 2 1/8 | 51/2 | 1/8 | 0.295 |
| 190307 | Cutless Bearng Erma 13/8″ x 23/8″ x 5½” | ERMA | 1 3/8 | 2 3/8 | 5½ | 1/8 | 0.4 |
| 190310 | Cutless Bearing Eva 1½” x 2″ x 6″ | EVA | 1 1/2 | 2 | 6 | 1/8 | 0.227 |
| 190314 | Cutless Bearing Fanny 1½” x 23/8″ x 6″ | FANNY | 1 1/2 | 2 3/8 | 6 | 1/8 | 0.4 |
| 190315 | Cutless Bearing Flo 15/8″ x 21/8″ x 6½” | FLO | 1 5/8 | 2 1/8 | 6½ | 1/8 | 0.3 |
| 190316 | Cutless Bearing Glenda 1¾” x 23/8″ x 7″ | GLENDA | 1 3/4 | 2 3/8 | 7 | 1/8 | 0.386 |
| 190317 | Cutless Bearing Glennis 1¾” x 2¾”x 7″ | GLENNIS | 1 3/4 | 2¾ | 7 | 3/32 | 0.4 |
| 190318 | Cutless Bearing Gloria 1¾” x 25/8″ x 7″ | GLORIA | 1 3/4 | 2 5/8 | 7 | 1/8 | 0.455 |
| 190320 | Cutless Bearng Gwen 17/8″ x 25/8″ x 7½” | GWEN | 1 7/8 | 2 5/8 | 71/2 | 1/8 | 0.455 |
| 190322 | Cutless Bearing Hazel 2″ x 25/8″ x 8″ | HAZEL | 2 | 2 5/8 | 8 | 1/8 | 0.455 |
| 190324 | Cutless Bearing Helen 2″ x 3″ x 8″ | HELEN | 2 | 3 | 8 | 1/8 | 0.705 |
| 190326 | Cutless Bearing Inez 2¼” x 215/16″ x 9″ | INEZ | 2¼ | 3 | 9 | 1/8 | 0.636 |
| 190328 | Cutless Bearing Ingrid 2¼” x 31/8 x 9″ | INGRID | 2¼ | 31/8 | 9 | 1/8 | 0.841 |
| 190330 | Cutless Bearing Irene 2¼” x 33/8″ x 9″ | IRENE | 2¼ | 33/8 | 9 | 1/8 | 1 |
| 190332 | Cutless Bearing Iris 2¼” x 3″ x 9″ | IRIS | 2¼ | 3 | 9 | 1/8 | 0.682 |
| 190334 | Cutless Bearing Jenny 23/8″ x 33/8″ x 9½” | JENNY | 2 3/8 | 33/8 | 91/2 | 1/8 | 0.977 |
| 190336 | Cutless Bearing Joan 2½” x 31/8″ x 10″ | JOAN | 2 1/2 | 3 1/8 | 10 | 1/8 | 0.659 |
| 190338 | Cutless Bearing Josie 2½” x 33/8″ x 10″ | JOSIE | 2 1/2 | 33/8 | 10 | 1/8 | 0.795 |
| 190340 | Cutless Bearng Joyce 25/8″ x 33/8″ x 10½” | JOYCE | 2 5/8 | 33/8 | 101/2 | 1/8 | 0.841 |
| 190342 | Cutless Bearing June 2¾” x 33/8″ x 11″ | JUNE | 2 3/4 | 33/8 | 11 | 1/8 | 0.795 |
| 190346 | Cutless Bearing Kathy 2¾” x 3¾” x 11″ | KATHY | 2 3/4 | 33/4 | 11 | 1/8 | 1.205 |
| 190348 | Cutless Bearing Kim 3″ x 3¾” x 12″ | KIM | 3 | 33/4 | 12 | 1/8 | 1.09 |
| 190350 | Cutless Bearing Laura 3″ x 4″ x 12″ | LAURA | 3 | 4 | 12 | 1/8 | 1.364 |
| 190352 | Cutless Bearing Mandy 3½” x 4¼” x 14″ | MANDY | 31/2 | 4¼ | 14 | 1/8 | 1.77 |
| 190354 | Cutless Bearing Marie 3½” x 4½” x 14″ | MARIE | 31/2 | 4½ | 14 | 1/8 | 1.82 |
| 190356 | Cutless Bearing Nancy 3¾” x 5″ x 15″ | NANCY | 33/4 | 5 | 15 | 3/16 | 2.66 |
| 190358 | Cutless Bearing Neva 3¾” x 5¼” x 15″ | NEVA | 33/4 | 5¼ | 15 | 3/16 | 3.25 |
| 190360 | Cutless Bearing Olga 4″ x 5″ x 16″ | OLGA | 4 | 5 | 16 | 3/16 | 2.16 |
| 190362 | Cutless Bearing Olive 4″ x 5¼” x 16″ | OLIVE | 4 | 5¼ | 16 | 3/16 | 2.91 |
| 190364 | Cutless Bearing Zelda 6″ x 7½” x 24″ | ZELDA | 6 | 7½ | 24 | ¼ | 7.27 |
| 190344 | Cutless Bearing Kate 23/4″ x 3½”x 11″ | KATE | 2 3/4 | 3½ | 11 | 1/8 | 1.1 |
| 190349 | Cutless Bearing Lisa 31/4″ x 41/4″ x 13 | LISA | 3¼ | 4¼ | 13 | 1/8 | 1.2 |
| 190351 | Cutless Bearing Linda 31/4″ x 4″ x 13″ | LINDA | 3¼ | 4 | 13 | 1/8 | 1.2 |
| 190353 | Cutless Bearing Lois 33/8″ x 4½” x 13½” | LOIS | 33/8 | 4½ | 13½ | 1/8 | 2 |
| 190355 | Cutless Bearing Mary 33/4″ x 4½” x 15″ | MARY | 33/4 | 4½ | 15 | 1/8 | 1.6 |
| 190374 | Cutless Bearing Paula 4½” x 5½” x 18″ | PAULA | 4½ | 5½ | 18 | 3/16 | 3.3 |
| 190380 | Cutless Bearing Ruth 5″ x 61/8″ x 20″ | RUTH | 5 | 61/8 | 20 | ¼ | 4.3 |
| 190382 | Cutless Bearing Sally 5″ x 6½” x 20″ | SALLY | 5 | 6½ | 20 | ¼ | 4.9 |
