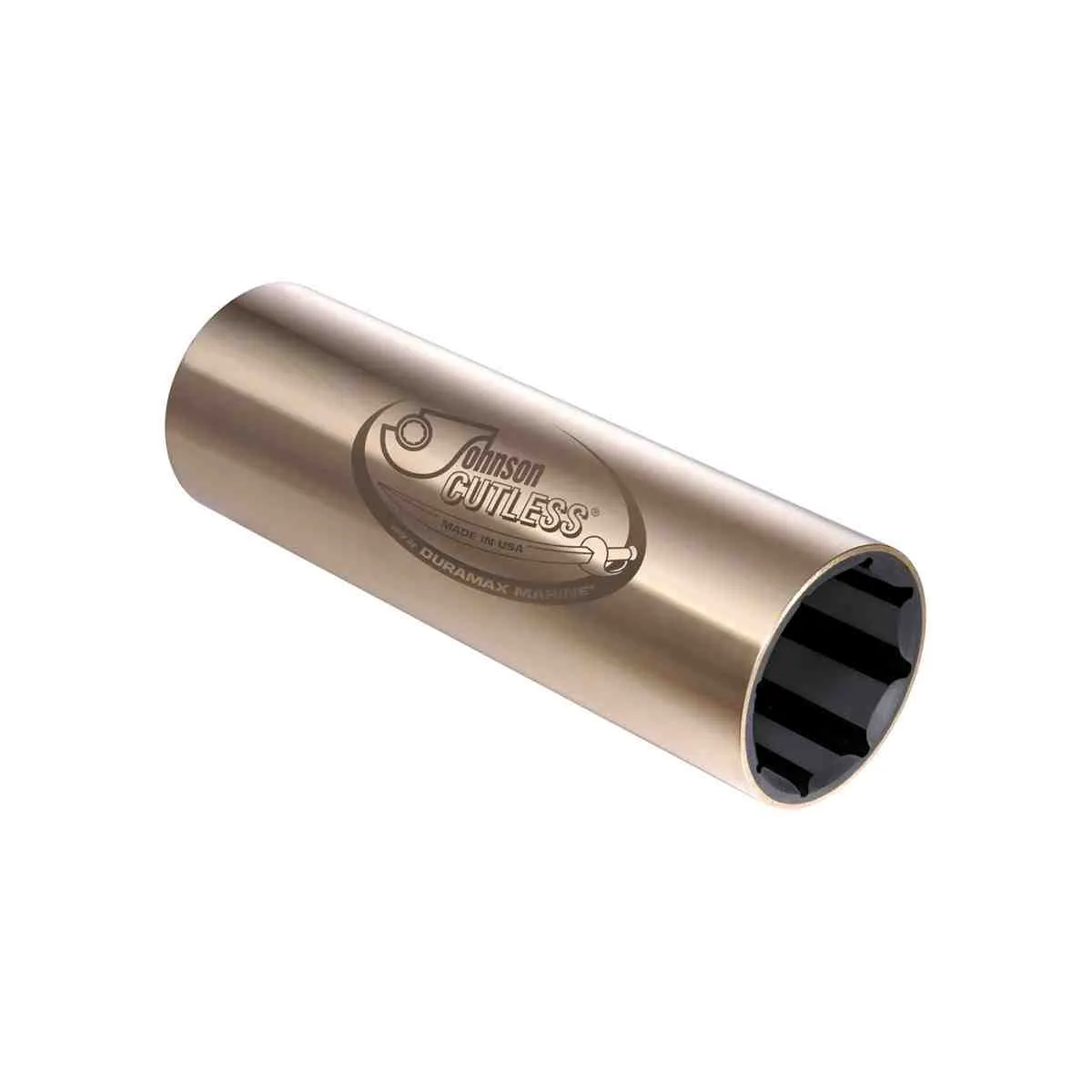

Naval Brass Sleeve Cutless® Bearing – Metric

$301.50$1,228.05
SKU: G190402

Description

Manufactured with a non-metallic outer sleeve designed for applications where corrosion or electrolysis may be of some concern. The bearing features a dense outer case structure of engineered reinforced thermo plastic for rigidity and fit. The specially compounded nitrile rubber is securely bonded to the shell with all tolerances maintained to ensure proper lubrication integrity. Johnson employs the highest quality materials that are inherently resistant to all known chemicals, oil and grease to ensure a non-corrosive anti-electrolytic bearing. Johnson non-metallic Cutless® brand propeller shaft bearings have full type approval from the American Bureau of Shipping and are available in imperial and metric sizes for shaft diameter from 3/4″ to 6-1/2″ (19.05mm to 165.10mm).

Additional information

Weight 0.0001 kg
Dimensions 0.1 × 0.1 × 0.1 cm
Variation:

190402 – CUTLESS BR 870 30X45X120MM, 190410 – CUTLESS BR 870 40X55X160MM, 190416 – CUTLESS BR 870 50X70X200MM, 190422 – CUTLESS BR 870 80X100X320MM

User Reviews

0.0 out of 5
0
0
0
0
0

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

BLA Code Description Supplier Code Shaft Diameter mm Outside Diameter mm Length mm Metal Thickness mm Weight kg
190402 Cutless Bearing Br 870 30 x 45 x 120mm Bs 870304100 30 45 120 3.07 0.5
190410 Cutless Bearing Br 870 40 x 55 x 160mm Bs 870404100 40 55 160 3.07 0.8
190416 Cutless Bearing Br 870 50 x 70 x 200mm Bs 870504100 50 70 200 3.26 1.4
190422 Cutless Bearing Br 870 80 x 100 x 320mm Bs 870804100 80 100 320 3.17 3.5
