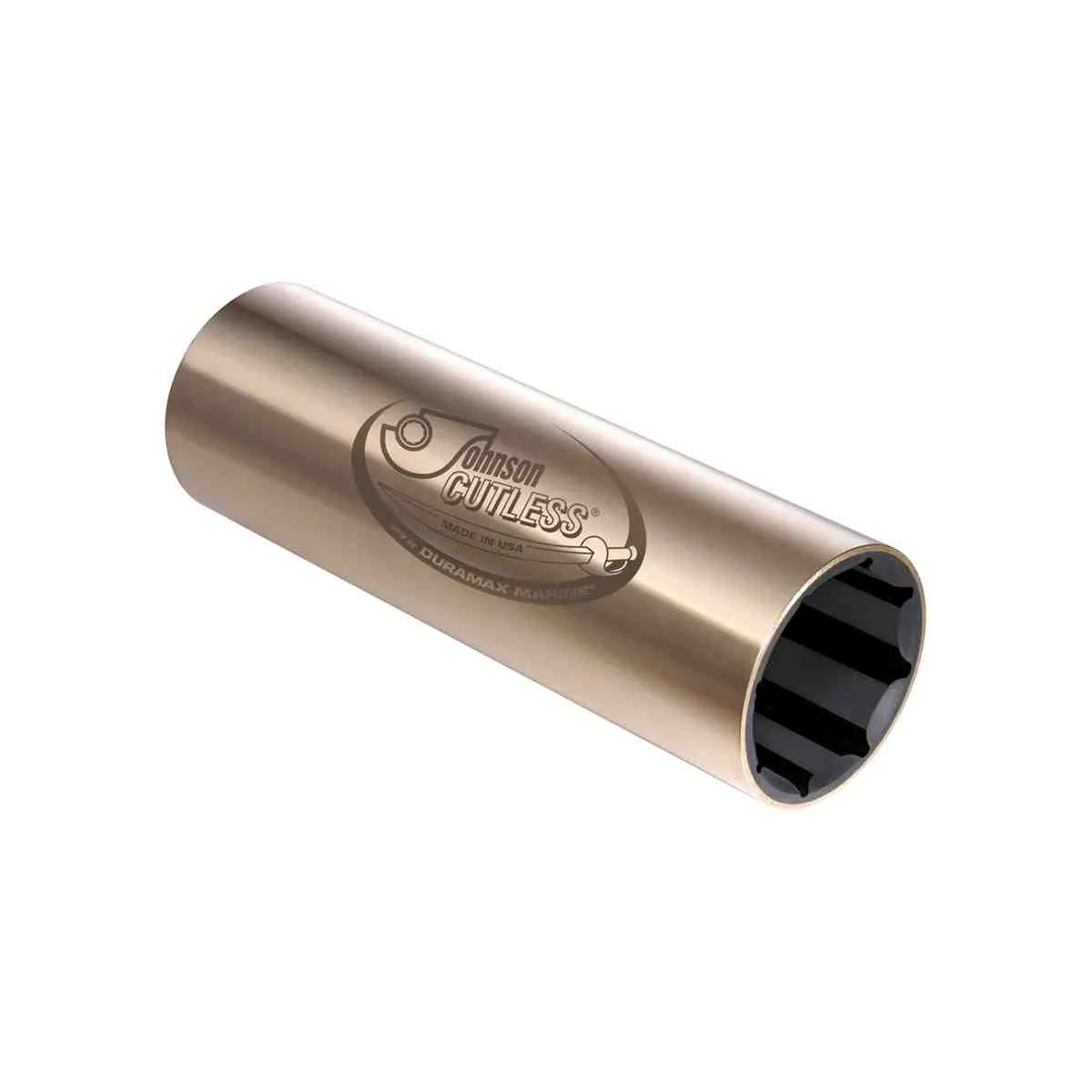

Naval Brass Sleeve Cutless® Bearing - Imperial

Naval Brass Sleeve Cutless® Bearing – Imperial

Price range: $214.92 through $293.79
SKU: G190200

Description

Manufactured with a non-metallic outer sleeve designed for applications where corrosion or electrolysis may be of some concern. The bearing features a dense outer case structure of engineered reinforced thermo plastic for rigidity and fit. The specially compounded nitrile rubber is securely bonded to the shell with all tolerances maintained to ensure proper lubrication integrity. Johnson employs the highest quality materials that are inherently resistant to all known chemicals, oil and grease to ensure a non-corrosive anti-electrolytic bearing. Johnson non-metallic Cutless® brand propeller shaft bearings have full type approval from the American Bureau of Shipping and are available in imperial and metric sizes for shaft diameter from 3/4″ to 6-1/2″ (19.05mm to 165.10mm).

Additional information

Variation:

190200 – CUTLESS IMP ABLE 3/4 '' X1 1/4 X3 '', 190202 – CUTLESS IMP APEX 7/8 '' X1 3/8 '' X3 1/2 '', 190206 – CUTLESS IMP BACK 1 '' X1 1/4 '' X4 '', 190212 – CUTLESS IMP BALE 1 '' X 1 1/2 '' X4 '', 190214 – CUTLESS IMP BAND 1 '' X1 5/8 '' X4 '', 190216 – CUTLESS IMP BASE 1 '' X2 '' X4 '', 190220 – CUTLESS IMP BELT 1 1/8 '' X1 5/8 '' X4 1/2 ''

Dimensions
Weight0.2 kg
Dimensions13 × 6 × 6 cm
BLA CodeDescriptionSupplier CodeShaft Dia inOutside Dia inLength inMetal ThicknessWeight kg
190200Cutless Bearing Able ¾” x 1¼” x 3″ BsABLE0.751.2531/80.23
190202Cutless Bearing Apex 7/8″ x 13/8″ x 3½” BsAPEX7/81.3753.51/80.34
190206Cutless Bearing Back 1″ x 1¼” x 4″ BsBACK11.2543/640.23
190212Cutless Bearing Bale 1″ x 1½” x 4″ BsBALE11.541/80.34
190214Cutless Bearing Band 1″ x 15/8″ x 4″ BsBAND11.62541/80.45
190216Cutless Bearing Base 1″ x 2″ x 4″ BsBASE1241/80.57
190220Cutless Bearing Belt 11/8″ x 15/8″ x 4½” BsBELT1 1/81 5/84.51/80.45
