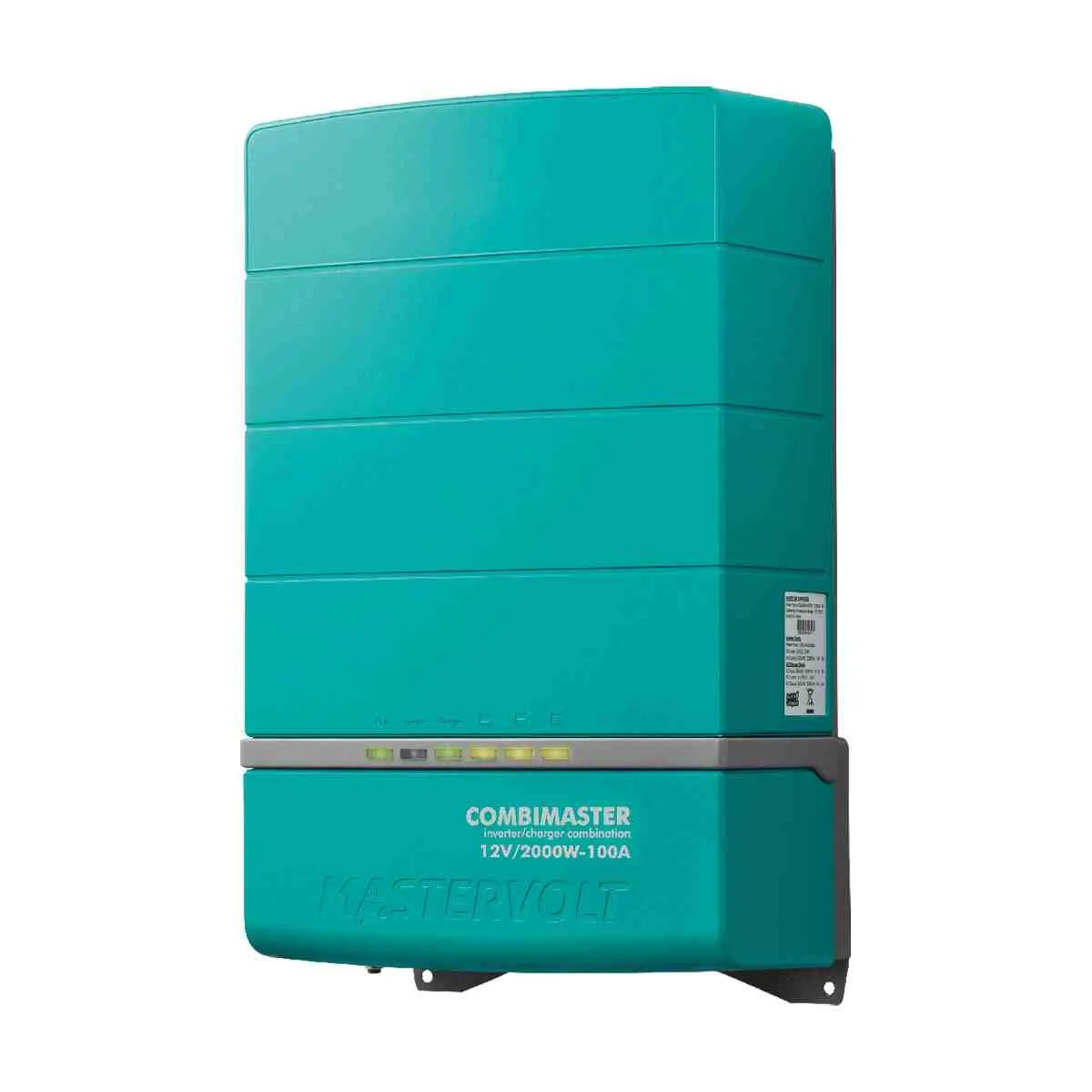

Mastervolt CombiMaster

Mastervolt CombiMaster

Price range: $1,592.70 through $2,187.92
SKU: G110260

Description

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Features
• Most compact and lightweight Combi in its class.
• Reliable, hum-free and longer operation from your batteries.
• Starts even the heaviest and most sensitive loads.
• Intelligent 3-step+ battery charger for faster and safer charging.
• Automatic switching between mains and inverter mode.
• Power Assist prevents blown mains fuses.
• Generator compatible.
• Integrated CZone*, MasterBus and NMEA 2000 communication.
• Quick installation with heavy duty connections.
• E-mark certified.

Remote Control and Monitoring options
• MasterBus compatible via SmartRemote or EasyView 5 display.
• CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
• NMEA 2000 compatible via 3rd party multifunctional display.

Additional information

Variation:

110260 – INVERTER/CHARGER 12V/2000VA-60A 230V, 110262 – INVERTER/CHARGER 12V/3000VA-100A 230V, 110264 – INVERTER/CHARGER 24V/2000VA-40A 230V, 110266 – INVERTER/CHARGER 24V/3000VA-60A 230V

Dimensions
Weight10.1151 kg
Dimensions50.04 × 40.89 × 25.15 cm
BLA Code110260110262110264110266
DescriptionCombimaster 12V/2000Va-60A 230VCombimaster 12V/3000Va-100A 230VCombimaster 24V/2000Va-40A 230VCombimaster 24V/3000Va-60A 230V
Replaces110455110456110465110466
Specifications Sine Wave Inverter
Nominal DC voltage12 V (10.2–6 V)12 V (10.2–16 V)24 V (20.4–32 V)24 V (20.4–32 V)
Output voltage230 V230 V230 V230 V
Output frequency50/60 Hz (configurable)50/60 Hz (configurable)50/60 Hz (configurable)50/60 Hz (configurable)
Output waveformtrue sinetrue sinetrue sinetrue sine
Continual power at 40°C, cos phi I2000 VA / 1600 W3000 VA / 2600 W2000 VA / 1600 W3000 VA / 2600 W
Peak power (30 sec)3000 VA / 2400 W4500 VA / 3900 W3000 VA / 2400 W4500 VA / 3900 W
Surge power (5 sec)4000 VA / 3200 W6000 VA / 5200 W4000 VA / 3200 W6000 VA / 5200 W
Max efficiency93%93%93%93%
Battery no-load power consumption20 W (on mode) / < 1 mA (off mode)30 W (on mode) / < 1 mA (off mode)20 W (on mode) / < 1 mA (off mode)30 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption10 W10 W10 W10 W
Synchronise with mainsyesyesyesyes
Specifications Battery Charger
Input voltage range170-280 V170-280 V170-280 V170-280 V
Max. input current6 A (adjustable)10 A (adjustable)8 A (adjustable)13 A (adjustable)
Max. charge current at 40 °C60 A at 14,25 V (configurable)100 A at 14,25 V (configurable)40 A at 28,5 V (configurable)60 A at 28.5 V (configurable)
Battery temperature sensoryes, includedyes, includedyes, includedyes, included
Battery voltage senseautomatic compensationautomatic compensationautomatic compensationautomatic compensation
Transfer System Specifications
AC input25 A (switched)25 A (switched)25 A (switched)25 A (switched)
AC output33 A38 A33 A38 A
AC input fuseyesyesyesyes
Transfer speed10 ms10 ms10 ms10 ms
Transfer voltage rangewide: 90–280 V / narrow: 170–280 Vwide: 90–280 V / narrow: 170–280 Vwide: 90–280 V / narrow: 170–280 Vwide: 90–280 V / narrow: 170–280 V
Transfer frequency range40-65 Hz40-65 Hz40-65 Hz40-65 Hz
General Specifications
Display/read outLED displayLED displayLED displayLED display
Dimensions, H x W x D371 x 284 x 155 mm448 x 284 x 155 mm371 x 284 x 155 mm448 x 284 x 155 mm
Weight kg6.9 kg9.3 kg6.9 kg9.3 kg
ApprovalsCE, E-mark, AZ/NZSCE, E-mark, AZ/NZSCE, E-mark, AZ/NZSCE, E-mark, AZ/NZS
Technical Specifications
Charge characteristicIUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurableIUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurableIUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurableIUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity180-500 Ah (based on gel batteries, may differ for other types)300-800 Ah (based on gel batteries, may differ for other types)120-320 Ah (based on gel batteries, may differ for other types)180-500 Ah (based on gel batteries, may differ for other types)
Ground relayyes, configurable by means of mechanical jumperyes, configurable by means of mechanical jumperyes, configurable by means of mechanical jumperyes, configurable by means of mechanical jumper
Temperature range (ambient temp.)`-25 °C to 60 °C, derating > 40 °C`-25 °C to 60 °C, derating > 40 °C`-25 °C to 60 °C, derating > 40 °C`-25 °C to 60 °C, derating > 40 °C
Coolingvario fanvario fanvario fanvario fan
Protection degreeIP23 (vertical mounting)IP23 (vertical mounting)IP23 (vertical mounting)IP23 (vertical mounting)
Safety classIEC protection class IIEC protection class IIEC protection class IIEC protection class I
Humidity protectionconformal coating, max. 95 % relative humidity, non condensingconformal coating, max. 95 % relative humidity, non condensingconformal coating, max. 95 % relative humidity, non condensingconformal coating, max. 95 % relative humidity, non condensing
Protectionsover-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltage
Power Assistyes, supports AC input with power from the batteryyes, supports AC input with power from the batteryyes, supports AC input with power from the batteryyes, supports AC input with power from the battery
Power Sharingyes, allows you to select AC Input fuse settingyes, allows you to select AC Input fuse settingyes, allows you to select AC Input fuse settingyes, allows you to select AC Input fuse setting
MasterBus compatibleyesyesyesyes
CZone / NMEA 2000 compatibleyesyesyesyes
