Marine Town® Deck Fillers – Cast Stainless Steel

Price range: $97.92 through $139.42
SKU: G192330

Description

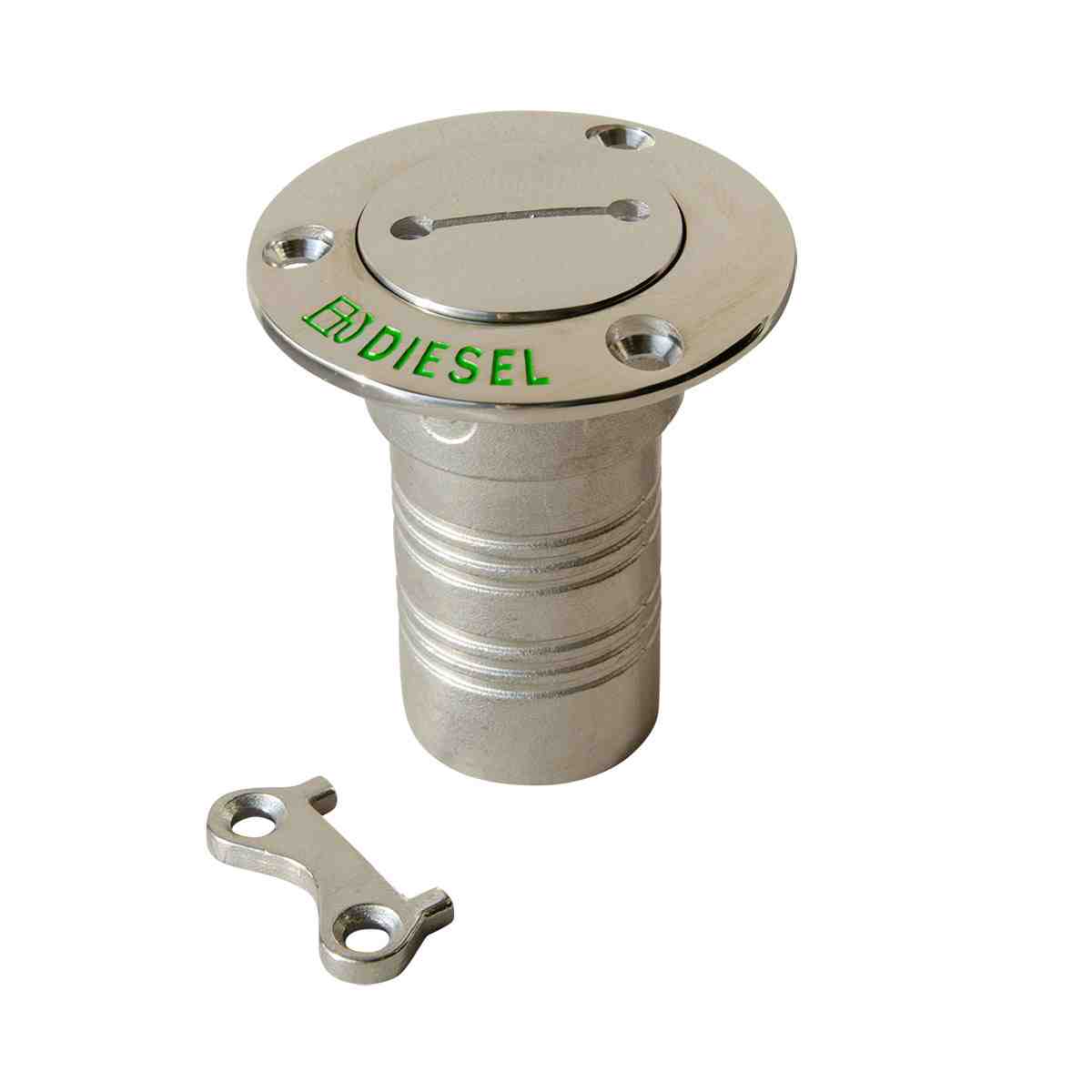

Flush mounted, investment cast, 316 grade stainless steel deck fillers. Features coarse thread for less chance of cross threading, rubber ‘O’ ring seal, cap retaining wire (excluding 192335) and finger key for ease of opening. Colour coded international symbol identification to meet CE requirements. 192335 waste fitting accepts Camlock pump out adaptor, refer 138764 and 139290. 76mm diameter flange.

Additional information

Variation:

192330 – TOWN DIESEL 38MM, 192332 – TOWN WATER 38MM, 192334 – TOWN FUEL 38MM, 192335 – TOWN WASTE 38MM, 192336 – TOWN DIESEL 50MM, 192338 – TOWN WATER 50MM, 192340 – TOWN FUEL 50MM

Dimensions
Weight0.42 kg
Dimensions7.6 × 8.1 × 9.4 cm
BLA CodeTypeHose Size mmHose Size inProtrusion mmIntrusion mmMount Screws mm
192330Diesel381 1/29765 c/s
192332Water381 1/29765 c/s
192334Fuel381 1/29765 c/s
192335Waste381 1/29765 c/s
192336Diesel5029765 c/s
192338Water5029765 c/s
192340Fuel5029765 c/s
