Description

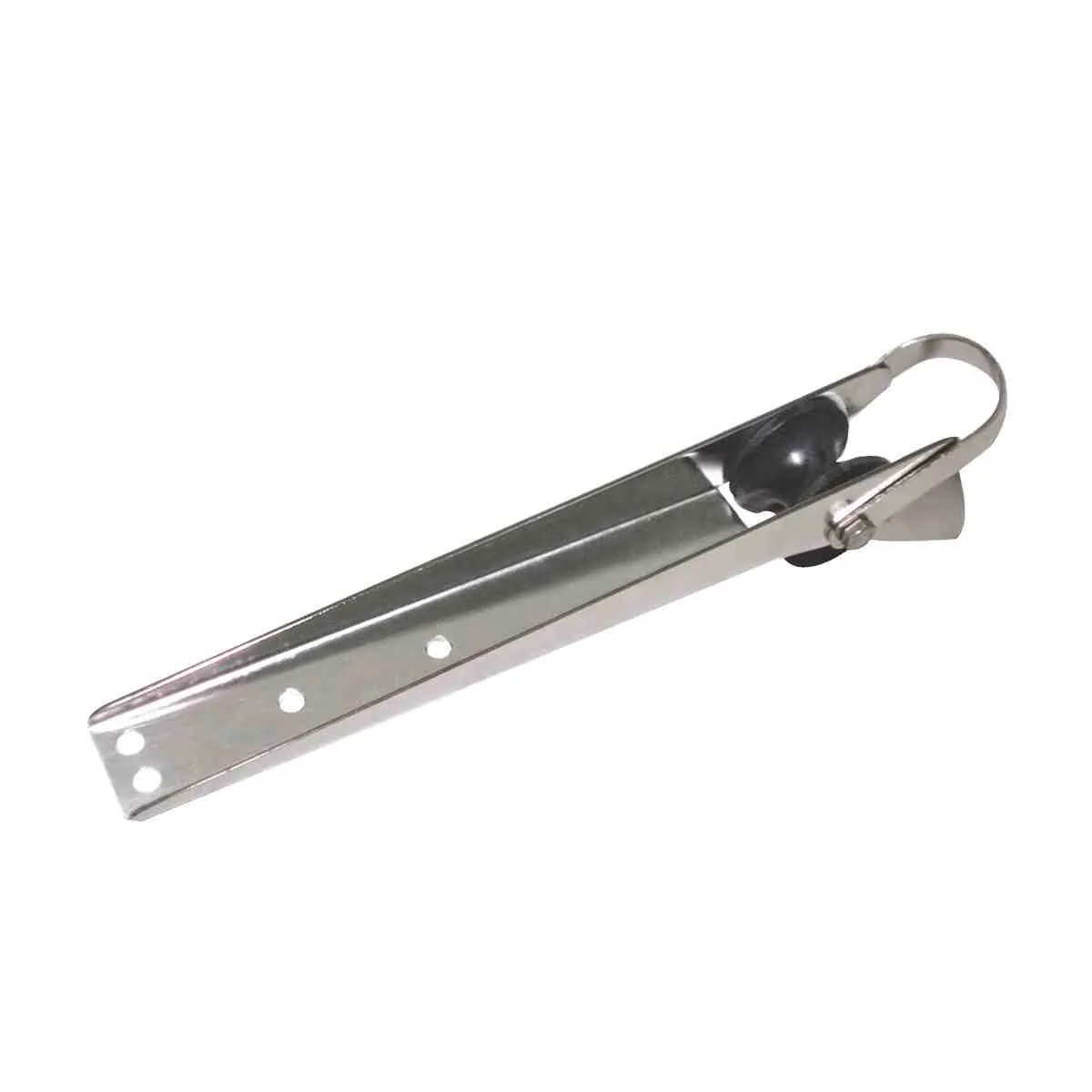

Heavy duty pressed 316 grade stainless steel construction, electro-polished finish. Non-corrosive large diameter black delrin roller. Saddle strap to retain anchor and warp.
Heavy duty pressed 316 grade stainless steel construction, electro-polished finish. Non-corrosive large diameter black delrin roller. Saddle strap to retain anchor and warp.
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Overall Length mm | Width mm | Height mm | Roller Width mm | Mount Screws mm |
|---|---|---|---|---|---|
| 192100 | 390 | 85 | 50 | 45 | 10 r/h |
| 192102 | 458 | 130 | 80 | 77 | 10 r/h |
| 192104 | 505 | 100 | 70 | 60 | 10 r/h |
| 192106 | 589 | 135 | 50 | 86 | 10 r/h |
