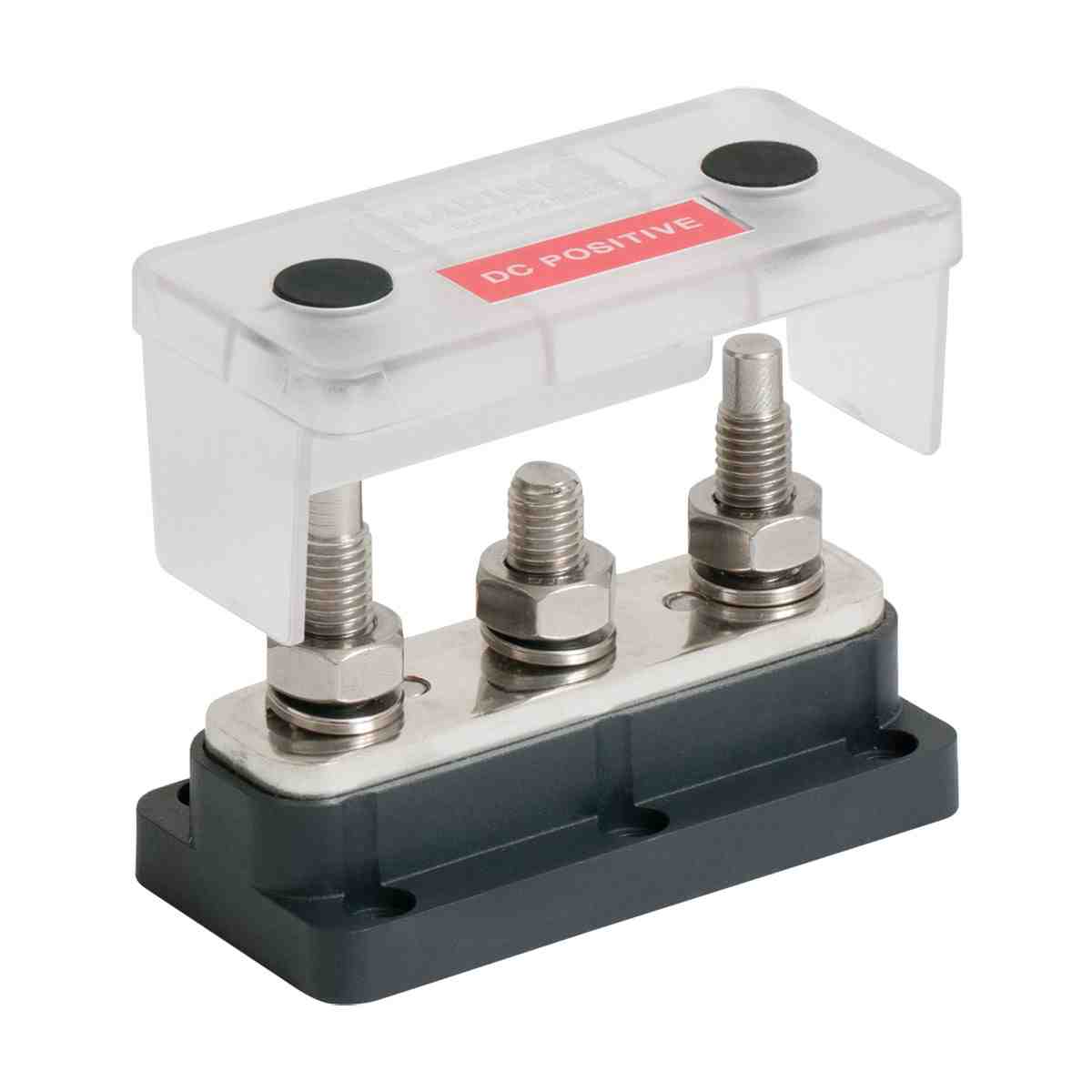

Marinco Pro Installer Heavy Duty

Marinco Pro Installer Heavy Duty

Price range: $164.64 through $2,094.47
SKU: G114600P

Description

Pro Installer Heavy Duty busbars provide a robust means to connect (bus) together the multitude large cables found in modern electrical installations. These offer unrivalled flexibility to meet the requirements of any installation, saving significant cost and space.

Specifications
• Studs treated with anti-seize lubricant
• 50VDC
• Tinned CDA102 Copper conductors
• Stainless steel studs, washers, nuts for longevity in the marine environment
• Generous stud lengths, metric threads
• Busbar current ratings are measured from end stud to end stud

B’ – Denotes bulk packed item
‘P’ – Denotes packaged item

Additional information

Variation:

114600P – BEP BUS BAR & COVER 3 STUD 650A, 114602P – BEP BUS BAR & COVER 4 STUD 500A, 114604B10 – BEP BUS BAR & COVER 5 STUD 650A ( 10 ), 114604P – BEP BUS BAR & COVER 5 STUD 650A, 114606B5 – BEP BUS BAR & COVER 8 STUD 650A ( 5 ), 114606P – BEP BUS BAR & COVER 8 STUD 650A

Dimensions
Weight0.35 kg
Dimensions13.9 × 16.9 × 5 cm
BLA CodeDescriptionStud Size mmQtyFootprint*Current Rating Amps
114600P3 Stud busbar1011 x650
114602P4 Stud busbar811 x500
114604P5 Stud busbar1011.5 x650
114604B105 Stud busbar10101.5 x650
114606P8 Stud busbar1012.5 x650
114606B58 Stud busbar1052.5 x650
