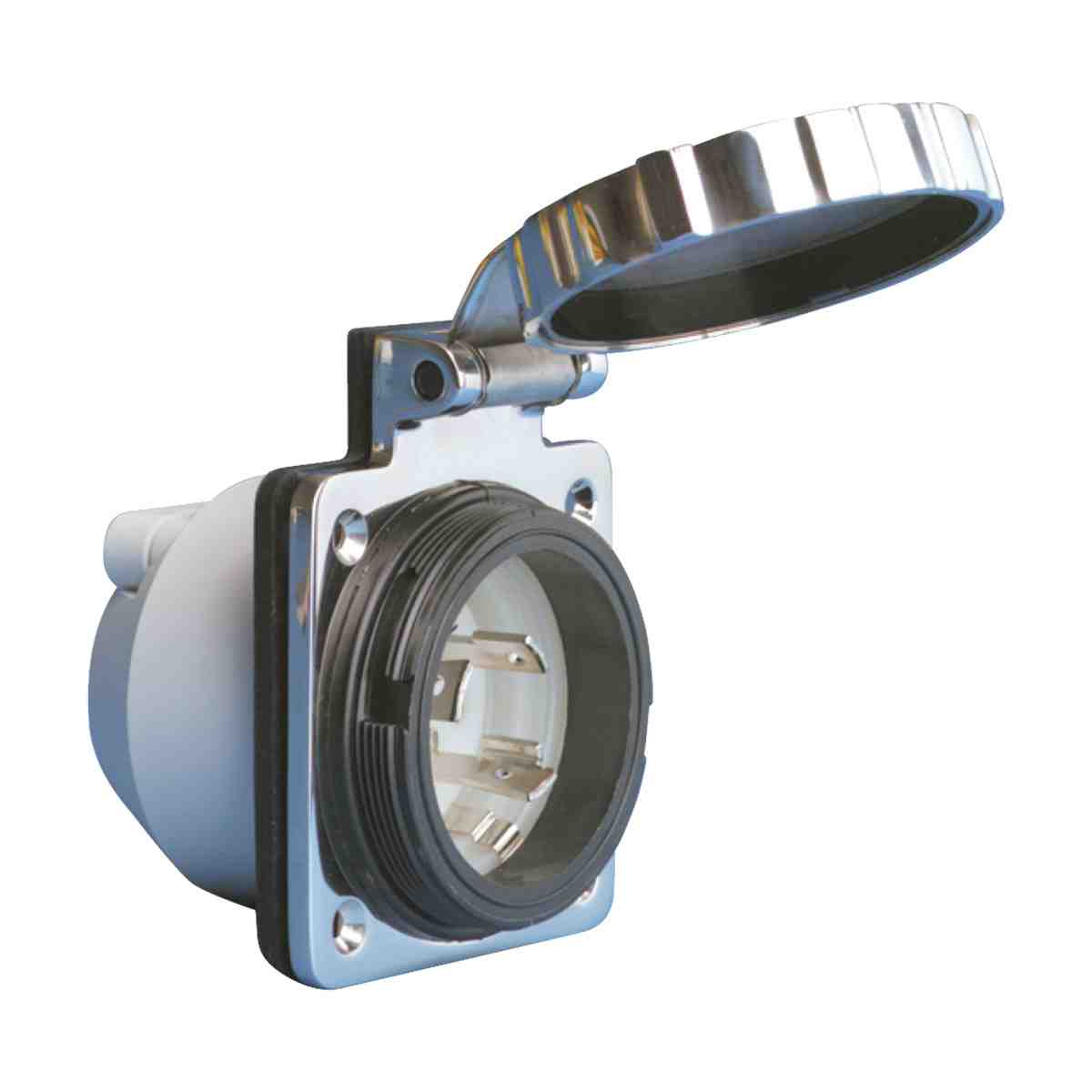

Marinco Power Inlet Points – Stainless Steel

Price range: $277.46 through $398.52
SKU: G114704

Description

Solid cast 316 grade stainless steel face plate with waterproof cap. Tinned brass electrical connectors and easy lock quarter turn system. Cap holds in the open position, a soft touch releases the cap for closing. Rear safety enclosure provides eight positions for cable entry.

Additional information

Variation:

114704 – SOCKET 16A 230V 50HZ, 114754 – SOCKET 32A 230V 50HZ

Dimensions
Weight0.55 kg
Dimensions12.5 × 14.7 × 10.5 cm
BLA CodeRated ampsFace Size mmProtrusion mmIntrusion mmCut Out Dia. mm
1147041682 x 105307458
1147543282 x 1053010261
