Description

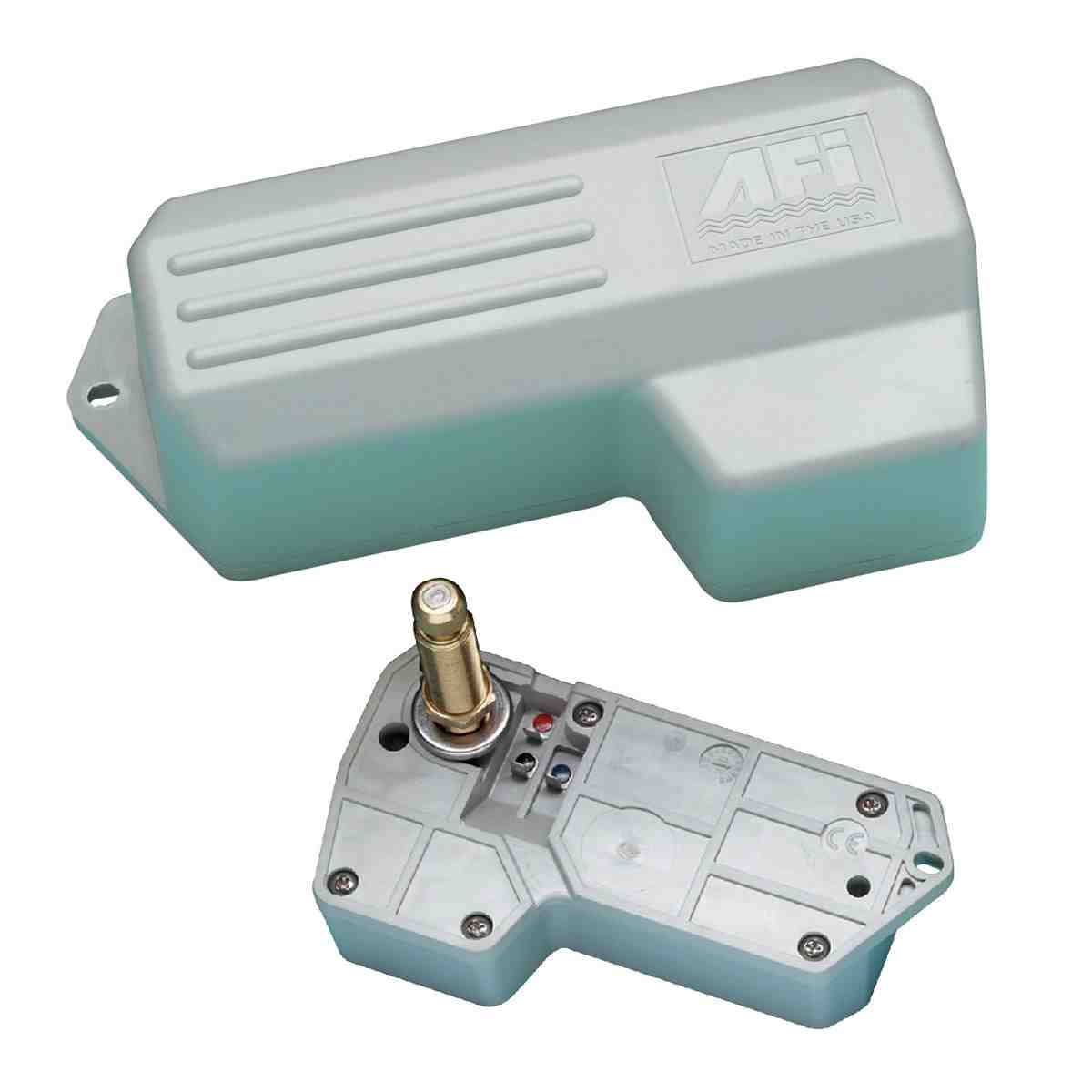

The 12 volt single speed motor is protected by a fully sealed waterproof housing, constructed of U.V. stabilised high temperature, high impact thermoplastic.

Features
• Adjustable right or left self parking
• Factory pre set sweep of 110 degrees, can be adjusted to 50, 65, or 80 degrees
• Powers up to 460mm (18″) Deluxe arm and 460mm (18″) Deluxe blade combination at sweep sets of 80° or less
• Powers up to 405mm (16″) Deluxe arm and 405mm (16″) Deluxe blade combinations at a sweep set of 110° or less
• 12 volt heavy duty motor with anti-rotation knurled drive shaft and solid brass arm drive nut
• M16 Brass shaft
• Coast to park with adjustable right or left self parking
• RF shielded circuitry
• Stall torque 63 kgf/cm; 6.2 Nm (55 in-lbs)
• Stall current 9.8-10 amps at 12V
• No load current 0.8-1.2 amps at 12V
• 3 year warranty
