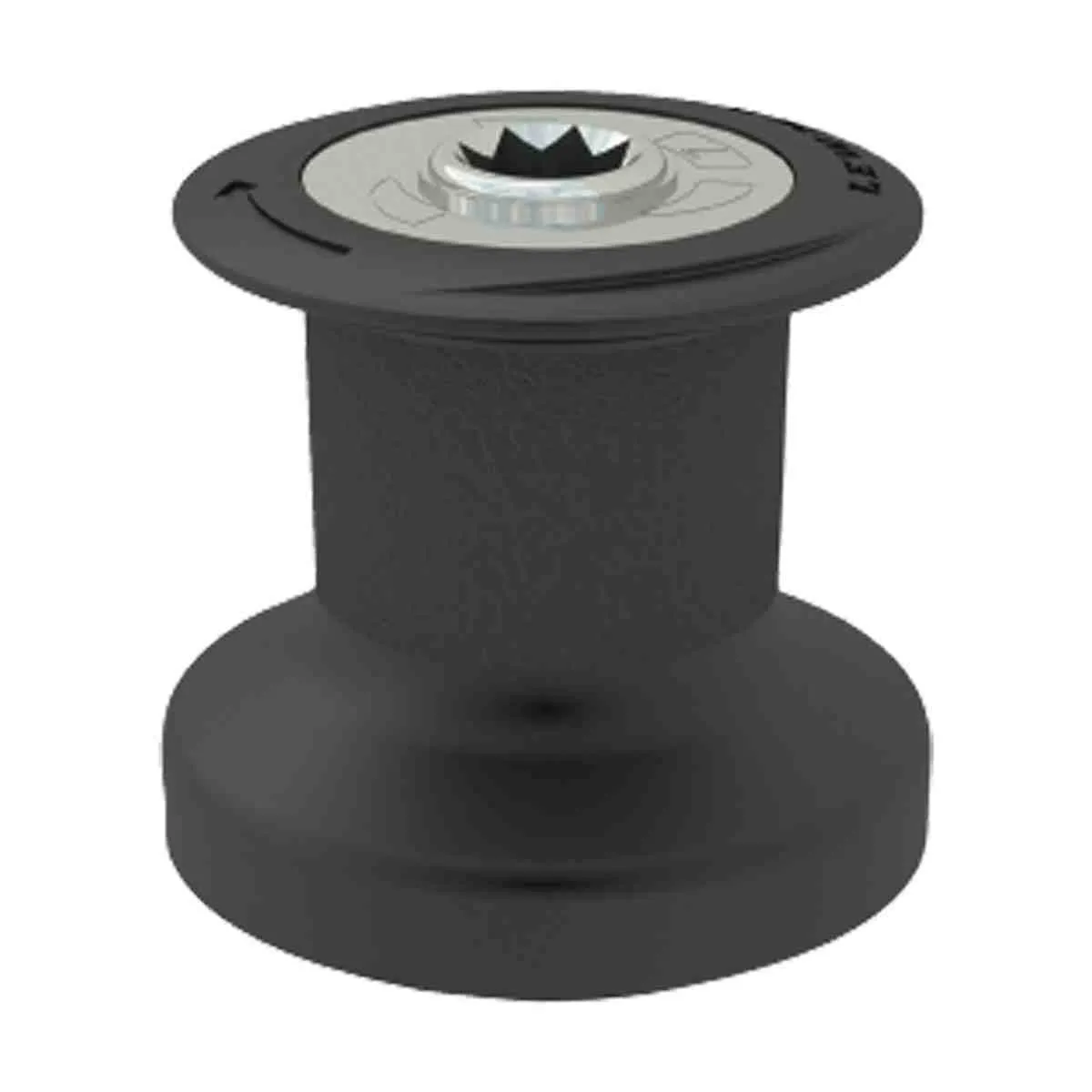

Lewmar® EVO® Sport Winches

Lewmar® EVO® Sport Winches

Price range: $222.61 through $1,958.12
SKU: G430300

Description

The EVO® Sport range is a general winch suited to a wide range of sailing vessels from club racers to sports boats. Designed to perform under constant trimming and provide years of trouble-free use. Traditional chrome bronze drums are featured across the range while aluminium drum models are available where weight consideration is a premium. One or two-speed gearing and a size range from 6 to 40 are available in black alloy or chrome bronze. All winches are supported by a comprehensive range of winch spares and suitable for mast mount applications.

Features
• Ability to convert a standard size 30 and 40 into EVO® self-tailing winches retrospectively
• Available in size 6 to size 40
• Tool free servicing
• Size 40 can be converted to electric operation
• Choice of finishes black alloy or chrome bronze
• 7 year worldwide warranty

Additional information

Variation:

430300 – LEWMAR EVO SHEET SIZE 6 BLACK ALLOY, 430301 – LEWMAR EVO SHEET SIZE 6 GREY ALLOY, 430302 – LEWMAR STANDARD SHEET SIZE 6 CHROME BRONZE, 430304 – LEWMAR EVO SHEET SIZE 7 BLACK ALLOY, 430306 – LEWMAR EVO SHEET SIZE 7 CHROME BRONZE, 430308 – LEWMAR EVO SHEET SIZE 8 BLACK ALLOY, 430310 – LEWMAR EVO SHEET SIZE 8 CHROME BRONZE, 430312 – LEWMAR EVO SHEET SIZE 16 BLACK ALLOY, 430314 – LEWMAR EVO SHEET SIZE 16 CHROME BRONZE, 430318 – LEWMAR EVO SHEET SIZE 30 CHROME BRONZE, 430320 – LEWMAR EVO SHEET SIZE 40 BLACK ALLOY, 430322 – LEWMAR EVO SHEET SIZE 40 CHROME ALLOY

Dimensions
Weight0.56 kg
Dimensions12 × 12 × 12 cm
ModelBLA Code Black AlloyBLA Code Grey AlloyWeight kgChrome Bronze CodeWeight kgGear Ration 1stGear Ratio 2ndPower Ration 1stPower Ration 2ndDrum Dia mmBase Dia mmHeight mmMounting TypePCD mm
64303004303010.54303021.11.1–6.8:1–5994834 x M666
74303040.84303061.71.1–7.9:1–651081024 x M680
84303081.44303102.31.1–7.9:1–651081035 x M680
164303121.44303142.31.12:17.9:116:1671201125 x M694
304303163.94303185.82.14.2:113.8:129.2:1145.85138145.855 x M6113
404303205.543032271.9:15.8:113.2:140.2:1158.5148158.55 x M6121
