Description

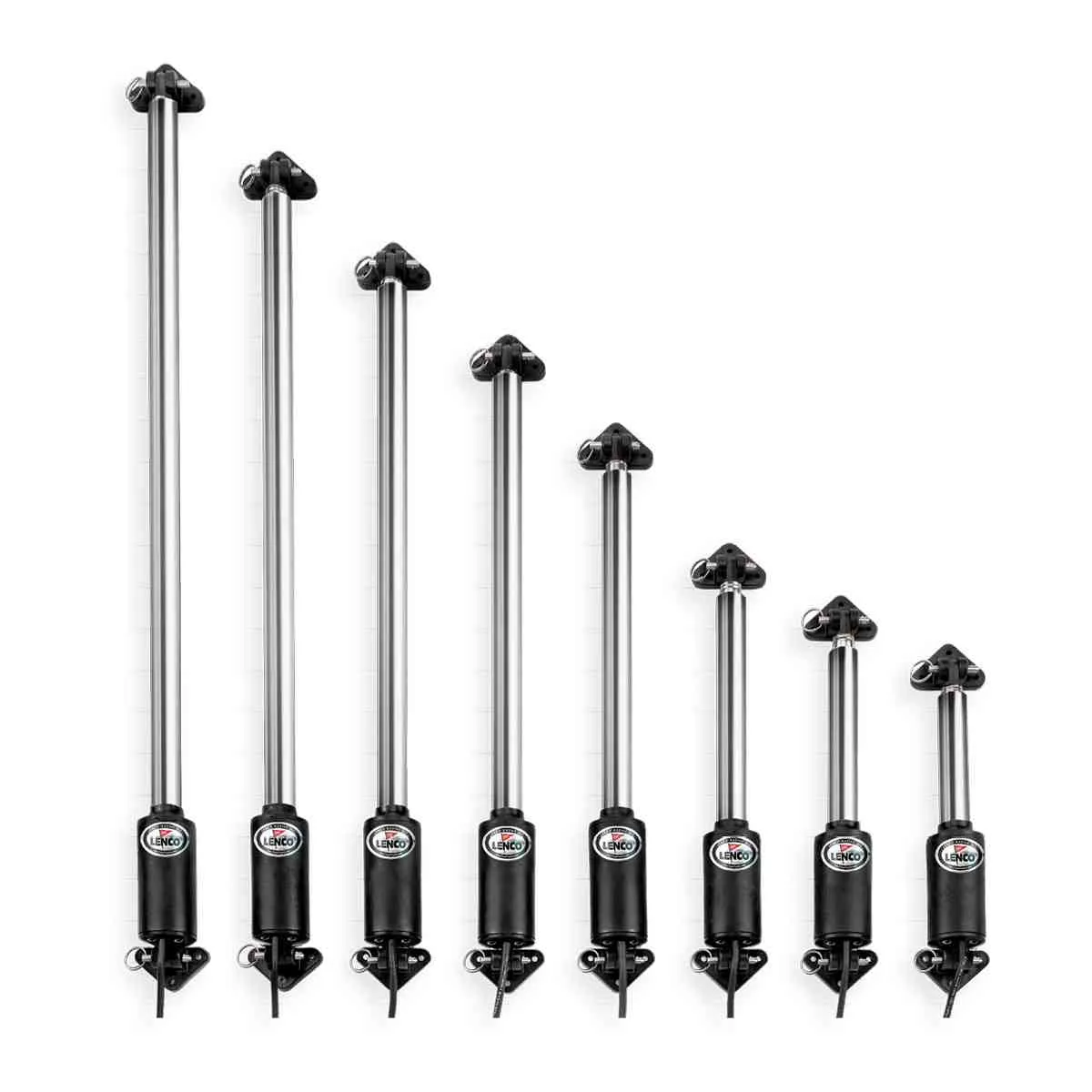

12 Intergrated harness. Inline motor design delivers over 226 kgs of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.
Features
• Clear anodised aluminium tubing
• 200mm-610mm Stroke, other sizes and voltages available on request
• Complete with 61cm lead and Deutsch plug
• Clutchless ball screw design will not drift, never binds and runs in sync on dual actuator lift applications
• Inline motor design delivers over 500 lbs (227kg) of force
• Water resistant and made entirely of non-corrosive materials
• Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors
• High impact, corrosion proof mounting brackets with stainless steel pull pins
• Powdered metal gears for strength and precision
• Stainless steel ram locks in any position
• CE-certified, ignition protected and ABYC compliant
Accessories
312590 Stainless Steel Pull Pin
312592 Stainless Steel Slide Bracket
N.B. L.O.A = Length Overall, measuring from top bracket to bottom bracket 20 amp circuit breaker & 20 amp rated switch required.
