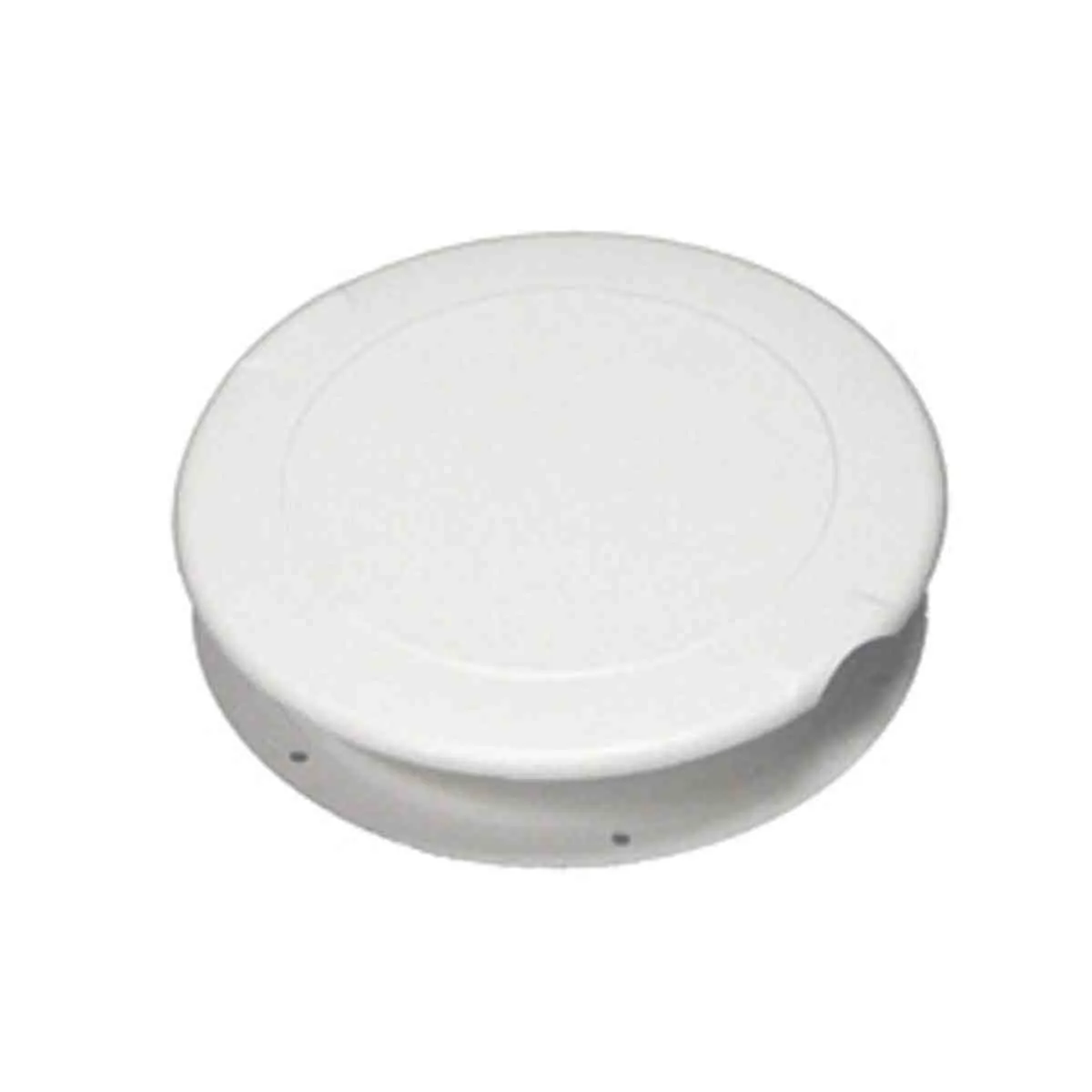

Jim Black® Inspection Plates – Removable Panel

Price range: $31.74 through $131.29
SKU: G174250

Description

Low profile white inspection plates engineered for harsh environments and suitable for a wide range of vertical or horizontal applications which may encounter foot traffic. Featuring high impact U.V. and weather resistant Saralon resin, the lids include a non slip surface and are resistant and impervious to harsh chemicals. A specially designed crush seal provides excellent water resistance while the lids are easily removed without the use of tools and cover the mounting flange, concealing the fastenings.

Features
• Design naturally sheds water
• Water resistant crush seal design
• Designed for vertical and horizontal applications
• Hidden fasteners
• U.V. resistant Saralon resin for exterior use
• Engineered for the toughest marine environment
• Easy access, requires no tools

Additional information

Variation:

174250 – BLACK COVERED 96MM, 174252 – BLACK COVERED 146MM, 174254 – BLACK COVERED 197MM, 174256 – BLACK COVERED 295MM X 172MM

Dimensions
Weight0.19 kg
Dimensions15.3 × 14.8 × 4.7 cm
BLA CodeShapeOutside mmInside mmCut Out mm
174250Round15396107
174252Round203146158
174254Round254197209
174256Rectangular229 x 356172 x 295183 x 310
