Hi-Lo Seating System – Hi-Lo Pedestal Posts

Original price was: $56.90.Current price is: $42.88.
SKU: G183115

Description

The Hi-Lo Seating System is a two position pedestal system that allows a boat seat to be used in a high position for fishing and a low position while the boat is underway. Simply remove the pedestal and place the seat mount directly into the base socket for low seating position, insert pedestal for high seating position.

The Hi-Lo System comprises of three pieces
• Pedestal seat mount
• Pedestal post
• Pedestal deck base

Pedestal Seat Mounts
• 360º rotation
• 3º reclined seating position
• Corrosion Resistant E-Cote plated
• Optional spring suspension ride

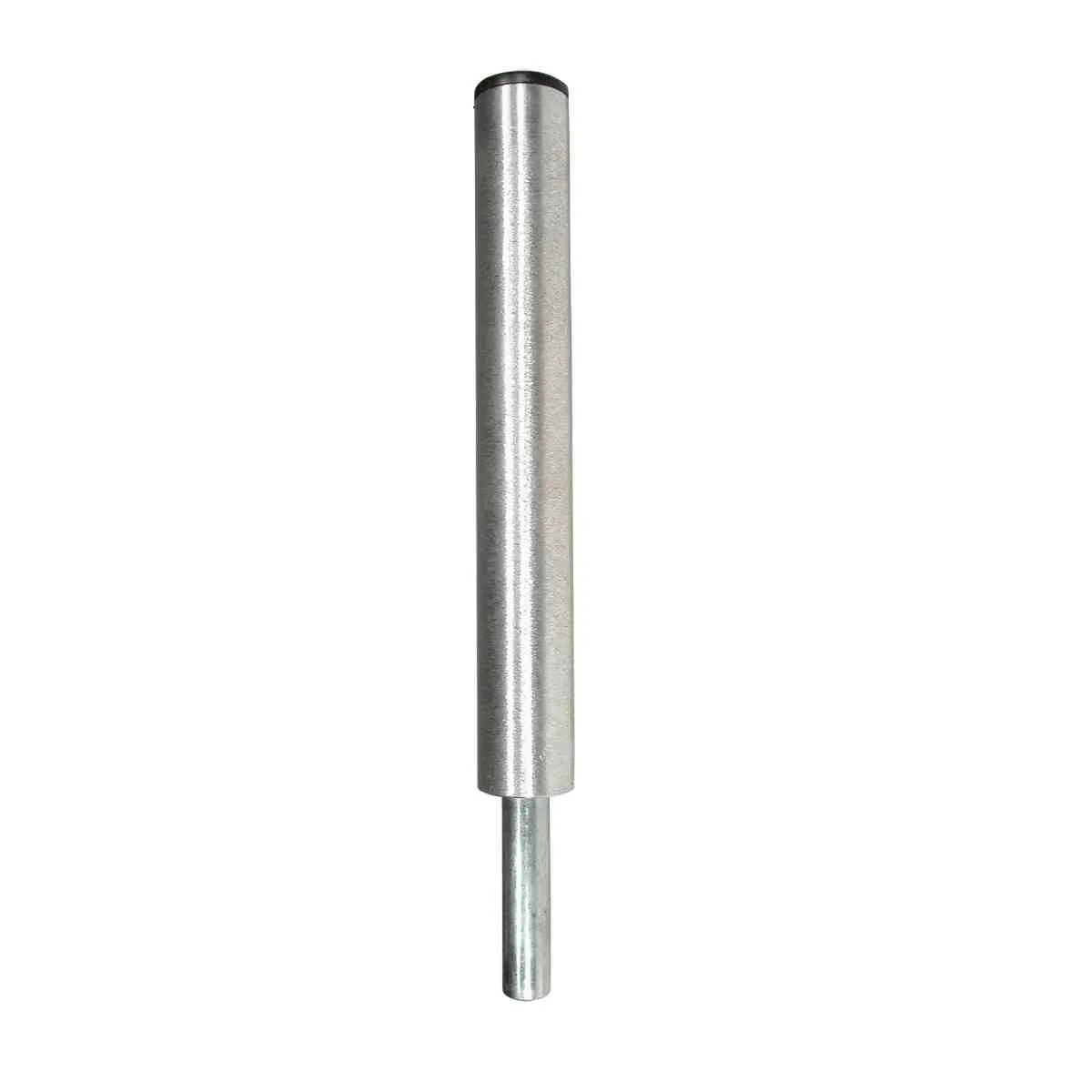

Hi-Lo Pedestal Posts
Nylon top bush for smooth, silent, lube free swivel operation, anodised aluminium tube, stainless steel pin. Available in fixed height or adjustable height.

Hi-Lo Pedestal Deck Bases
• Stainless steel or anodised alloy construction
• Nylon bush for smooth, silent, lube free swivel operation

Additional information

Variation:

183115 – BLA HI LOW FIXED 330MM, 183120 – BLA HI LOW ADJUSTABLE 490-640MM

Dimensions
Weight0.71 kg
Dimensions6.6 × 45.1 × 4.2 cm
BLA CodeSpringPin Dia. mm
183108No19
183110Yes19
BLA CodeHeight mmTube Dia. mmPin Dia. mm
1831153303819
1831173803819
183120490-6403819
BLA CodeMaterialSize mmIntrusion mmMount Screws mm
183123Stainless steel177 x 177626 c/s
183130Anodised alloy177 x 177626 c/s
