Description

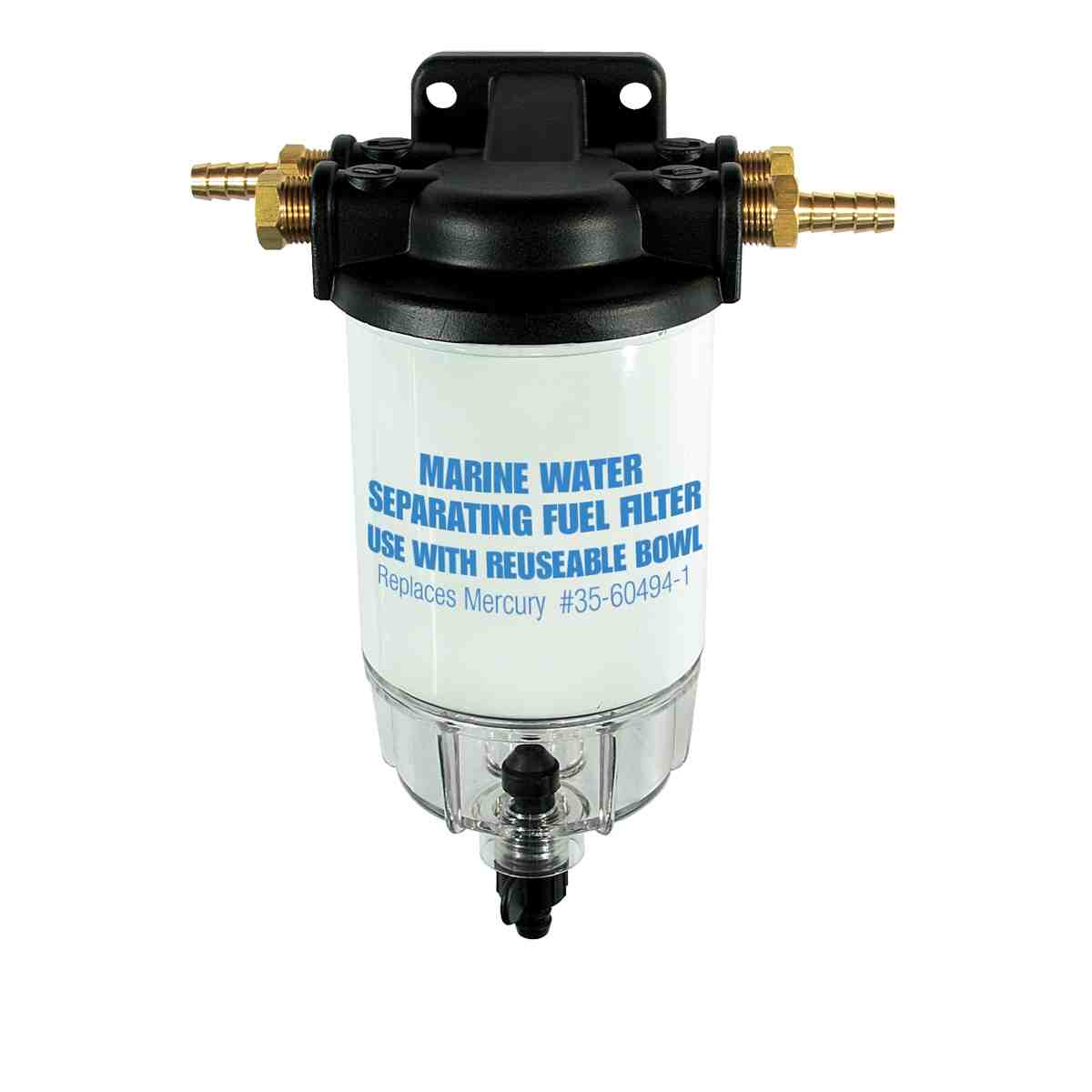

Complete fuel filter and water separating assembly, includes a choice of cast alloy or cast stainless steel filter head, replaceable 10 micron filter element, clear bowl drained via a screw in plug, two brass tails to suit 8mm hose and two 3⁄8″ NPT brass plugs. Head is configured to interchange with Mercury® OEM components. Filter element is configured to accept the 200482 clear bowl. Brass tails to suit 10mm hose are optional. Two each inlet and two outlet ports have 3⁄8″ NPT internal threads. 230mm high x 106mm wide. 8mm mount holes.

Accessories
200478 Filter only (short)
200482 Clear bowl only
200486 Cast alloy head only
200488 Cast stainless steel head only
