Fuel Filters - Long with Clear Bowl

Fuel Filters – Long with Clear Bowl

Price range: $114.91 through $157.26
SKU: G200472

Description

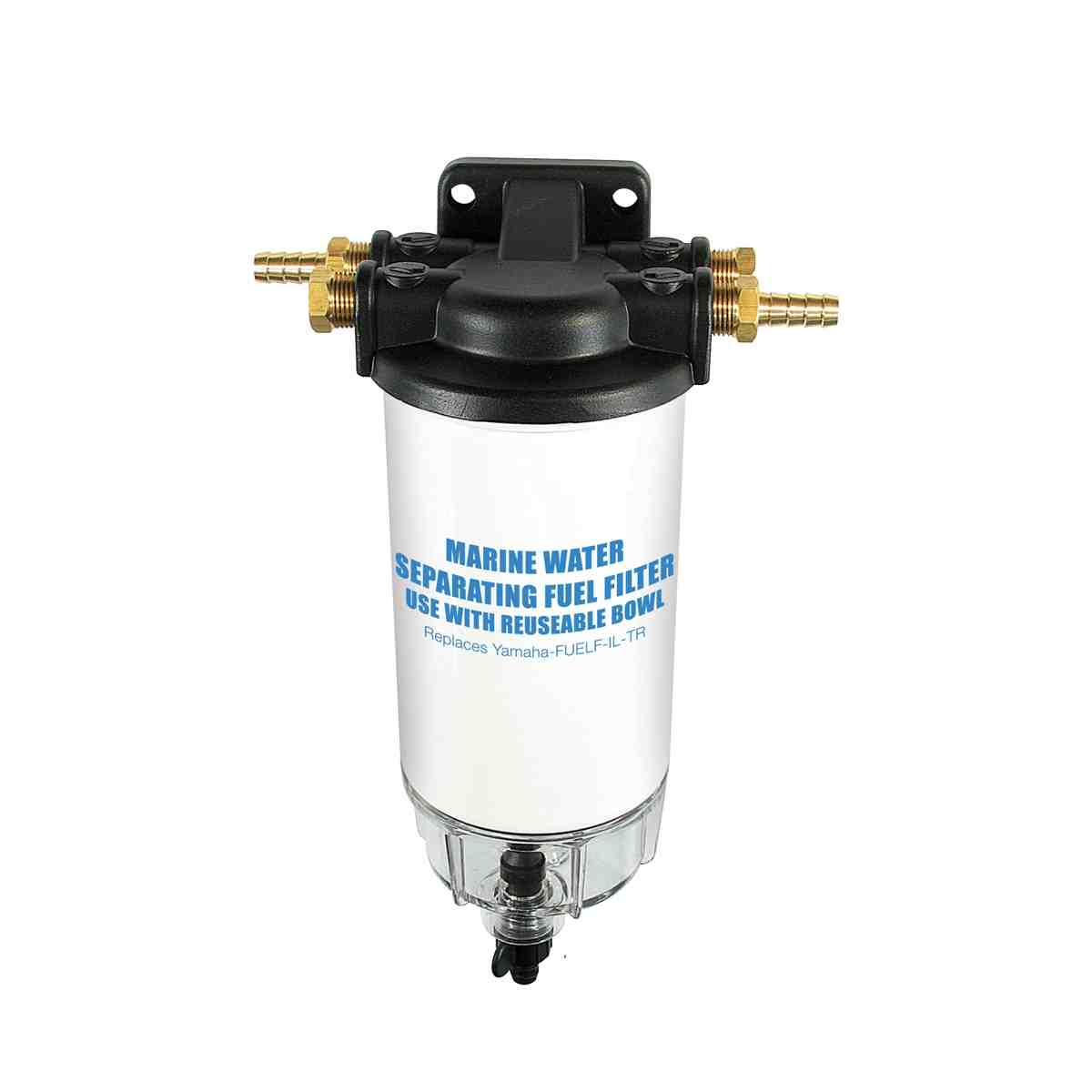

Complete fuel filter and water separating assembly with long filter producing a flow rate of 90 US GPH at 10 micron filtration, to meet the requirements of Yamaha® Motor Corporation for outboard engine applications. Assembly includes a choice of cast alloy or cast stainless steel filter head, replaceable long filter element, clear bowl drained via a screw in plug, two brass tails to suit 8mm hose and two 3⁄8″ NPT brass plugs. Brass tails to suit 10mm hose are optional. Two each inlet and two outlet ports have 3⁄8″ NPT internal threads. Head is configured to interchange with Yamaha® OEM components. Filter element is configured to accept the 200482 clear bowl. 275mm high x 106mm wide. 8mm mount holes.

Accessories
200480 Filter only (long)
200482 Clear bowl only
200486 Cast alloy head only
200488 Cast stainless steel head only

Additional information

Variation:

200472 – BLA ASSY ALLOY HEAD, 200476 – BLA ASSY STAINLESS STEEL HEAD

Dimensions
Weight1.2 kg
Dimensions12 × 11 × 27 cm
BLA CodeSizeHead TypeElement Included
200472Complete filter assemblyAlloy200480
200476Complete filter assemblyS/S200480
