100Knots

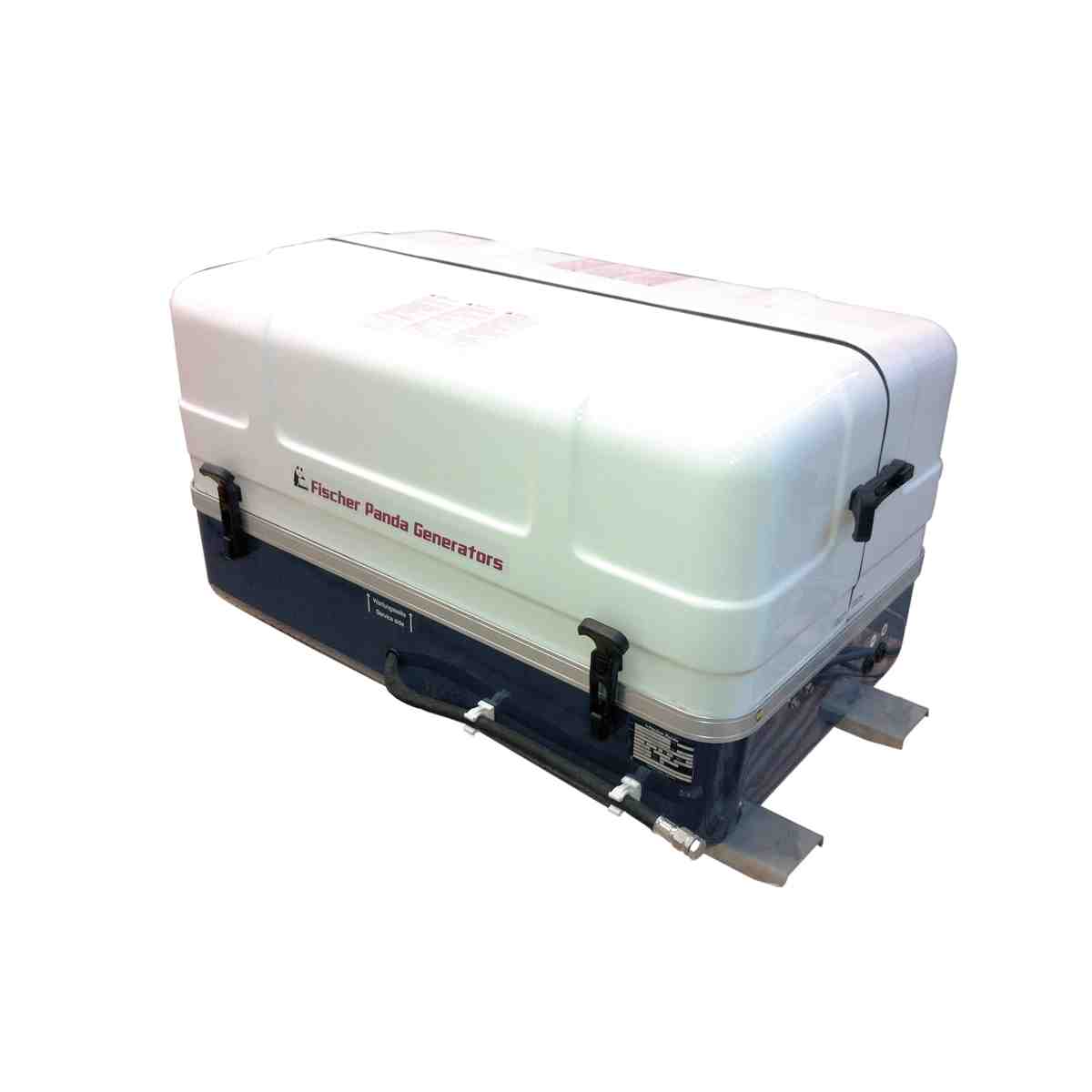

Fischer Panda Vehicle Generator - PVMV-N Series

Fischer Panda Vehicle Generator – PVMV-N Series

$39,419.00 – $87,109.00
SKU: G337212

Description

Vehicle generator with sound insulation capsule, integrated water-cooled vertically mounted pre-silencer and main silencer.

Features
• Parallel connection of two iSeries generators of the same type; refer to page 1331
• Easy to install
• Requires external radiator, refer to page 1330
• Suitable for keel cooling in ships
• Suitable for internal installation
• Best choice, when space and length available
• Complete water-cooled silencer inside capsule
• GRP capsule is standard for models up to 12kW
• Stainless steel capsule (MPL) is standard for models 15kW and above
• Inverter generators and asynchronous models available
• 2 year warranty, 1 year commercial warranty
• Contact BLA for more information on spare parts

Standard Inclusions
SP33337608 Remote iControl and monitoring panel for inverter generators
SP33337324 Pierburg 12V remotely mounted fuel lift pump

Accessories
337460 Standard service kit 8 to suit 8000i, 15000i, 8000, 12000 & 15000
337462 Standard service kit 9 to suit 18 & 24
SP33337322 Engine mount to suit 15000i & 15000
55-21.03.10.059P Standard service kit to suit 10000i
55-21.03.10.058P Standard service kit to suit 10000
55-21.03.10.010P Standard service kit to suit 30
55-32.30.01.009H Engine mount to suit 18, 24 & 30

Additional information

Weight 0.0001 kg
Dimensions 0.1 × 0.1 × 0.1 cm
Variation:

337212 – 5000I 230V 50HZ, 337214 – 8000I 230V 50HZ, 337216 – 10000I 230V 50HZ, 337218 – 15000I 230V 50HZ, 337225 – 8000X 230V 50HZ, 337227 – 10000X 230V 50HZ, 337229 – 12000X 230V 50HZ, 337231 – 15000XPVMV-N 230V 50HZ, 337233 – 18 230V 50HZ, 337235 – 24 230V 50HZ

User Reviews

0.0 out of 5
★★★★★
0
★★★★★
0
★★★★★
0
★★★★★
0
★★★★★
0

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

BLA Code Description Dimensions L x W x H Weight kg Sound Level 7m/3m/1m dB Nominal Output kW Continuous Output kW
337212 Panda 5000i PVMV-N 5kVA 770 x 430 x 450 133 54/64/68 4 3.5
337214 Panda 8000i PVMV-N 8kVA 760 x 515 x 610 190 52/62/67 6 5.5
337216 Panda 10000i PVMV-N 10kVA 790 x 510 x 610 200 52/62/67 8 7.2
337218 Panda 15000i PVMV-N 15kVA 870 x 520 x 515 210 54/64/68 12 10.8
337225 Panda 8000x PVMV-N 230V 50Hz 865 x 515 x 635 230 52/62/67 6.8 6.1
337227 Panda 10000x PVMV-N 230V 50Hz 910 x 515 x 625 243 52/62/67 8 7.3
337229 Panda 12000x PVMV-N 230V 50Hz 950 x 515 x 625 253 53/63/67 10.2 9.1
337231 Panda 15000x PVMV-N 230V 50Hz 950 x 515 x 625 298 54/64/68 12.7 11.6
337233 Panda 18 PVMV-N 18kVA 1100 x 540 x 680 415 55/65/69 15.3 13.7
337235 Panda 24 PVMV-N 24kVA 1220 x 540 x 680 465 55/65/69 20.4 18.3
337237 Panda 30 PVMV-N 30kVA 1270 x 570 x 700 512 55/65/69 25.5 22.9

  • Sierra Transom Exhaust Flapper Valves

    $84.24 – $177.18

  • Eclectic Energy Wind Generator – DuoGen

    $11,229.00

  • Fischer Panda Vehicle Generator – PVK-U Series

    $56,329.00 – $90,539.00

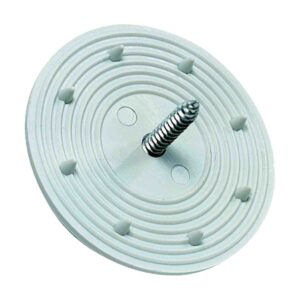

  • Insulation Fixing Buttons
