Description

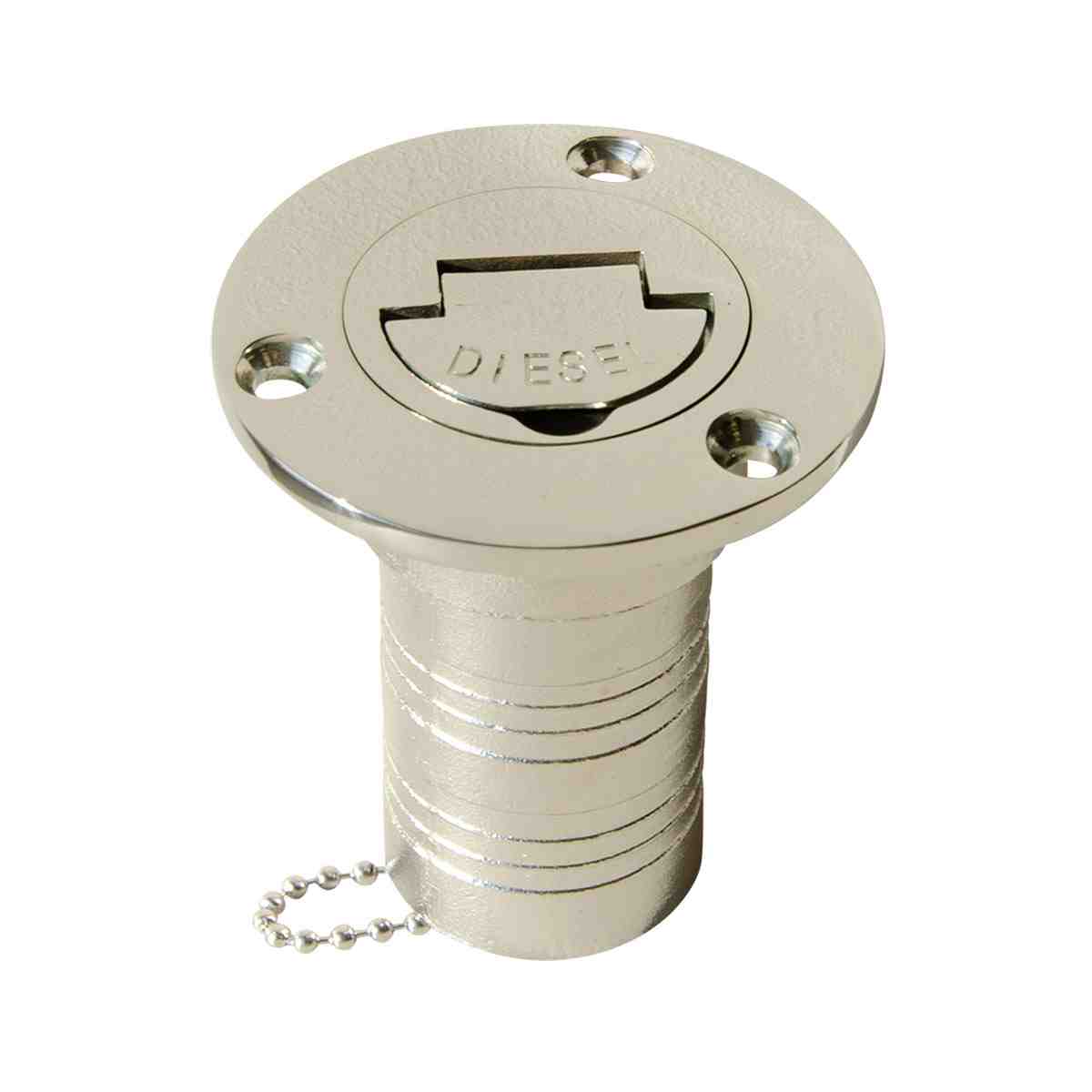

Flush mount, lost wax cast, 316 grade stainless steel deck fillers. Unique flip-up key ensures ease of removal at all times. Features coarse thread, ‘O’ ring seal, retaining chain and filler type identification moulded into the lid.
Flush mount, lost wax cast, 316 grade stainless steel deck fillers. Unique flip-up key ensures ease of removal at all times. Features coarse thread, ‘O’ ring seal, retaining chain and filler type identification moulded into the lid.
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Type | Hose Size mm | Flange mm | Protrusion mm | Intrusion mm | Mount Screws mm |
|---|---|---|---|---|---|---|
| 192350 | Diesel | 38 | 75 | 6 | 75 | 4 c/s |
| 192351 | Water | 38 | 75 | 6 | 75 | 4 c/s |
| 192352 | Fuel | 38 | 75 | 6 | 75 | 4 c/s |
| 192353 | Waste | 38 | 75 | 6 | 75 | 4 c/s |
| 192354 | Diesel | 50 | 81 | 4 | 95 | 4 c/s |
| 192355 | Water | 50 | 81 | 4 | 95 | 4 c/s |
| 192356 | Fuel | 50 | 81 | 4 | 95 | 4 c/s |
