Mastervolt DC-DC Converter – Mac & Magic (SKU: G110510) offers reliable and efficient power conversion for your marine electrical systems. Designed to meet the demanding needs of boat owners, this converter ensures your onboard electronics receive stable and precise voltage, enhancing the safety and longevity of your equipment.

With advanced features such as high efficiency, adjustable output voltage, and robust protection mechanisms, the Mastervolt DC-DC Converter is perfect for maintaining optimal performance of sensitive devices and batteries, even in challenging marine environments. Its compact design and natural cooling make installation straightforward, while low sound levels ensure quiet operation onboard.

Nominal Input Voltage: 24V DC
Input Range: 20–32V DC
Factory Output Setting: 13.6V DC (adjustable 10–15V DC)
Maximum Output Power: 300W (270W nominal)
Maximum Current: 20A
Stabilised Output: 2% at extremes of temperature, load, and input
Ripple: Max. 1% peak-to-peak
Efficiency: >90% at nominal input voltage, up to 92% peak
Protection: Overload and over-temperature protection
3-Step Charge Option: Yes (DIP switch settings)
Cooling: Natural cooling
Sound Level: <30 dBA at 1 meter
Dimensions (H x W x D): 190 x 130 x 61 mm
Weight: 1 kg
Approvals: CE certified
MasterBus Compatible: Yes, with MasterBus Serial Interface (optional)
Protection Degree: IP21

Upgrade your vessel’s power management with the Mastervolt DC-DC Converter and experience peace of mind, knowing your electronics are protected and powered efficiently, wherever your journey takes you.

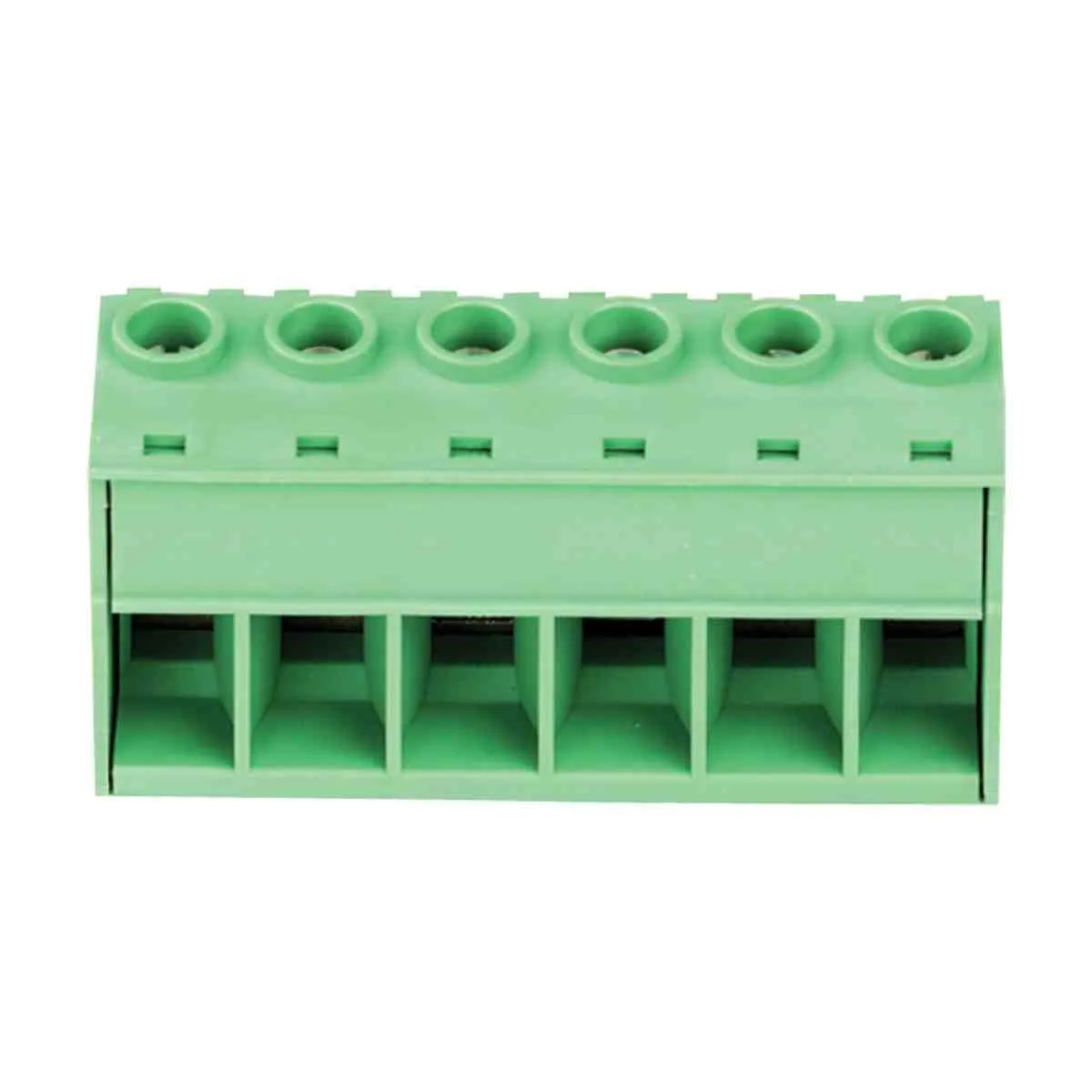

CZone Terminal Blocks
