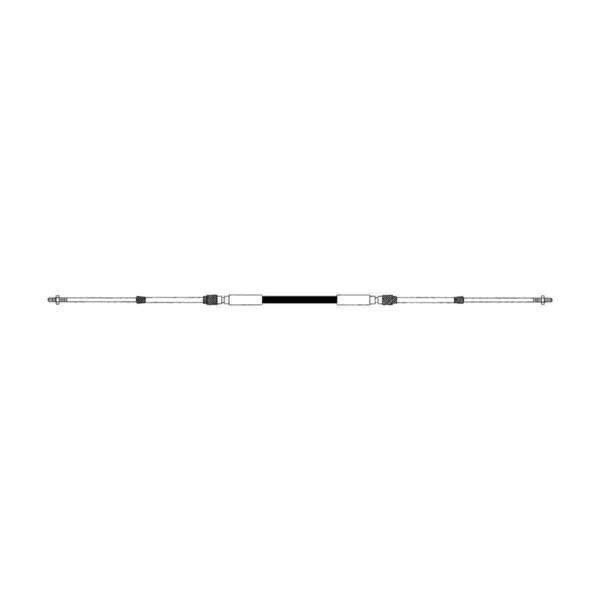

CCX633 XTREME Premium Control Cables - Black & Red

CCX633 XTREME Premium Control Cables – Black & Red

Price range: $64.59 through $467.66
SKU: G303310

Description

Traditional Cables vary by the stiffness of the core wire and how tightly it fits in the casing. Thus the classic trade-offs that have existed in control cable design are
• Stiffer core/tighter fit — offers less lost motion, but is harder to move. With longer and more complex runs, cable movement becomes progressively more difficult.
• More flexible core/looser fit — has an easier feel, but has more lost motion. This approach leads to an overall sloppy feel, RPM variation or difficult gear engagement. These trade-offs aren’t an issue with XTREME™ Cables because they are different – really different XTREME’s unique design incorporates a patent-pending splined core. Ridges on the core allow a close fit with the cable’s inner liner, but with minimum contact, so the core glides back and forth smoothly like a skater on ice.
RESULT a control cable with easy movement AND minimum lost motion.

Specifications
• Particularly suited to complex routing and longer runs
• Fits directly into Dometic Seastar® controls and all controls that accept universal type Cables
• Stainless steel and chrome brass end fittings. 10-32 UNF threads
• Nominal 75mm travel
• Flexible multi-strand galvanised steel core with splined jacket
• 100mm minimum bend radius
• Parallel lay wire strand reinforced outer jacket for superior strength and flexibility
• Suits stern drives, inboards and outboards
• Ideal for multi-station and longer run installations
• Wire strand reinforced outer jacket, 8.6mm outside diameter

Additional information

Variation:

303205 – SEASTAR CCX632 5FT, 303206 – SEASTAR CCX632 6FT, 303207 – SEASTAR CCX632 7FT, 303208 – SEASTAR CCX632 8FT, 303209 – SEASTAR CCX632 9FT, 303210 – SEASTAR CCX632 10FT, 303211 – SEASTAR CCX632 11FT, 303212 – SEASTAR CCX632 12FT, 303213 – SEASTAR CCX632 13FT, 303214 – SEASTAR CCX632 14FT, 303215 – SEASTAR CCX632 15FT, 303216 – SEASTAR CCX632 16FT, 303217 – SEASTAR CCX632 17FT, 303218 – SEASTAR CCX632 18FT, 303219 – SEASTAR CCX632 19FT, 303220 – SEASTAR CCX632 20FT, 303221 – SEASTAR CCX632 21FT, 303222 – SEASTAR CCX632 22FT, 303223 – SEASTAR CCX632 23FT, 303224 – SEASTAR CCX632 24FT, 303225 – SEASTAR CCX632 25FT, 303226 – SEASTAR CCX632 26FT, 303227 – SEASTAR CCX632 27FT, 303228 – SEASTAR CCX632 28FT, 303229 – SEASTAR CCX632 29FT, 303230 – SEASTAR CCX632 30FT, 303232 – SEASTAR CCX632 32FT, 303234 – SEASTAR CCX632 34FT, 303236 – SEASTAR CCX632 36FT, 303238 – SEASTAR CCX632 38FT, 303240 – SEASTAR CCX632 40FT, 303242 – SEASTAR CCX632 42FT, 303244 – SEASTAR CCX632 44FT, 303246 – SEASTAR CCX632 46FT, 303248 – SEASTAR CCX632 48FT, 303250 – SEASTAR CCX632 50FT, 303252 – SEASTAR CCX632 52FT, 303254 – SEASTAR CCX632 54FT, 303310 – SEASTAR 10FT, 303311 – SEASTAR 11FT, 303312 – SEASTAR 12FT, 303313 – SEASTAR 13FT, 303314 – SEASTAR 14FT, 303315 – SEASTAR 15FT, 303316 – SEASTAR 16FT, 303317 – SEASTAR 17FT, 303318 – SEASTAR 18FT, 303319 – SEASTAR 19FT, 303321 – SEASTAR 21FT, 303322 – SEASTAR 22FT, 303323 – SEASTAR 23FT, 303324 – SEASTAR 24FT, 303325 – SEASTAR 25FT, 303326 – SEASTAR 26FT, 303327 – SEASTAR 27FT, 303328 – SEASTAR 28FT, 303329 – SEASTAR 29FT, 303330 – SEASTAR 30FT, 303332 – SEASTAR 32FT, 303334 – SEASTAR 34FT, 303336 – SEASTAR 36FT, 303338 – SEASTAR 38FT, 303340 – SEASTAR 40FT, 303342 – SEASTAR 42FT, 303344 – SEASTAR 44FT, 303346 – SEASTAR 46FT, 303348 – SEASTAR 48FT, 303350 – SEASTAR 50FT, 303352 – SEASTAR 52FT, 303354 – SEASTAR 54FT, 303356 – SEASTAR 56FT, 303358 – SEASTAR 58FT, 303362 – SEASTAR 62FT, 303366 – SEASTAR 66FT, 303368 – SEASTAR 68FT, 303370 – SEASTAR 70FT, 303372 – SEASTAR 72FT

Dimensions
Weight0.55 kg
Dimensions44.8 × 37.2 × 4 cm
BLA Code BlackBLA Code WhiteCable mLength ft
–3032051.525
–3032061.826
–3032072.137
–3032082.448
–3032092.749
3033103032103.0510
3033113032113.3511
3033123032123.6612
3033133032133.9613
3033143032144.2714
3033153032154.5715
3033163032164.8816
3033173032175.1817
3033183032185.4918
3033193032195.7919
3033203032206.120
3033213032216.421
3033223032226.7122
3033233032237.0123
3033243032247.3224
3033253032257.6225
3033263032267.9226
3033273032278.2327
3033283032288.5328
3033293032298.8429
3033303032309.1430
3033323032329.7532
30333430323410.3634
30333630323610.9736
30333830323811.5838
30334030324012.1940
30334230324212.842
30334430324413.4144
30334630324614.0246
30334830324814.6348
30335030325015.2450
30335230325215.8552
30335430325416.4654
303356–17.0756
303358–17.6858
303360–18.2960
303362–18.9162
303364–19.5164
303366–20.1266
303368–20.7268
303370–21.3470
303372–21.9572
