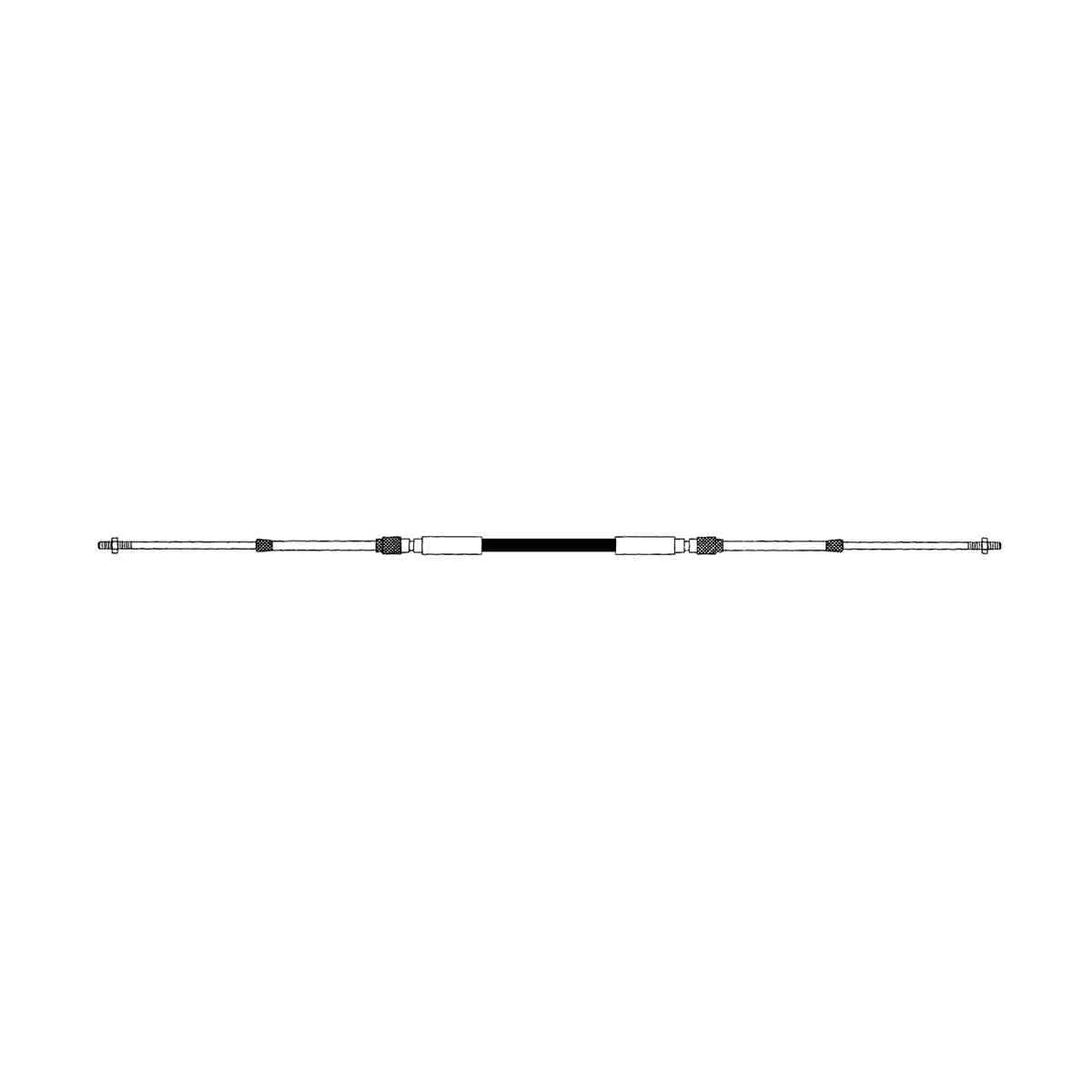

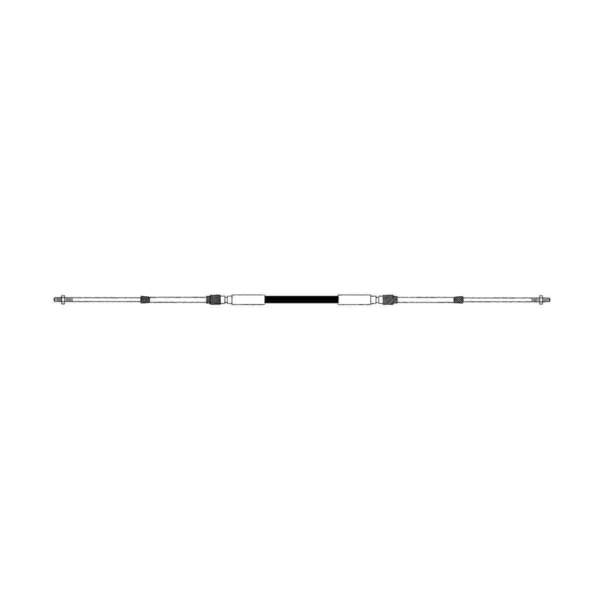

CC330 Mid Range Control Cables - Black

CC330 Mid Range Control Cables – Black

Price range: $48.19 through $80.09
SKU: G303105

Description

Replaces CC330 Miracable Control Cables
Mid range Cables with heavier jacket and stainless steel Lubri-core™.

Specifications
• Fits directly into Dometic Seastar® controls and all controls that accept universa type Cables
• Stainless steel end fittings, 10-32 UNF threads
• Nominal 75mm travel
• Stainless steel Lubri-core™ solid core wire
• 150mm minimum bend radius
• 20 lay wire strand reinforced outer jacket. 8.6mm outside diameter
• Suits stern drives, inboards and outboards

Additional information

Variation:

303105 – SEASTAR 5FT, 303106 – SEASTAR 6FT, 303107 – SEASTAR 7FT, 303108 – SEASTAR 8FT, 303109 – SEASTAR 9FT, 303110 – SEASTAR 10FT, 303111 – SEASTAR 11FT, 303112 – SEASTAR 12FT, 303113 – SEASTAR 13FT, 303114 – SEASTAR 14FT, 303115 – SEASTAR 15FT, 303116 – SEASTAR 16FT, 303117 – SEASTAR 17FT, 303118 – SEASTAR 18FT, 303119 – SEASTAR 19FT, 303120 – SEASTAR 20FT, 303121 – SEASTAR 21FT, 303122 – SEASTAR 22FT, 303123 – SEASTAR 23FT, 303124 – SEASTAR 24FT

Dimensions
Weight0.3 kg
Dimensions45.6 × 52.1 × 3.4 cm
BLA CodeCable mLength ft
3030061.836
3030072.137
3030082.448
3030092.749
3030103.0510
3030113.3511
3030123.6612
3030133.9613
3030144.2714
3030154.5715
3030164.8816
3030175.1817
3030185.4918
3030195.7619
3030206.120
3030216.421
3030226.7122
3030237.0123
3030247.3224

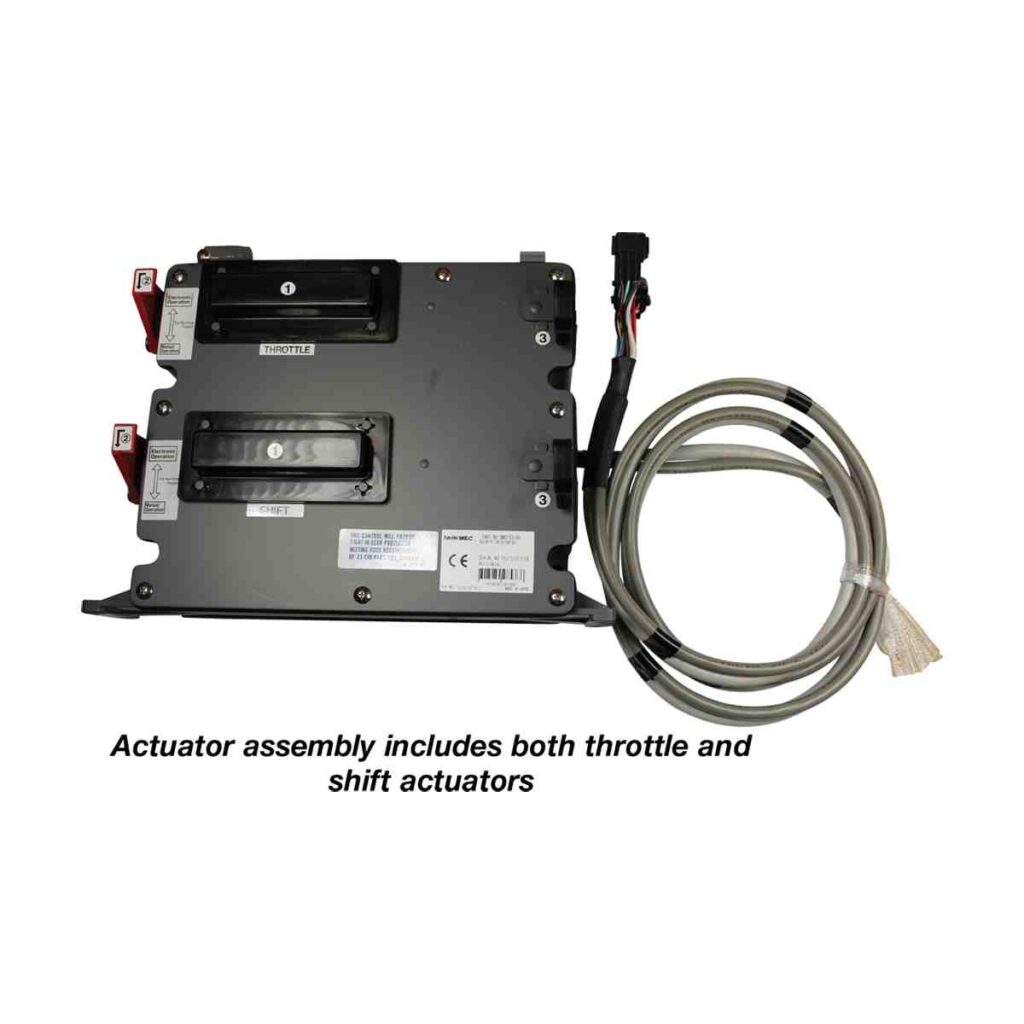

  • Actuator

    Original price was: $2,609.00.Current price is: $2,198.00.

  • Connection Kit – Evinrude/Johnson

    Original price was: $76.90.Current price is: $57.50.

  • Connection Kit – Evinrude/Johnson

    Original price was: $109.90.Current price is: $78.89.

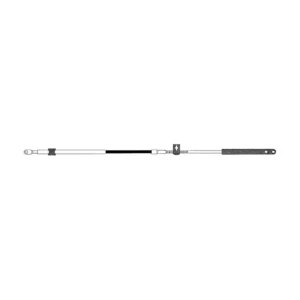

  • CC179 Mercury/Mariner 600A Type Control Cables
