Description
The safety hub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reducing wiring connections, and consolidates up to ten fused circuits. Fuses not included.
-25%

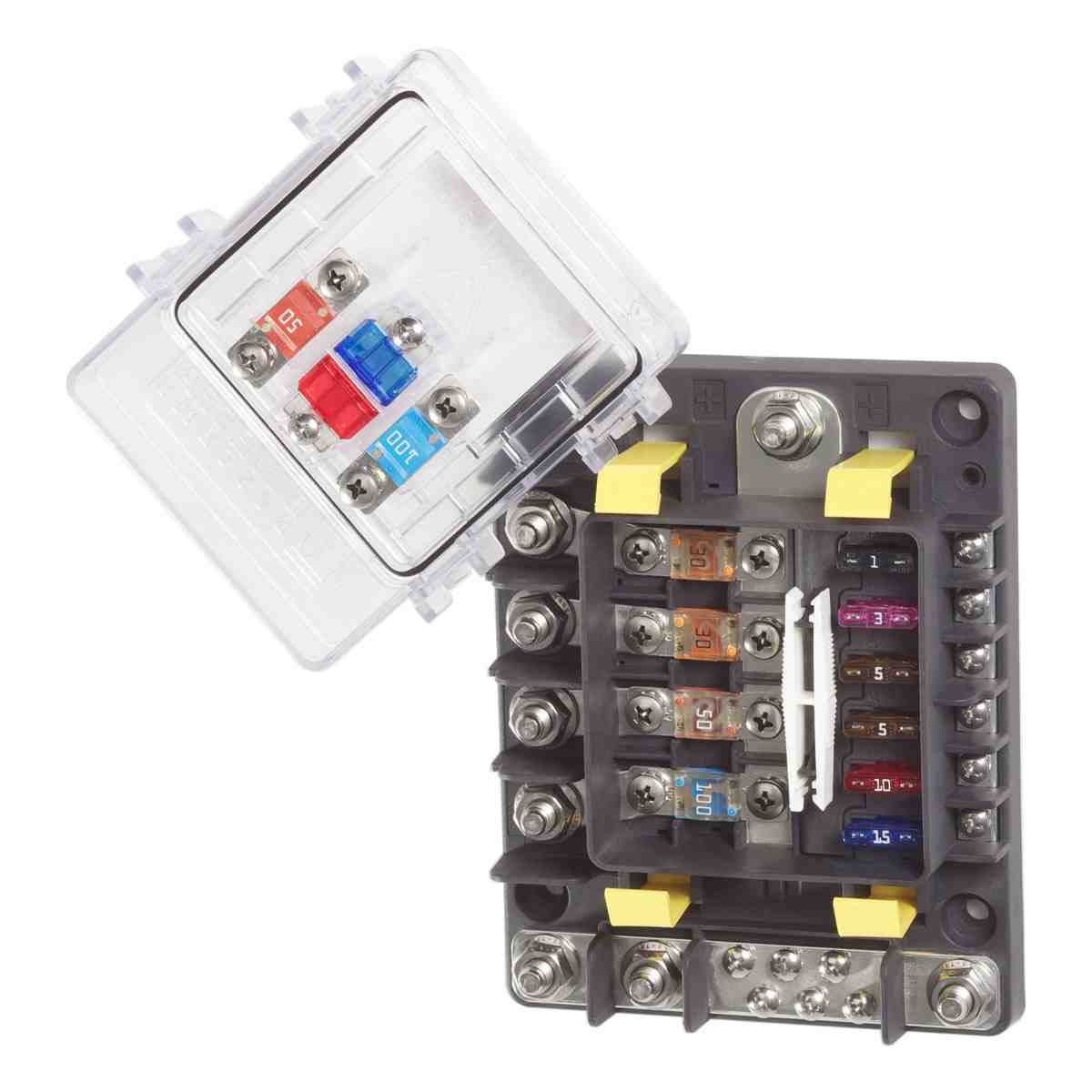

Blue Sea Systems SafetyHub 150 Fuse Block
Original price was: $389.90.$292.94Current price is: $292.94.
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | BS-7748B |
|---|---|
| Amperage Max. Operating (combined) | 280A |
| Voltage Max. Operating | 32V DC |
| Minimum Cable Size to Meet Ratings | 4/0 AWG (120 mm²) |
| Recommended Ring Terminal | M8 (5/16″) |
| Stud Size | M8 |
| MIDI or AMI Fuse Block | |
| Amperage Max. Operating (per block) | 280A† |
| Amperage Max. Operating (per circuit) | 170A† |
| Fuse Amperages Available | 30A–200A |
| Minimum Cable Size to Meet Ratings | 2/0 AWG (70 mm²) |
| Screw Size | M5 |
| ATO or ATC Fuse Block | |
| Amperage Max. Operating (per block) | 50A† |
| Amperage Max. Operating (per circuit) | 25A† |
| Fuse Amperages Available | 1A–30A |
| Screw Size | #8-32 |
