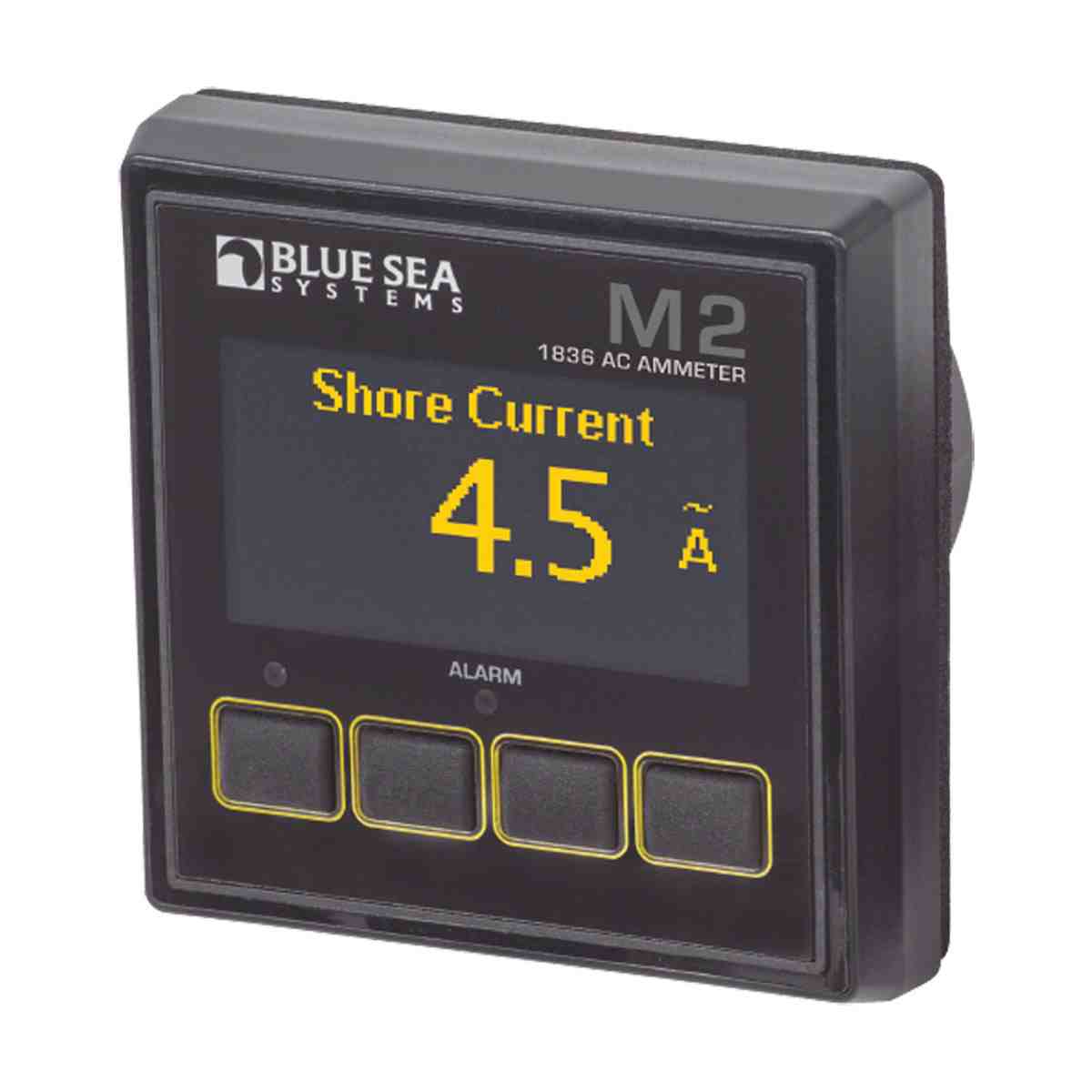

Blue Sea Systems M2 OLED Digital Meters

Variation:

SKU: GBS-1836

Description

The M2 organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and auto-dimming display. The M2 Monitor includes a MOSFET External Circuit Relay which can be used to control external circuits based on any value measured by the M2.

Features
• Auto-Dimming LED Display, 55x28mm
• 80dB alarm on all models
• Isolated 500mA MOSFET relay
• Includes external DC Shunt or AC current transformer when required
• Mounts in 54mm hole
• 82x82mm facia

Additional information

Variation:	BS-1830 – MONITOR STATE OF CHARGE DC, BS-1833 – MONITOR VOLTAGE DC, BS-1834 – MONITOR MULTIMETER DC, BS-1836 – MONITOR AMMETER AC

Dimensions

Weight	0.33 kg
Dimensions	13.9 × 20.5 × 7.7 cm

BLA Code

BS-1830

BS-1833

BS-1834

BS-1836

Description

SoC Monitor

Voltmeter

Multimeter

Ammeter

Functions

Monitors state-of-charge on one battery bank and voltage on three battery banks

Monitors the voltage on up to four batterynbanks

Monitors the voltage of three battery banks and the current on one circuit

Monitors current on two circuits

Voltage

Voltages

12V, 24V, 48V

–

Accuracy

0.01

–

Operating

7V–70V DC

Resolution

0.01V DC

–

Current

–

Shunt

1 x PN 8255 (500A/50mV)

–

1 x PN 8255 (500A/50mV)

1 x PN 8256 (150A/50mA)

Accuracy

0.01

–

0.01

0.02

Range

–500A to 500A

–

–500A to 500A

0A–150A (300A optional)

Resolution (100 to 150)

–

Resolution (0.0 to 99.9)

0.1A

–

0.1A

Power

Alarm/Relay Activation

High and Low Voltage, High Current, and Low Battery

High and Low Voltage

High and Low Voltage, High Current, and Low Battery

High Current
