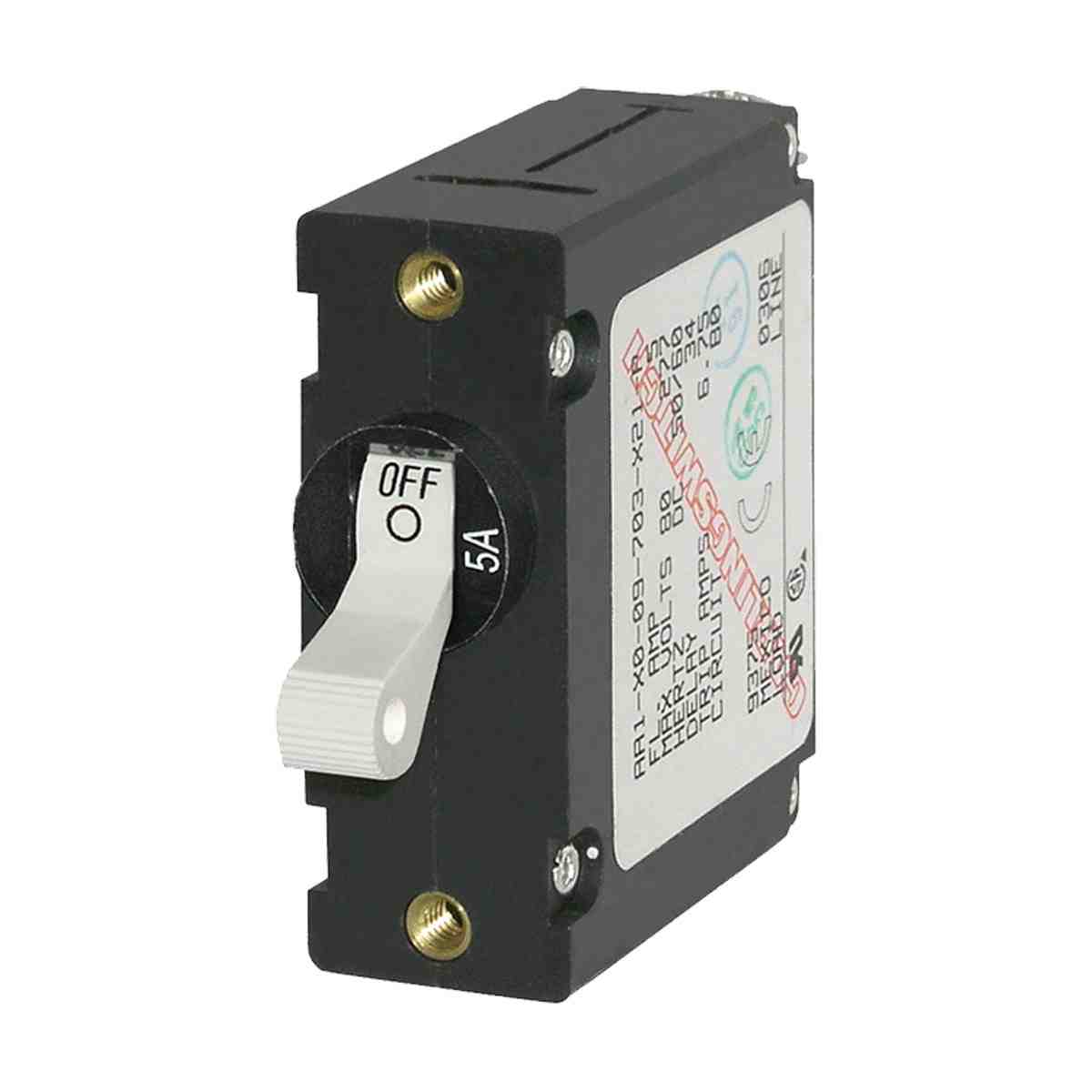

Blue Sea Systems A-Series Toggle Circuit Breakers

Blue Sea Systems A-Series Toggle Circuit Breakers

Price range: $39.83 through $94.64
SKU: GBS-7202

Description

Combines switching and circuit protection into a single device.
• The standard circuit breaker for Blue Sea Systems Traditional Metal Power Distribution Panels
• Single pole is frequently used for AC or DC Branch circuit protection
• Double pole is typically used for AC Main circuit protection
• Trip Free – cannot be held closed after trip

Specifications
• Voltage Nominal Operating 120/240V AC
• Operating Temperature -40-85˚ C
• Switching Cycles 1000 @ rated amps and volts
• Terminal Screw- #10-32

Additional information

Variation:

BS-7202 – 5A SINGLE POLE WHT, BS-7205 – 10A SINGLE POLE RED, BS-7206 – 10A SINGLE POLE WHT, BS-7208 – 15A SINGLE POLE BLK, BS-7210 – 15A SINGLE POLE WHT, BS-7212 – 20A SINGLE POLE BLK, BS-7213 – 20A SINGLE POLE RED, BS-7214 – 20A SINGLE POLE WHT, BS-7216 – 25A SINGLE POLE BLK, BS-7218 – 25A SINGLE POLE WHT, BS-7220 – 30A SINGLE POLE BLK, BS-7221 – 30A SINGLE POLE RED, BS-7222 – 30A SINGLE POLE WHT, BS-7224 – 40A SINGLE POLE BLK, BS-7226 – 40A SINGLE POLE WHT, BS-7228 – 50A SINGLE POLE BLK, BS-7229 – 50A SINGLE POLE RED, BS-7230 – 50A SINGLE POLE WHT, BS-7233 – 10A DOUBLE POLE WHT, BS-7242 – 50A DOUBLE POLE WHT, BS-7299 – 8A SINGLE POLE WHT

Dimensions
Weight0.07626 kg
Dimensions9.4 × 6.35 × 2.29 cm
BLA CodeColourAmpsPoleMax. DC Volts
BS-7202White5165
BS-7205Red10165
BS-7206White10165
BS-7208Black15132
BS-7210White15165
BS-7212Black20165
BS-7213Red20132
BS-7214White20165
BS-7216Black25165
BS-7218White25165
BS-7220Black30132
BS-7221Red30165
BS-7222White30165
BS-7224Black40165
BS-7226White40132
BS-7228Black50132
BS-7229Red50165
BS-7230White50132
BS-7299White8565
Double Pole Circuit Bre
BS-7233White10565
BS-7242White50565
