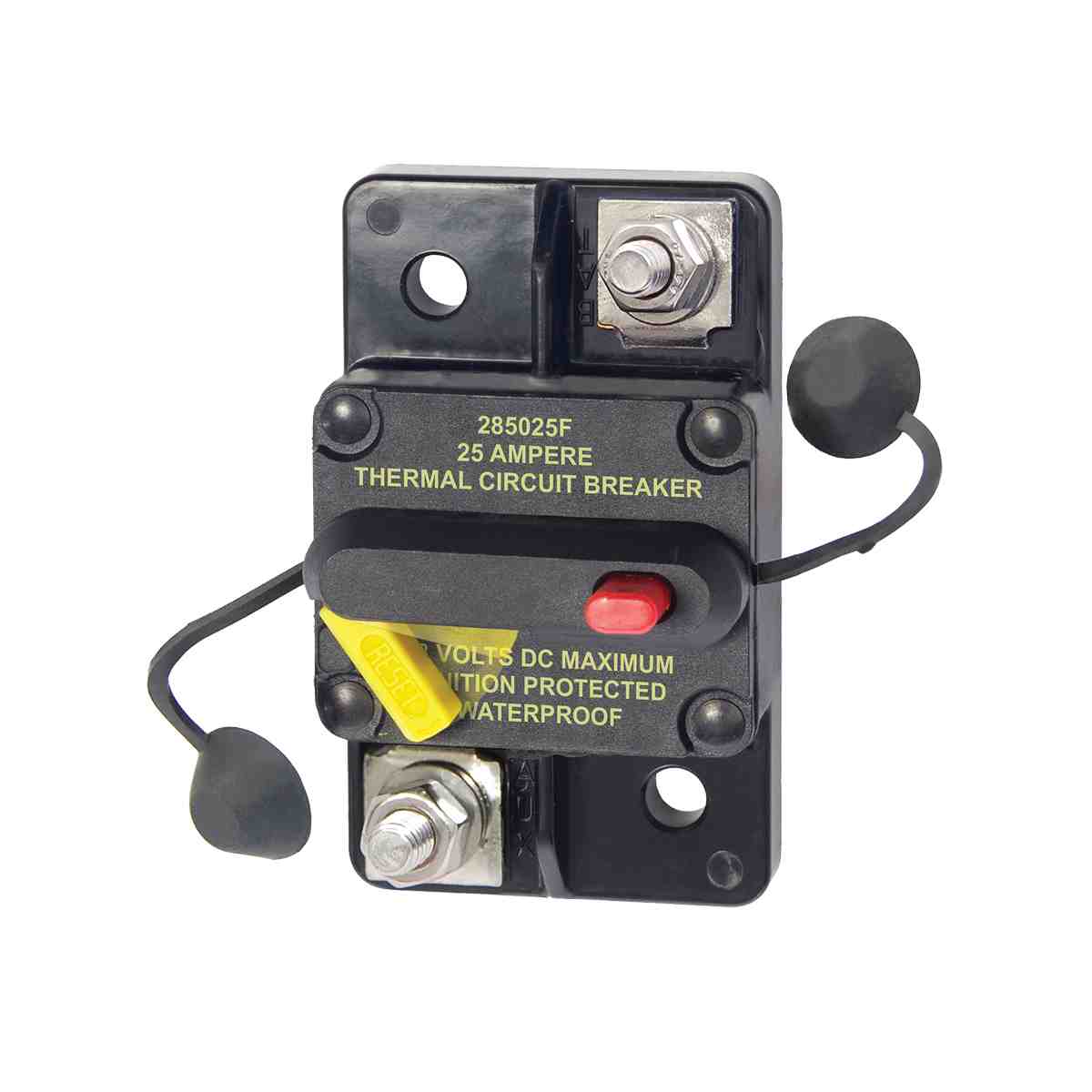

Blue Sea Systems 285 Series Circuit Breakers

Blue Sea Systems 285 Series Circuit Breakers

Price range: $103.53 through $119.18
SKU: GBS-7180

Description

Provides circuit protection for 25-150amp loads when switching and circuit protection are both required.

• Visible yellow reset lever shows open condition
• Trip-free design cannot be held closed after trip
• Drop in replacement for 185 Series Circuit Breakers
• 3,000A AIC for medium battery banks

Specifications
• Interrupting Capacity 3,000A @ 48V DC†
• Voltage Max. Operating 48V DC
• Temperature Min. Operating -40°C
• Temperature Max. Operating 85°C
• Type Thermal
• Class Type III – Switchable/Manual Reset – Trip Free
• Terminal Stud M6 (accepts 1/4″ Ring Terminal)
• Terminal Stud Torque 50 in-lb (7.9 Nm)
• Mounting Hole Accepts 1/4″ screw (M6)

Additional information

Variation:

BS-7080 – 285-SERIES 25A PANEL MOUNT, BS-7081 – 285-SERIES 30A PANEL MOUNT, BS-7082 – 285-SERIES 40A PANEL MOUNT, BS-7083 – 285-SERIES 50A PANEL MOUNT, BS-7084 – 285-SERIES 60A PANEL MOUNT, BS-7085 – 285-SERIES 70A PANEL MOUNT, BS-7086 – 285-SERIES 80A PANEL MOUNT, BS-7087 – 285-SERIES 100A PANEL MOUNT, BS-7088 – 285-SERIES 120A PANEL MOUNT, BS-7089 – 285-SERIES 150A PANEL MOUNT, BS-7180 – 285-SERIES 25A SURFACE MOUNT, BS-7181 – 285-SERIES 30A SURFACE MOUNT, BS-7182 – 285-SERIES 40A SURFACE MOUNT, BS-7182B – 285-SERIES BULK 40A SURFACE MOUNT, BS-7183 – 285-SERIES 50A SURFACE MOUNT, BS-7183B – 285-SERIES BULK 50A SURFACE MOUNT, BS-7184 – 285-SERIES 60A SURFACE MOUNT, BS-7184B – 285-SERIES BULK 60A SURFACE MOUNT, BS-7185 – 285-SERIES 70A SURFACE MOUNT, BS-7186 – 285-SERIES 80A SURFACE MOUNT, BS-7186B – 285-SERIES BULK 80A SURFACE MOUNT, BS-7187 – 285-SERIES 100A SURFACE MOUNT, BS-7187B – 285-SERIES BULK 100A SURFACE MOUNT, BS-7188 – 285-SERIES 120A SURFACE MOUNT, BS-7189 – 285-SERIES 150A SURFACE MOUNT

Dimensions
Weight0.15876 kg
Dimensions20.57 × 12.4 × 5.72 cm
BLA Code Surface MountBulk BLA Code Surface MountBLA Code Panel MountAmps
BS-7180BS-708025
BS-7181BS-708130
BS-7182BS-7182BBS-708240
BS-7183BS-7183BBS-708350
BS-7184BS-7184BBS-708460
BS-7185BS-708570
BS-7186BS-7186BBS-708680
BS-7187BS-7187BBS-7087100
BS-7188BS-7088120
BS-7189BS-7089150
