Description

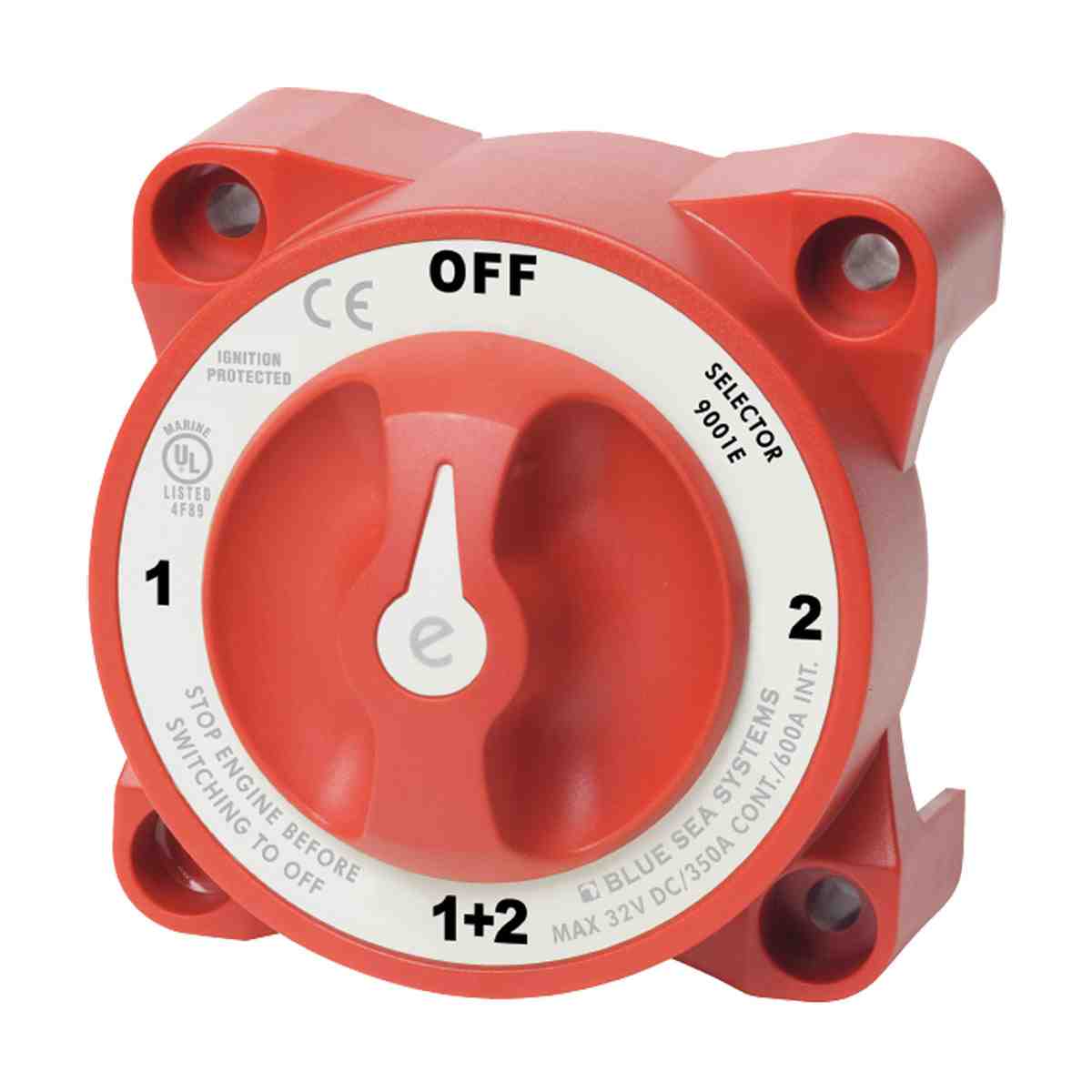

350 Amps continuous rated battery switches for simultaneously switching two isolated battery banks or circuits BS-5510E- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications BS-5511E(B)- Simultaneously switches two isolated battery banks or combines battery banks to all loads. CAN NOT be used to switch and positive conductors due to its combine feature.

Features
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG (120 mm²) battery cables
• Studs accept 3/8″ (M10) ring terminals
• Fits most Perko and Guest low amperage battery switch hole patterns

Accessories
BS-7920B Battery Switch Identification Label Set
