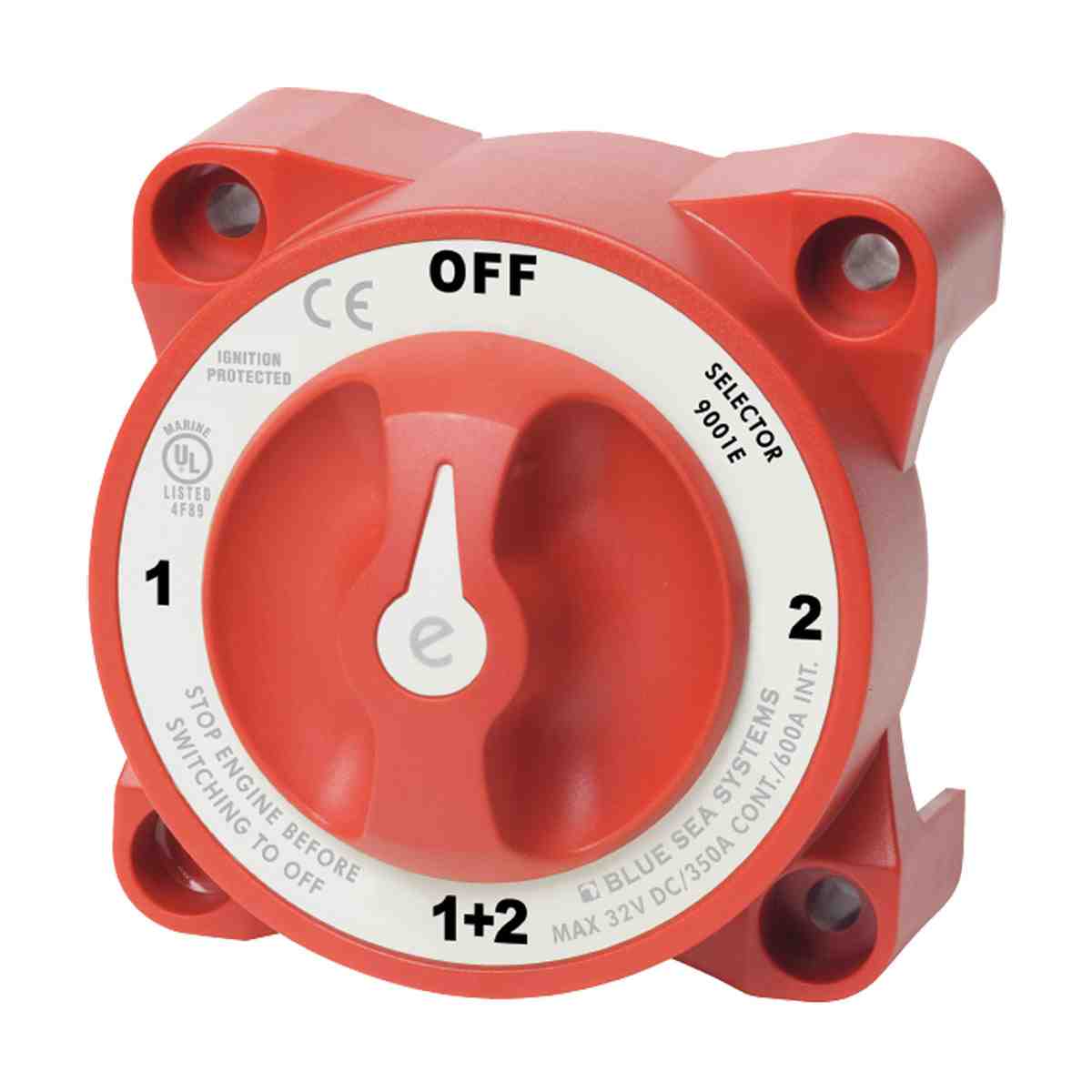

Blue Sea System E Series Battery Switch - Dual Circuit & Dual Circuit Plus

Blue Sea System E Series Battery Switch – Dual Circuit & Dual Circuit Plus

Price range: $89.40 through $148.33
SKU: GBS-9001E

Description

350 Amps continuous rated battery switches for simultaneously switching two isolated battery banks or circuits BS-5510E- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications BS-5511E(B)- Simultaneously switches two isolated battery banks or combines battery banks to all loads. CAN NOT be used to switch and positive conductors due to its combine feature.

Features
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG (120 mm²) battery cables
• Studs accept 3/8″ (M10) ring terminals
• Fits most Perko and Guest low amperage battery switch hole patterns

Accessories
BS-7920B Battery Switch Identification Label Set

Additional information

Variation:

BS-11001 – 3 POSITION WITH AFD, BS-5510E -, BS-5511E -, BS-5511EB – BULK, BS-9001E – 4 POSITION, BS-9001EB – BULK 4 POSITION, BS-9002E – 4 POSITION WITH AFD, BS-9003EB – BULK ON-OFF

Dimensions
Weight0.51 kg
Dimensions8.4 × 16.2 × 21.7 cm
BLA CodeBS-9001EBS-9002E––BS-11001BS-5510EBS-5511E
Bulk BLA CodeBS-9001EB–BS-9003EBBS-9004EBBS-5511EB
DescriptionSwitch Battery e SelectorSwitch Battery e Selector w/AFDSwitch Battery e ON/OFFSwitch Battery e ON/OFF w/AFDSelector 3 PositionDual Circuit™Dual Circuit Plus™
Cranking Rating: 30 sec.1200A1200A1200A1200A1200A700A700A
Intermittent Rating: 5 min.600A600A600A600A600A525A525A
Continuous Rating350A350A350A350A350A350A350A
Voltage Max. Operating32V DC32V DC48V DC48V DC48V DC32V DC32V DC
