BLA Twin Core Sheath Tinned Cable

BLA Twin Core Sheath Tinned Cable

Price range: $11.22 through $65.86
SKU: G116370

Description

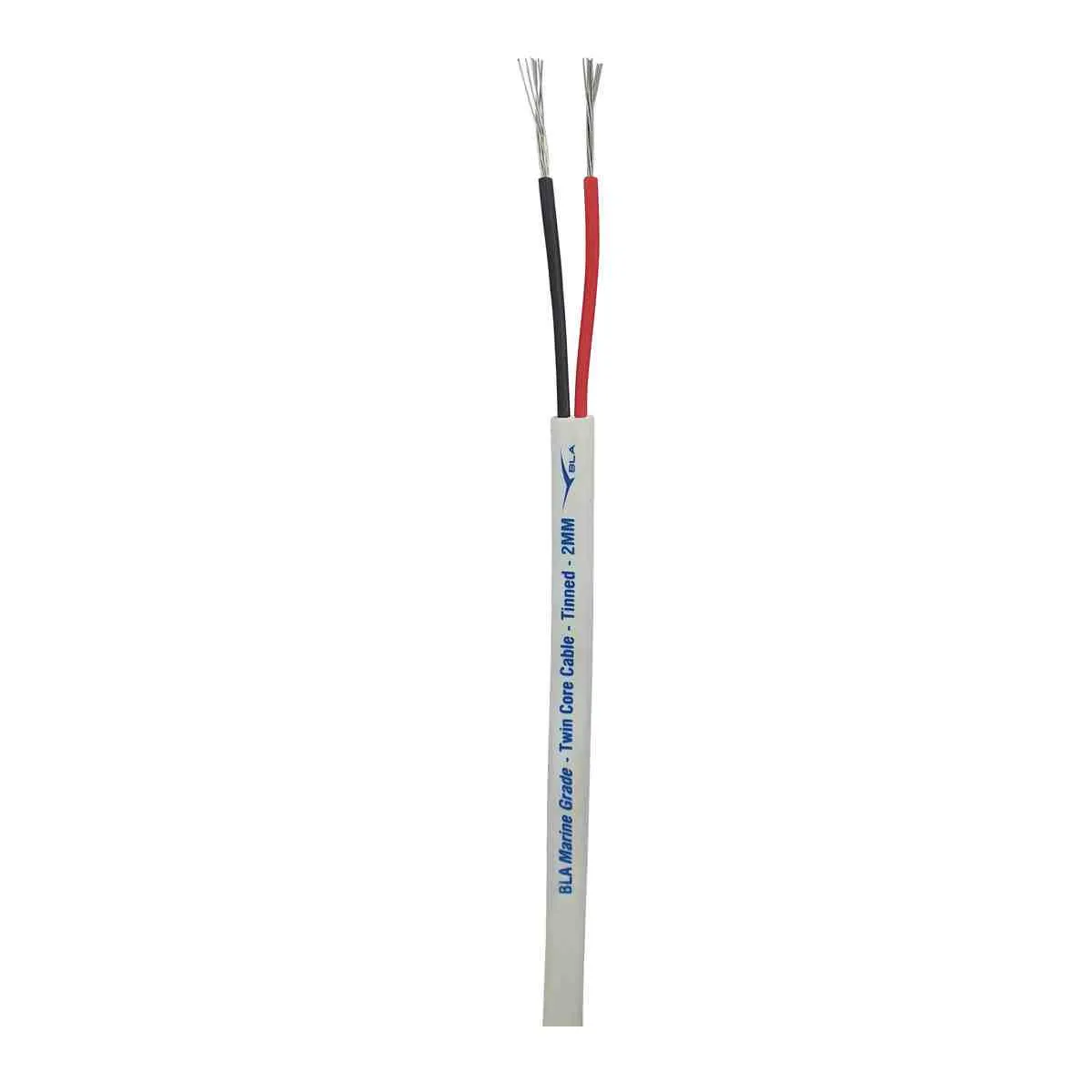

Marine quality, twin core low voltage wiring with external sheath for extra protection in vulnerable applications. V90 PVC insulation and sheath to AS/NZS 3808, tin coated copper wire conductor to AS/NZS 1125. Supplied in hanging retail packaging in convenient 10 metre lengths. Red/black core with white outer sheath, printed with sizing and metre marks.

Proudct Details:

Additional information

Variation:

116370 – 2MM X 10M, 116372 – 3MM X 10M, 116374 – 4MM X 10M, 116376 – 6MM X 10M

Dimensions
Weight0.38 kg
Dimensions16 × 20 × 4 cm
BLA CodeAuto Size mmNominal Area mm2Rating @30°C AmpInsulation Thickness mmO.D. mm
11637022×0.550.5/0.63.5×5.5
11637232×1.13100.5/0.63.7×6.0
11637442×1.85150.5/0.64.0×6.7
11637662×4.58500.5/0.65.7×9.6
